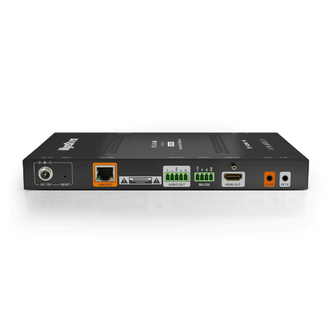

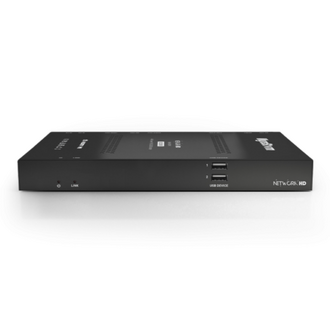

Wyrestorm NetworkHD 400 Series 4K AV over IP JPEG 2000 Decoder WY-NHD400RX $ 1299 $1,389.00
How to get it Learn More
Store Click & Collect - Available In Stock
Online In Stock
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

WyreStorm brings stunning 4K HDR video, 4K/2K auto-scaling, multi-channel audio and audio matrixing to IP with the NetworkHD 400 Series’ NHD-400-RX AVoIP decoder. Used in conjunction with a 400 Series encoder, the NHD-400-RX seamlessly handles mixed resolution sources, content and display devices for matrix and video wall functionality up to 16×16 with image rotation and bezel compensation.

Featuring incredibly low latency, the 400 Series is the ideal AV over IP solution for systems where high quality and low latency are key requirements, making it perfect for both residential and commercial applications.

4K UHD AND HDR SUPPORT

Delivering visually lossless 4K UHD content with HDR and HDCP 2.2 support ensures compatibility with the latest UHD video sources, while a built-in scaler ensures hassle-free mixing of the latest 4K displays and 1080p screens within an installation.

CUSTOM VIDEO WALL STYLES

Supporting traditional video walls, as well as customizable mosaic styles, perfect for building captivating & creative digital signage. JPEG2000 encoding ensuring distribution integrity and video latency of less than a single frame makes the 400 Series ideal for live environments.

POWERFUL ROUTING ENGINE

Boasting the ultimate in signal flexibility, the 400 Series can discretely deliver audio, infrared and USB streams separate to the video via a modular IP network. True signal breakaway can create custom assignments, desirable in both commercial and residential applications.

MULTICHANNEL AUDIO SUPPORT

Multichannel HDMI audio supporting formats such as Dolby Atmos and DTS-X and compatibility with AV receivers and audio processors offers an unlimited single-solution distribution option for home cinemas and dedicated home theatres.

Additional Features

  • Uses security protocols such as SSH, HTTPS and AES to encrypt data and prevent unauthorized access
  • Stunning visually lossless 4K UHD video with HDR over 1GbE / IP networks
  • Ultra-low end-to-end latency – only a single video frame (16ms at 60fps)
  • Multi-channel audio including DTS:X & Dolby ATMOS
  • Image scaling – use a mix of 4K & 1080p displays throughout an installation
  • Easy network set-up using standard Layer 2 or Layer 3 managed switches
  • Hugely scalable I/O, utilizing multicast technology
  • Live video unicast preview streams for use with NetworkHD Touch or a custom control UI
  • Powerful audio matrix functionality – route audio separately from video to any decoder
  • CEC One-Touch Play & Standby, bidirectional IR or RS-232 control of connected devices
  • Up to 16×16 video walls with image scaling, bezel compensation and rotation
  • Custom “No Source” idle image upload for branded down time
  • Support all SD, HD and UHD video formats – including interlaced content
  • Breakaway, independent routing of all video, audio, IR, USB and RS-232 streams
  • Infrared signal generation direct from an encoder or decoder – supports Hex IR format
  • Arbitrary CEC command generation – complete display control over the HDMI cable
  • Analog audio de-embed output with volume control
  • Batch firmware update and batch settings functions offers a massive reduction on installation times
  • Custom EDID management with import/export
  • HDCP 2.2 compliant
  • IEEE 802.3af PoE compliant PD
  • Includes optional DC power adapter and mounting brackets
  • Compatible with NHD-000-RACK4 rack mounting kit (brackets included with decoder)
Technical Specifications

AUDIO AND VIDEO
Inputs 1x 8-pin RJ-45 female (Transmission from TX)

Outputs 1x HDMI Out 19-pin type A
  1x Audio Out: 5-Pin Phoenix

Audio Formats 2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos

Output Video Encoding JPEG 2000

Encoding Data Rate Max: 850Mbps

End to End Latency (Max) 1 video frame latency (pass-through mode) 16ms @60fps 2 video frames latency (scaler/VW mode) 33ms @60fps

Video Resolutions (Max) 1920x1080p @60Hz 12bit 4:4:4/RGB
  3840x2160p @30Hz 12bit 4:2:2 HDR10 HLG
  3840x2160p @30Hz 8bit 4:4:4/RGB
  3840x2160p @60Hz 8bit 4:2:0

Supported Standards HDR10 | HLG | BT.2020 | BT.709 | 3D Video

Maximum Pixel Clock 300MHz

COMMUNICATION AND CONTROL
HDMI HDCP 2.2 | CEC

Ethernet 1x LAN (PoE): 8-pin RJ-45 ANSI/TIA-568 8P8C, 1000Base-T, PoE PD (IEEE 802.3af)

USB 2x USB Device: USB Type A | Power: 5v 500ma per port | Data Rate: Max 9MB/s

IR 1x IR TX: 3.5mm (1/8in) TS Mono | 1x IR RX: 3.5mm (1/8in) TRS Stereo | Bidirectional Over Ethernet

RS-232 1x RS-232: 4-pin Phoenix | 2 Way (RX only)

POWER
Power Supply 12V DC 1A

PoE IEEE 802.3af (15.4W at PSE)

Max Power Consumption 8W (with PSU)
