Adam Audio A4V Nearfield Monitor 2-way 4 Inch woofer Single Monitor Only 12105300 $ 799 $799.00
How to get it Learn More
Delivery Not Available
Order Special Order - Request Availability
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

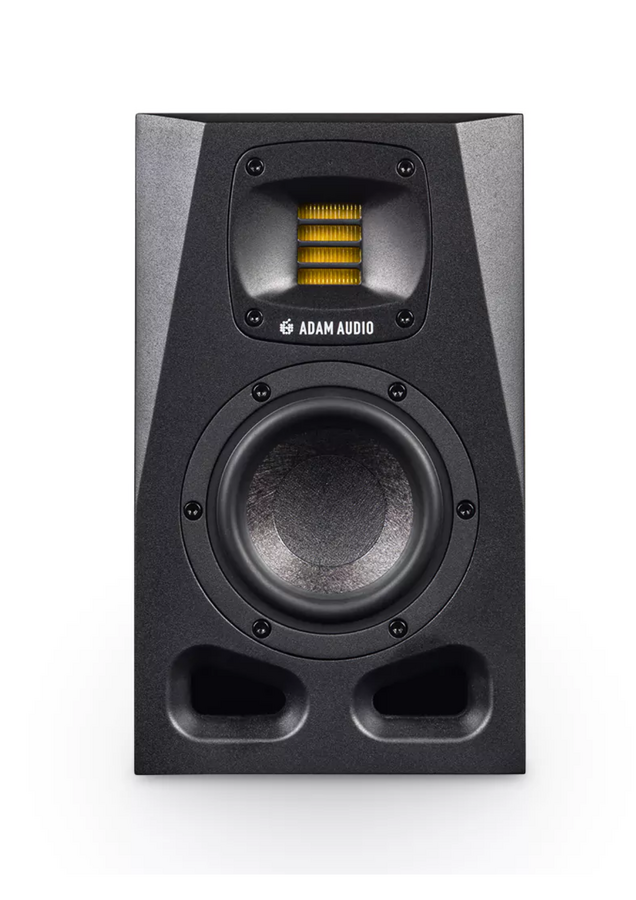

The A4V is a two-way speaker incorporating a 4-inch long-throw woofer made from the same Multi-Layer Mineral (MLM) fibers as other A Series speakers plus the classic X-ART tweeter. Onboard DSP-based tuning capabilities let you easily dial in the perfect sound for your space.

With a frequency range of 52 Hz to 45 kHz, the A4V can accommodate a broad spectrum of audio applications—from producing podcasts to mixing string quartets—and will fit well within immersive and 3D setups.

Visit manufacturers website for more information

Specifications

  • German Handmade Precision X-ART Tweeter with rotatable HPS waveguide
  • 4'' Woofer (Multi-Layer Mineral)
  • Cumulated Amp. Power Peak: 130 W
  • Frequency Response @ -6 dB: 52 Hz - 45 kHz
  • Maximum SPL per speaker at 1 m: 100 dB SPL

Features

  • Display: Front panel multi-color LED
  • Cabinet Design: Dual front ported
  • Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
  • Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)
  • Power consumption (max, idle, sleep): 220 W, 10 W, 3.5 W
  • AC Input Voltage: 100 – 240 V, 50/60 Hz
  • Power Rating: 300 W max.
  • Operating Conditions: -10° C to +40° C (+14° F to +104° F); <75 % RH, non-condensing
  • Weight: 5.8 kg (12 lbs 13 oz)
  • Dimensions (Height x Width x Depth): 268 mm x 158 mm x 220 mm (10 1/2″ x 6 1/4″ x 8 5/8“)
  • Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
  • Delivery Contents: A4V loudspeaker, power cable, Quick Start Guide
  • Analog: XLR, RCA
  • Input Impedance: 9 kOhm / 3.3 kOhm
  • Max. Input Level: +19 dBu
  • Woofer
    • Amplifier Type: PWM
    • Peak (10% THD, limiter deactivated): 110 W
    • RMS (1% THD, limiter deactivated): 90 W
  • Tweeter
    • Amplifier Type: Class A/B
    • Peak (10% THD, limiter deactivated): 20 W
    • RMS (1% THD, limiter deactivated): 15 W



  • Control Options [via Network]
    • Networking Connector: RJ45
    • Connection Type: Ethernet
    • Communication Protocol: OCA using standard IP data
    • Control Software: A Control (Windows and MacOS available)
    • Room Adaption Options: Backplate, Extended, Sonarworks SoundID Reference integration
    • Advanced Room Adaptation: 6 x PEQ, Level, Delay
    • Third-party Calibration Compatibility: Import from Sonarworks SoundID Reference

    Woofer

    • Basket Diameter: 4″
    • Voice Coil Diameter: 1″ (25 mm)
    • Cone Material: MLM
    Tweeter
    • Type: X-ART
    • Diaphragm Area: 4 inch² (2420 mm²)
    • Equivalent Diaphragm Diameter: 2″ (56 mm)
    • Velocity Transform Ratio: 4 to 1
    • Diaphragm Weight: 0.17 g
    • Waveguide: HPS (rotatable)
    • Waveguide Dispersion: 120° horizontal, 70° vertical



    Signal Processing
    • AD converter: 24-bit
    • Internal sample rate: 96 kHz
    • Delay range, resolution: 0 – 10 ms, 0.1 ms
    • Protection: Independent peak and thermo limiters for each driver, and amplifier thermo limiters

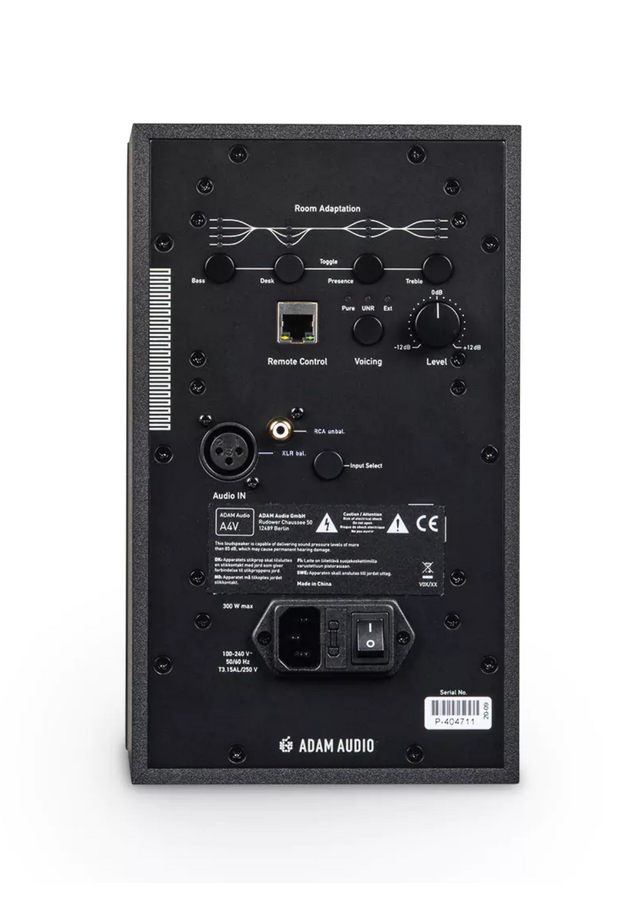

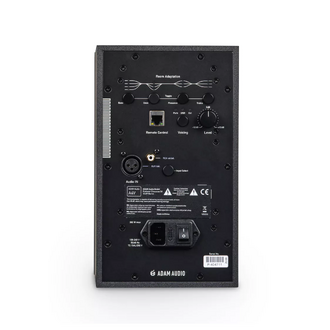

    Control Options [via Backplate]



    • Input Sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting
    • Level: -12 dB to +12 dB
    • Input Selection: Balanced, unbalanced
    • Voicings: Pure, UNR
    • Room Adaption:
      • Bass: +2, 0, -2, -4 dB
      • Desk: 0, -2, -4 dB
      • Presence: +1, 0, -1 dB
      • Treble: +1.5, 0, -1.5 dB
