Audio Technica 10 Series Camera Mount ATW-1701/L Wireless Lapel Mic System

ATW-1701/L

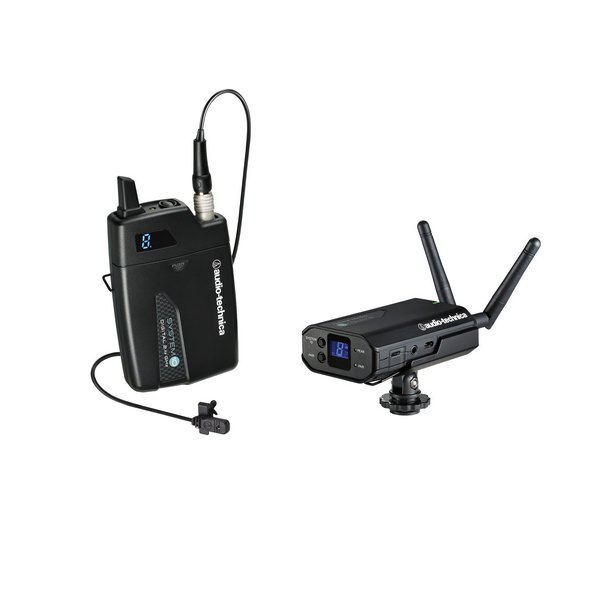

ATW-R1700 receiver and ATW-T1001 UniPak® transmitter with AT829CW omnidirectional lavalier microphone.

With its compact and portable design, the System 10 Camera-Mount high-fidelity digital wireless system is ideally positioned to capture media on the go. Perfect for video production, electronic news gathering (ENG) and every mobile application in between, the receiver features multiple mounting options to accommodate a variety of cameras and recording devices.

Like all of the products in the System 10 digital wireless family, the Camera Mount provides three levels of diversity assurance: frequency, time and space. Instantaneous channel selection, sync and setup make the Camera-Mount extremely easy to use, while its digital 24-bit/48 kHz wireless operation provides the ultimate in sound quality and dependable performance. Also, as the receiver operates in the 2.4 GHz range, it remains completely free from TV interference at all times.

Available in handheld, lavalier and body-pack configurations, each System 10 Camera-Mount wireless system includes a camera shoe mount in addition to the receiver and transmitter.

  Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
  Operates in the 2.4 GHz range – completely free from TV interference
  Ultra compact receiver size with multiple mounting options
  Selectable balanced and unbalanced output jacks with level control for use with most cameras and recording devices
  Internal rechargeable 12-hr battery
  Separate headphone port and volume control for local audio monitoring
  Multi-pairing function to link a single receiver with up to eight body-pack or handheld transmitters
  Three levels of diversity assurance: frequency, time & space
  Automatic frequency selection for seamless, interference-free operation
  Extremely easy operation with instantaneous channel selection, sync and setup

Specifications

Overall System Specifications
Operating Frequencies

2.4 GHz ISM band

Dynamic Range

>109 dB (A-weighted), typical

Total Harmonic Distortion

<0.05% typical

Operating Range

30 m (100′) radius, 60 m (200′) diameter typical
Open range environment with no interfering signals

Operating Temperature Range

0° C to +40° C (32° F to 104° F)
Battery performance may be reduced at very low temperatures

Frequency Response

20 Hz to 20 kHz
Depending on microphone type

Receiver Specifications
Receiving System

Diversity (frequency/time/space)

Maximum Output Level

3.5 mm, TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV

Power Supply

100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply

Battery

Internal Battery: 3.7V rechargeable Li-ion battery

Battery Life

12 hours
Depending on environmental conditions

Battery Charging Time: 4 hours 30 minutes
Depending on environmental conditions

Charging Temperature Range: 5° C to +35° C

Dimensions

56.0 mm W x 91.4 mm H x 27.8 mm D

Net Weight

105 grams

Accessories Included

Two antennas; camera shoe mount; AC adapter (USB-type); USB cable; 3.5 mm stereo cable

Body-Pack Transmitter Specifications
RF Power Output

10 mW

Spurious Emissions

Following federal and national regulations

Input Connections

Four-pin Locking Connector
Pin 1: GND, Pin 2: INST INPUT,
Pin 3: MIC INPUT, Pin 4: DC BIAS +9V

Batteries

Two 1.5V AA
not included

Battery Life

>7 hours (alkaline)
Depending on battery type and use pattern

Dimensions

70.2 mm W x 107.0 mm H x 24.9 mm D

Net Weight

100 grams
without batteries

Handheld Transmitter Specifications
RF Power Output

10 mW

Spurious Emissions

Following federal and national regulations

Batteries

Two 1.5V AA
not included

Battery Life

>7 hours (alkaline)
Depending on battery type and use pattern

Dimensions

254.8 mm long,
50.0 mm diameter

Net Weight

280 grams
without batteries

Accessory Included

AT8456a Quiet-Flexâ„¢ stand clamp

AT829CW - Cardioid Condenser Lavalier Microphone
Element

Fixed-charge back plate, permanently polarized condenser

Polar Pattern

Cardioid

Frequency Response

70-16,000 Hz

Open Circuit Sensitivity

-42.8 dBV (7.3mV) re 1V at 1 Pa

Signal to Noise Ratio

67.1 dBA, 1 kHz at 1 Pa

Weight

2.4g

Dimensions

24mm long, 10.5mm diameter

Cable

1.4 m long (permanently attached to microphone), terminated with HRS connector

Accessories

AT8131 foam windscreen; AT8434 clothing clip;
