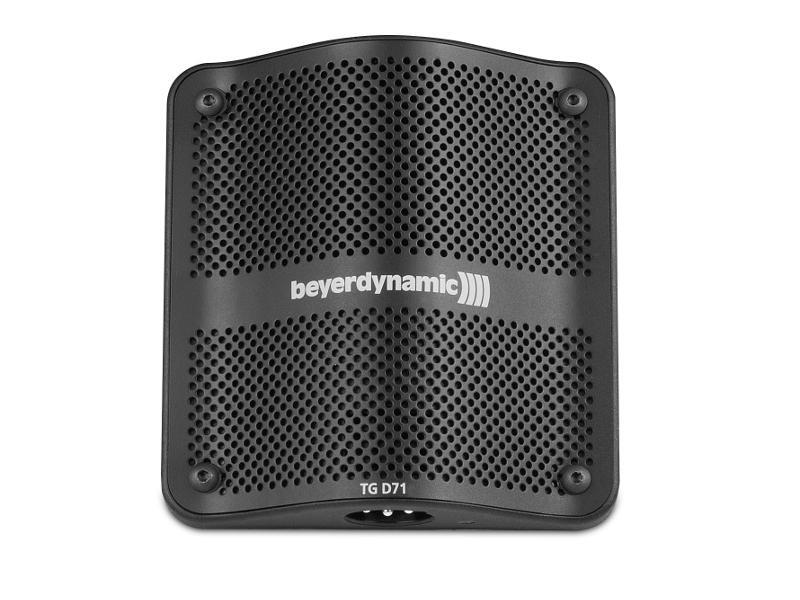

The newly compiled TG Drum Sets PRO L, is now available with the TG D71 boundary model microphone. The new TG D71 is a professional boundary microphone that works as a pressure gradient receiver and has a half-cardioid polar pattern.
The condenser capsule (back electret) transmits frequencies of 25 hertz to 20 kHz and can handle a max. sound pressure level (SPL) of 148 dB. A three-pin XLR connector is provided for transporting both the audio signal and the phantom power required for operation – the correct power supply is signalled via a red status LED.
At just 413 grams and in practical dimensions (90 x 86 x 27mm), the new beyerdynamic boundary microphone is not only perfectly suited for use in a bass drum, but also for various other applications.
This practical microphone packages meet both the needs of beginners and the discerning audio expectations of professional drummers alike; guarantee first-class results – on the stage and in the recording studio.

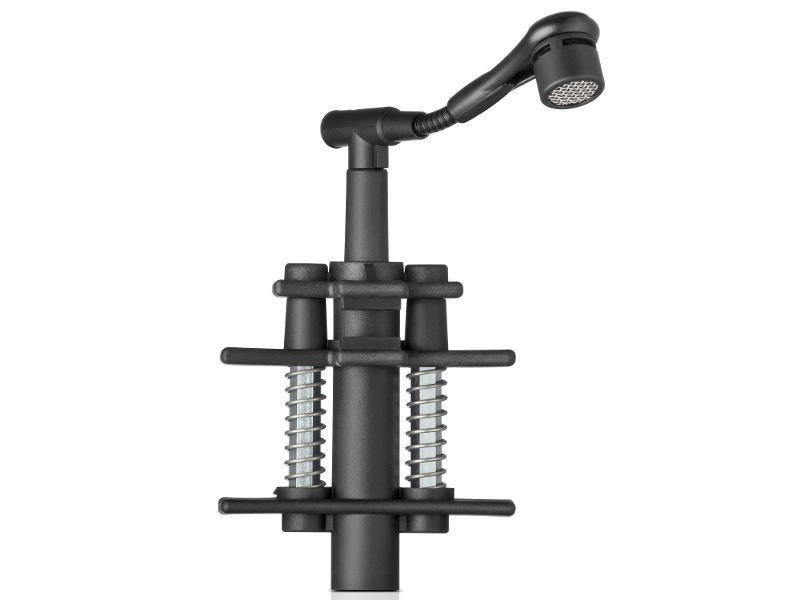

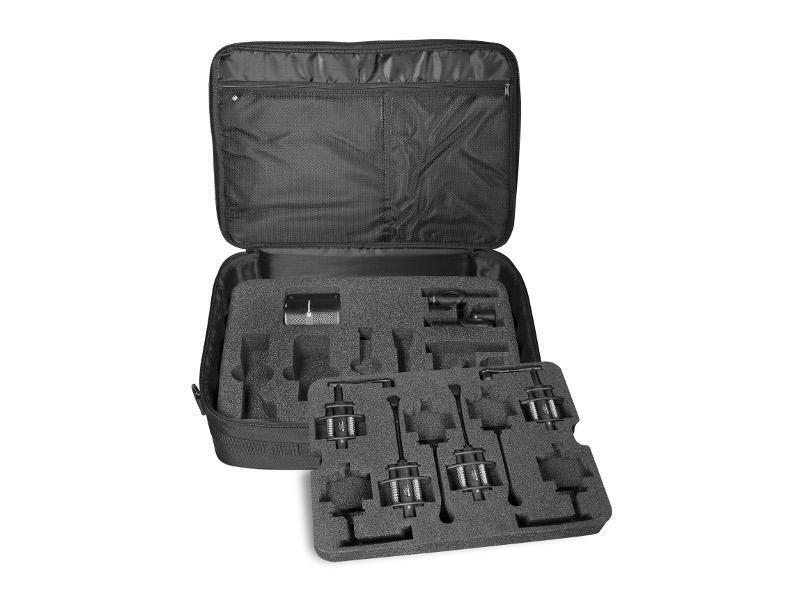

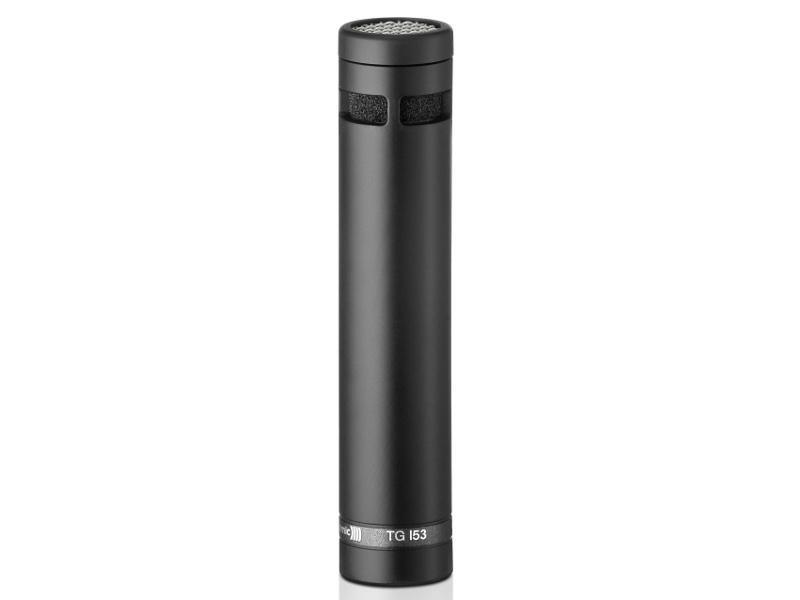

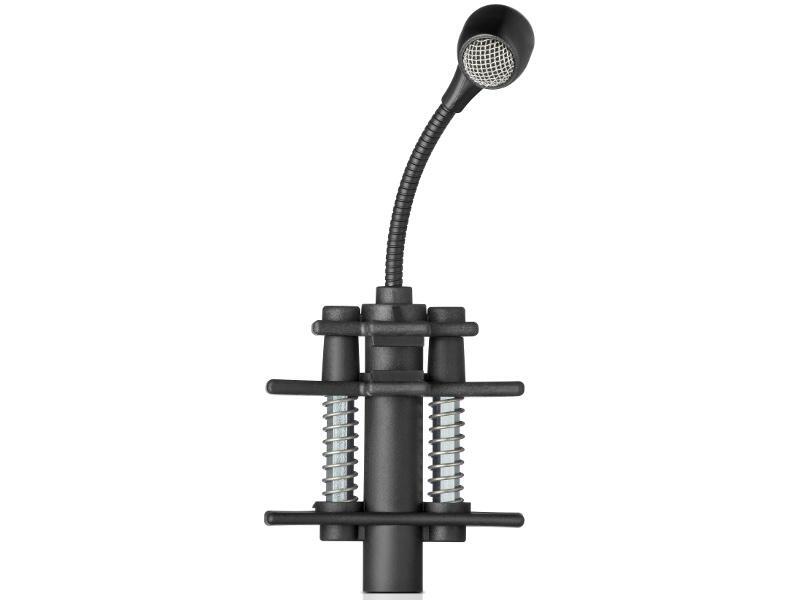

The TG Drum Sets PRO L comes with the following microphones: 2 x TG D57 – Condenser, flexible-gooseneck microphone ideal for miking toms & snare drums. 2 x TG D58 – Condenser, flexible-gooseneck microphone ideal for miking toms & snare drums. 1 x TG D71 - Condenser Boundary Microphone for miking bass drums. 2 x TG I53- Condenser Microphone for miking hi-hats &overheads. 1 x Soft durable carrying cases with protective moulded foam padding that has enough space for additional microphones
Transducer type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Dynamic Operating principle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Pressure gradient Polar pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cardioid Frequency response: Close miking (switch position LIN). . . . . . . . . . . . . . . . . . . 50 - 17,000 Hz Close miking (switch position EQ) . . . . . . . . . . . . . . . . . . . 20 - 15,000 Hz Distant miking (switch position LIN, measured at 1 m). . . . 80 - 17,000 Hz Open circuit voltage (switch positon LIN) . . . . . . . . . . . . . . 2.4 mV/Pa (-52.5 dBV) ±3 dB Open circuit voltage (switch positon EQ) . . . . . . . . . . . . . . 0.9 mV/Pa (-60.9 dBV) ±3 dB Nominal impedance (switch position LIN). . . . . . . . . . . . . . 600 Ω Nominal impedance (switch position EQ). . . . . . . . . . . . . . 200 Ω Load impedance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≥ 2 kΩ Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . XLR, 3-pin, male Dimensions: Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104 mm Shaft diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 mm Head diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 mm Weight: without clamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134 g with clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189 g
