Description

ACM200

Multicast Advanced Control Module for TCP/IP, RS-232 and IR Control of Blustream Multicast Systems with Web GUI.

Our UHD Multicast distribution platform allows distribution of HDMI video over a 1GB Network switch. The ACM200 Advanced Control Module allows for advanced third party control of the Multicast system using TCP/IP, RS-232 and IR.

The ACM200 includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of IR, RS-232, USB / KVM, Audio and Video.

Pre-built Blustream product drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.

Specifications

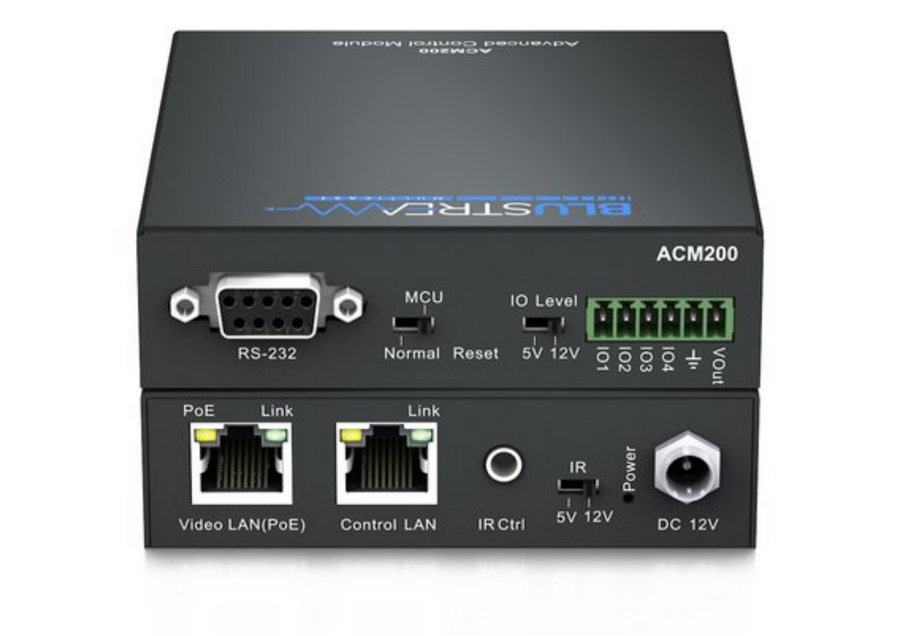

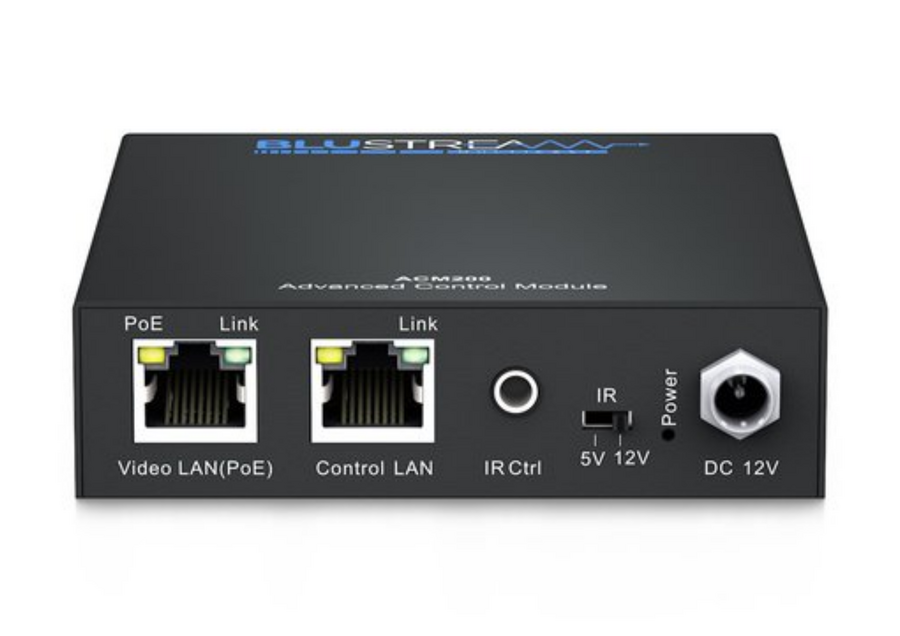

  • Ethernet Port: 2 x LAN RJ45 connector (1 x PoE support)

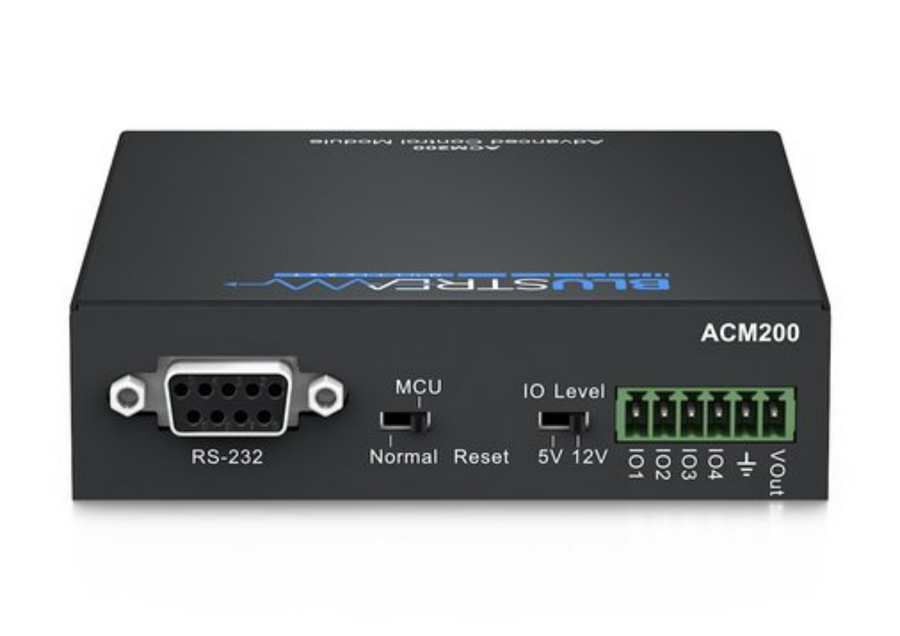

  • RS-232 Serial Port: 1 x DB-9 female

  • RS-232 & I/O Port: 1 x 6-Pin Phoenix connector

  • IR Input Ports: 1 x 3.5mm stereo jack

  • PoE draw: 4.0W (typical), 4.5W (max load)

  • Dimensions (W x D x H ): 96mm x 110mm x 26mm

  • Shipping Weight: 0.6kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

Features

    Web interface module for configuration and control of the Blustream Multicast system

    Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status

    Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video

    Auto system configuration

    2 x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:

       - Better system performance as network traffic is separated

       - No advanced network setup required

       - Independent IP address per LAN connection

       - Allows simplified TCP/IP control of Multicast system

    RS-232 integration for control of Multicast system

    IR integration for control of Multicast system

    Video wall control functionality for up to a maximum of 9 x 9 array

    PoE (Power over Ethernet) to power Blustream product from a PoE switch

    Local 12V/2A power supply (optional) should Ethernet switch not support PoE (PSU not supplied)

    Support for iOS and Android App control

    3rd Party drivers available for major control brands
