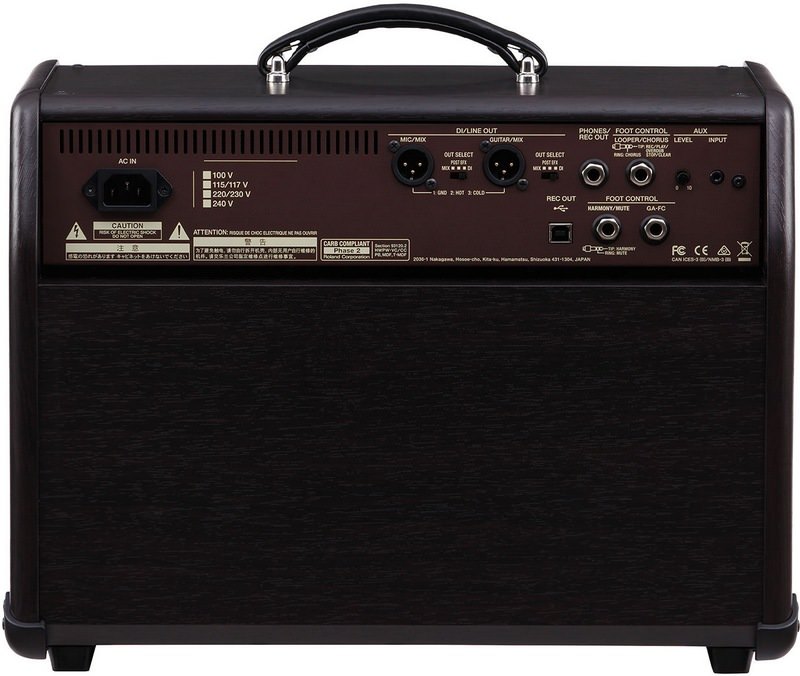

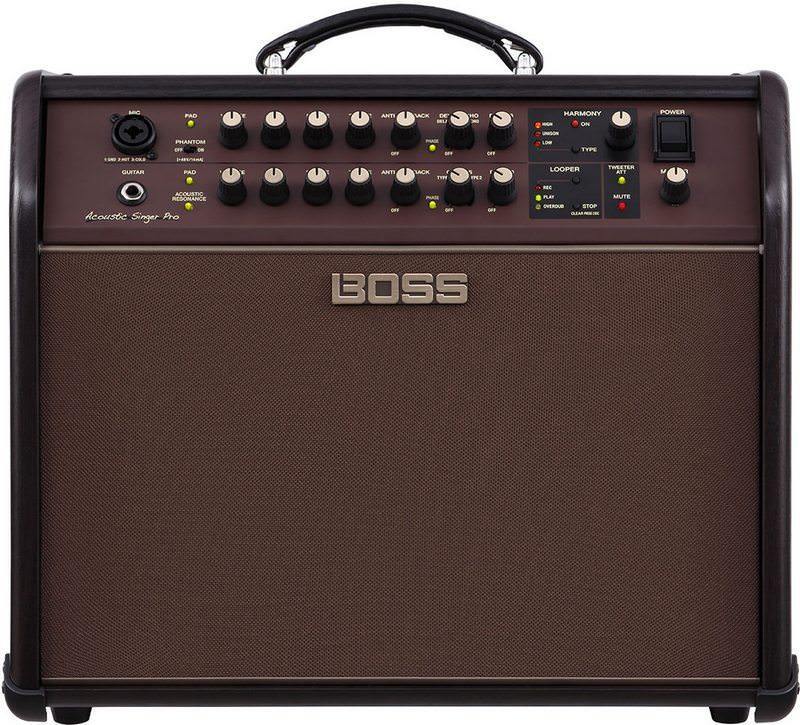

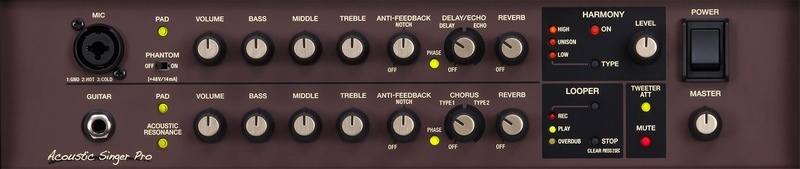

Rated Power Output 120 W (Woofer: 100 W, Tweeter: 20 W) Nominal Input Level MIC INPUT: -33 dBu (2.5 k ohms) GUITAR INPUT: -10 dBu (5 M ohms) AUX INPUT: -8 dBu (10 k ohms) Speaker 20 cm (8 inches) Woofer x 1, 2.5 cm (1 inch) Dome Tweeter x 1 Controls POWER switch MASTER knob TWEETER ATT button MUTE button [MIC] PAD button PHANTOM switch VOLUME knob BASS knob MIDDLE knob TREBLE knob ANTI-FEEDBACK knob PHASE button DELAY/ECHO knob REVERB knob [GUITAR] PAD button ACOUSTIC RESONANCE button VOLUME knob BASS knob MIDDLE knob TREBLE knob ANTI-FEEDBACK knob PHASE button CHORUS knob REVERB knob [HARMONY] ON button TYPE button LEVEL knob [LOOPER] LOOPER button STOP/CLEAR button [AUX] LEVEL knob [DI/LINE OUT] MIC/MIX: OUT SELECT switch GUITAR/MIX: OUT SELECT switch Indicators TWEETER ATT MUTE [MIC] PAD PHASE [GUITAR] PAD ACOUSTIC RESONANCE PAHSE [HARMONY] ON HIGH UNISON LOW [LOOPER] REC PLAY OVERDUB Connectors MIC jack: Combo type (XLR, 1/4-inch TRS phone type) GUITAR jack: 1/4-inch phone type AUX IN jack: Stereo miniature phone type PHONES/REC OUT jack: Stereo 1/4-inch phone type DI/LINE OUT MIC/MIX jack: XLR type DI/LINE OUT GUITAR/MIX jack: XLR type FOOT CONTROL LOOPER/CHORUS jack: 1/4-inch TRS phone type FOOT CONTROL HARMONY/MUTE jack: 1/4-inch TRS phone type GA-FC jack: 1/4-inch TRS phone type USB port: USB B type AC IN jack Power Consumption 50 W Accessories Owner's manual Power cord GA-FC sticker Options (sold separately) Footswitch: FS-5L, FS-6, FS-7 Expression pedal: FV-500L、FV-500H、Roland EV-5 GA FOOT CONTROLLER: Roland GA-FC Size and Weight Width 417 mm 16-7/16 inches Depth 330 mm 13 inches Height 358 mm 14-1/8 inches Weight 14.5 kg 32 lbs oz * 0 dBu = 0.775 Vrms
