Create and Perform in the Moment

Introducing the ME-90B, a free-flowing ME processor filled with pro performance tools for bassists. Extend your creative range with 61 effects optimized for bass. Shape your core tone with 10 bass preamps crafted with our latest AIRD technology. Connect to stage amps, house PA systems, and computers. And with the hands-on interface, expression pedal, and direct-access footswitches, you can create and perform in the moment with nothing to slow you down.

Standard Features

•     All-in-one bass processor with premium BOSS amps and effects
•     Easy stompbox-style sound creation with an intuitive knob-based interface
•     Superior sound quality with 24-bit AD and 32-bit DA conversion, 32-bit floating-point processing, and 48 kHz sampling rate
•     61 effects from the BOSS bass effects library
•     Ten onboard AIRD preamp models including newly developed types
•     Dedicated preamp section plus six simultaneous effect categories with multiple types to choose from
•     Edit parameters, swap out preamp and effect types, and more with BOSS Tone Studio
•     Eight multi-function footswitches and an expression pedal with toe switch
•     36 ready-to-play preset memories and 36 user memories for storing custom setups
•     Manual mode for pedalboard-style operation and Memory mode for switching complete setups
•     Blend knob for mixing in the direct bass sound
•     Stereo 1/4-inch outputs and mono XLR balanced output with ground lift switch
•     Rear-panel switch to optimize the 1/4-inch audio outputs for a bass amp or full-range sound system
•     Send/return loop for external pedals
•     Light, durable design and colorful status LEDs
•     Load up to three user speaker IRs

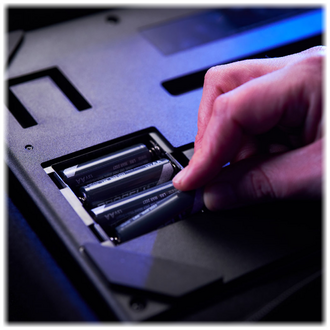

•     Powered via four AA batteries or optional AC adaptor
•     USB-C® connector for communicating with BOSS Tone Studio and audio recording/playback with music production software
•     Download and share ME-90B Livesets on BOSS Tone Exchange
•     Optional Bluetooth® Audio MIDI Dual Adaptor allows you to edit sounds and stream audio from an iOS or Android mobile device

Effortless Creative Control

The ME-90B delivers everything a performing bassist needs, accessed via the classic BOSS ME interface for fast stompbox-style operation. Each effect category features independent parameter knobs, allowing you to tweak tones instantly. Manual mode provides on/off footswitch control of each category, while Memory mode lets you call up 36 custom multi-effect setups. Every footswitch has a different LED color for easy identification, and it’s possible to set all LEDs to light in a fixed color for each mode if desired.

Premium BOSS Effects

The ME-90B comes stocked with premium selections from the BOSS bass effects library, organized into six logical sections that can be used simultaneously. Apply essential tone shapers like compressors, pitch effects, and filters. Explore more aggressive textures with drive and synth effects. Expand your sound with modulation, delays, and reverbs. And dive into a variety of dedicated effects for the onboard expression pedal. There’s also a Blend knob to mix in some direct bass sound for clarity, plus a send/return loop to patch in your favorite stompbox effects.

Solid Bass Tone

A strong fundamental sound is the foundation of any great bass rig. The ME-90B’s Preamp/EQ section features ten inspiring preamp types backed by advanced AIRD technology, complete with gain and EQ controls for rapid sound adjustment. Express your individual voice with BOSS originals like Natural and Drive Bass. Or call up authentic models of classic bass amplifiers from vintage to modern. There’s also an Acoustic type optimized for acoustic-electric and upright bass pickups, plus an EQ-only option for clean DI tones.

Perform, Practice, and Record

With its versatile connectivity and compact, battery-powered design, the ME-90B is ready for every playing scenario. The 1/4-inch outputs support mono or stereo operation, with quick optimization for stage amps or line-level devices via a rear-panel switch. There’s also an XLR jack with a ground lift for sending a balanced DI signal to a house PA. The ME-90B’s preamps and effects provide studio-quality sound for direct USB recording in music production software. And with the headphones jack, you can quietly hone your chops while jamming with backing tracks from a computer over USB.

Edit, Customize, and Expand

BOSS Tone Studio for Windows and macOS extends your creative range with the ability to edit tones and change out some preamp and effect types with alternate selections. You can also organize memories for different gigs and supplement the onboard speaker IRs with three from your own library. When you’re ready for fresh inspiration, log onto BOSS Tone Exchange to swap Livesets with the worldwide ME-90B community. And with the optional Bluetooth® Audio MIDI Dual Adaptor, you can stream music from a mobile device and wirelessly shape tones using the BTS editor app for iOS and Android.

Specifications

Sampling Frequency
    48 kHz

AD Conversion
    24 bits + AF method
    AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD converters.

DA Conversion
    32 bits

Processing
    32-bit floating point

Effects
    93 Types

Memories
    36 (User) + 36 (Preset)

Phrase Loop
    38 sec. (MONO)

Internal Tuning Detection Accuracy
    ±0.1 cent

Nominal Input Level
    INPUT: -10 dBu
    RETURN: -10 dBu

Maximum Input Level
    INPUT: +7 dBu
    RETURN: + 7dBu

Input Impedance
    INPUT: 1 M ohm
    RETURN: 1 M ohm

Nominal Output Level
    OUTPUT L/MONO､R: -10 dBu
    PHONES: -10 dBu
    SEND: -10 dBu
    BALANCED OUTPUT: -10 dBu

Output Impedance
    OUTPUT L/MONO, R: 1 k ohm
    PHONES: 44 ohms
    SEND: 1 k ohm
    BALANCED OUTPUT: 600 ohms

Recommended Load Impedance
    OUTPUT L/MONO, R: 10 k ohms or greater
    PHONES: 44 ohms or greater
    SEND: 10 k ohms or greater
    BALANCED OUTPUT: 600 ohms or greater

Controls
    BANK▼/AMP/EQ switch, BANK▲/MOD switch, CTL/BLEND switch,
    MEMORY/MANUAL switch, 1/COMP switch, 2/FILTER switch,
    3/DRV/SYN switch, 4/DLY/REV switch, PEDAL FX switch,
    GND LIFT switch, AMP/LINE switch, POWER switch,

    EXIT button, WRITE button, CTL button, EDIT button,

    PREAMP TYPE knob, BASS knob, MIDDLE knob, TREBLE knob, GAIN knob, LEVEL knob,
    MOD TYPE knob, TYPE knob, RATE/TIME knob, DEPTH/DUTY/FB knob, E.LEV/RESO knob,
    BLEND knob,
    COMP/FX1 TYPE knob, SUSTAIN/LOW/-1OCT knob, ATTACK/HIGH/-2OCT knob, LEVEL/DIRECT knob,
    FILTER/FX2 TYPE knob, SENS/RATE/KEY knob, TONE/DEPTH/HRM knob, PEAK/LEVEL/RESO knob,
    DRIVE/SYNTH TYPE knob, DRIVE knob, TONE knob, LEVEL knob,
    DLY/REV TYPE knob, TIME knob, FEEDBACK/TONE knob, E.LEVEL knob, OUTPUT LEVEL knob, PEDAL FX TYPE knob

    PEDAL FX pedal

Display
    7 segments, 2 characters (LED)
    Tuning guides (LED)

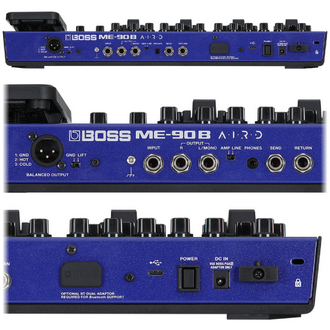

Connectors
    INPUT jack, OUTPUT (L/MONO, R) jacks, SEND jack, RETURN jack: 1/4-inch phone type
    BALANCED OUTPUT jack: XLR type
    PHONES jack: Stereo miniature phone type
    USB COMPUTER port: USB Type-C(R)
    Bluetooth ADAPTOR connector: Dedicated connector
    DC IN jack

Power Supply
    Alkaline battery (AA, LR6) x 4
    or
    AC adaptor

Current Draw
    195 mA

Expected battery life under continuous use
    Alkaline battery: Approximately 6 hours
    * This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.

Accessories
    STARTUP GUIDE
    Alkaline battery (AA, LR6) x 4
    Leaflet "USING THE UNIT SAFELY"

Options (sold separately)
    AC adaptor: PSA-S series
    Bluetooth(R) Audio MIDI Dual Adaptor: BT-DUAL
    Carry Bag: CB-ME80,CB-BU10

Size and Weight

Width
    443 mm
    17-1/2 inches
Depth
    220 mm
    8-11/16 inches
Height
    67 mm
    2-11/16 inches
Maximum Height
    93 mm
    3-11/16 inches
Weight(including battery)
    2.9 kg
    6 lb 7 oz

Visit manufacturers website for more information
