SKU: MS3
UPC: 4957054511357
Linked to MusiPos
RRP: $799
2 - Primary Warehouse
0 - Secondary Warehouse
Chat to us or call 5444 8889
Find out more

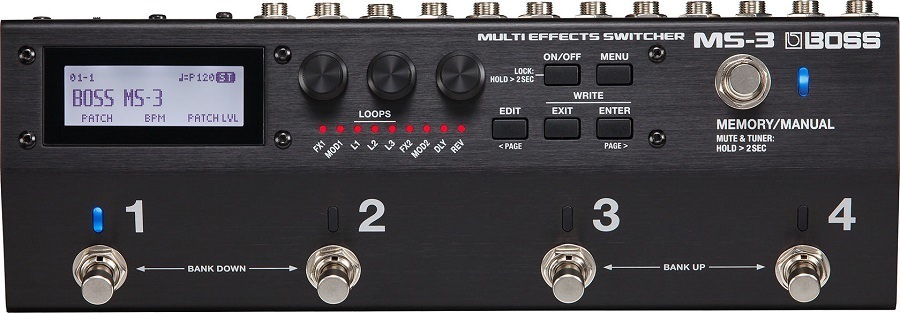

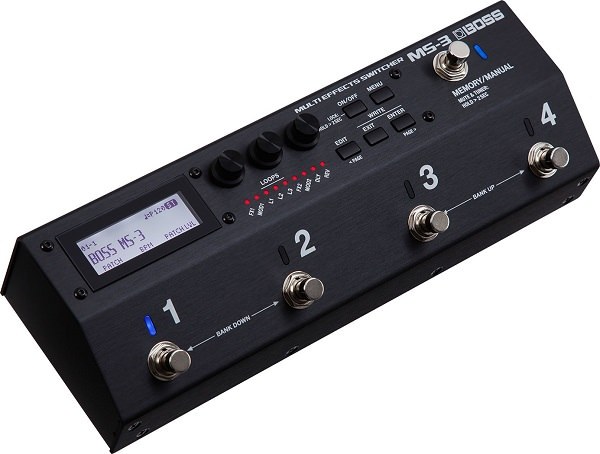

The MS-3 Multi Effects Switcher is a new-concept pedalboard solution that maximizes your creative options by combining a world-class multi-effects engine and multi-pedal switcher in one small, dedicated unit. Now, anyone can put together a professional effects system that’s incredibly compact, extremely light, and versatile enough to achieve nearly any sound imaginable. The MS-3 is a sonic powerhouse capable of running six internal pedal effects at once while seamlessly integrating three of your favorite external pedals. It also offers deep rig control capabilities, allowing you to switch amp channels, adjust effects in real time, work with MIDI devices, and more. With the MS-3, it’s easy to create a portable board or fly rig without the compromises associated with traditional loop switchers and all-in-one multi-effects units.
The MS-3’s highly flexible design gives you the freedom to create any kind of effects system, from simple to complex. It can serve as a general-purpose effects unit to augment core tone from three stompboxes, or function as the central hub of an advanced hybrid rig with MIDI gear and channel-switching amps. It even works as a standalone effects processor, making it perfect for fly dates and other times you need to travel light. And if you’re just starting out, the MS-3 provides a solid effects foundation that can be expanded as your experience grows.
Via the MS-3’s audio loops, you can connect three different effects devices to the system. You’ll probably want to hook up your favorite drive and booster pedals to the loops, but you can use any effects you like. Once your pedals are connected, you’re able to switch the loops on/off individually, and position the MS-3’s onboard effects around them any way you want.
To complement the three external loops, the MS-3 is equipped 112 effects types to choose from. They’re organized in six categories, which are available simultaneously: FX1, FX2, Mod1, Mod2, Delay, and Reverb. FX1 and FX2 contain many different types, from overdrives and distortions to compressors, pitch shifters, Slow Gear, and many others. Mod1 and Mod2 offer the famous BOSS chorus and vibrato effects, plus tremolo, flanger, phaser, and more. All the effects are fantastic for guitar, and there’s also a large selection specially optimized for bass.
The MS-3 is packed with decades of BOSS compact pedal and multi-effects know-how, and offers an ultra-efficient design that lets you dial in inspiring sounds right away. There’s a backlit LCD that clearly shows patch/bank numbers and parameters, plus quick-access knobs for editing and status indicators for all loops and effects. And with 200 patch locations, you have ample memory for storing effects and control setups for instant recall.
The MS-3’s heavy-duty footswitches give you easy command of the entire system. In Memory mode, the footswitches allow you to select patches and banks. Changing to Manual mode lets you switch loops and effects on/off, and even control multiple effects parameters for intense real-time expression. Your Manual mode assignments can be stored in patches, letting you create dynamic custom setups for different songs and styles.
Going well beyond the basics, the MS-3 provides tons of options for expanded control. You’re able to connect external footswitches for tap tempo, effects on/off, and parameter adjustment, plus expression pedals for volume, wah, pitch shift, and more. Control out jacks are available for switching amp channels and controlling effects that support external input. And there’s even MIDI for sending tempo, PC, and CC information to MIDI-enabled pedals, whether they’re connected to loops or not. In addition, the MS-3’s two audio outputs can be set for full stereo or selectable mono operation per patch, providing great flexibility with dual amp rigs.
The MS-3 supports USB for accessing the free MS-3 Editor/Librarian software on a Mac or Windows computer. This lets you edit effects, assign control parameters, set tempos, and more via a convenient graphic interface. You can also back up and restore individual patches, and organize groups of patches into Live Sets for various gigs.
Modes Memory mode/Manual mode
Loops 3
AD Conversion 24 bits + AF method AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
DA Conversion 24 bits
Sampling Frequency 44.1 kHz
Effects 112 types
Patches 200
Nominal Input Level INPUT: -10 dBu LOOPS L1--3 RETURN: -10 dBu
Maximum Input Level INPUT: +7 dBu LOOPS L1--3 RETURN: +7 dBu
Input Impedance INPUT: 1 M ohms
Nominal Output Level OUTPUT L/MONO, R: -10 dBu LOOPS L1--3 SEND: -10 dBu
Output Impedance OUTPUT L/MONO, R: 1 k ohms
Recommended Load Impedance OUTPUT L/MONO, R: 10 k ohms or greater LOOPS 1--3 SEND: 10 k ohms or greater
Controls Number switches 1--4, MEMORY/MANUAL switch ON/OFF button, MENU button, EDIT button, EXIT button, ENTER button 1--3 knobs POWER switch
Display Graphic LCD (132 x 32 dots, backlit LCD)
Indicator Number indicators 1--4, MEMORY/MANUAL indicator On/Off indicators (FX1, MOD1, L1--3, FX2, MOD2, DLY, REV)

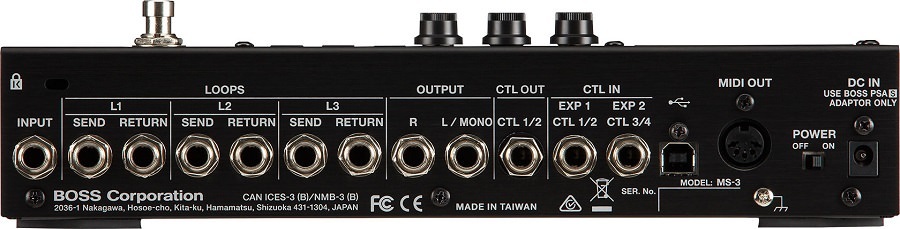

Connectors INPUT jack: 1/4-inch phone type LOOPS L1--3 SEND jacks: 1/4-inch phone type LOOPS L1--3 RETURN jacks: 1/4-inch phone type OUTPUT (L/MONO, R) jacks: 1/4-inch phone type CTL OUT CTL1/2 jack: 1/4-inch TRS phone type CTL IN EXP1 CTL1/2 jack, CTL IN EXP2 CTL3/4 jack: 1/4-inch TRS phone type USB COMPUTER port: USB type B MIDI OUT connector DC IN jack
Power Supply AC adaptor
Current Draw 280 mA
Accessories AC adaptor Rubber feet x 4 Owner's manual Leaflet "USING THE UNIT SAFELY"
Options (sold separately) Footswitch: FS-5U, FS-5L, FS-6, FS-7 Expression pedal: EV-30, FV-500L, FV-500H, Roland EV-5
SIZE AND WEIGHT
Width 246 mm 9-11/16 inches
Depth 97 mm 3-7/8 inches
Height 68 mm 2-11/16 inches
Weight 1.1 kg 2 lbs 7 oz
* 0 dBu = 0.775 Vrms
