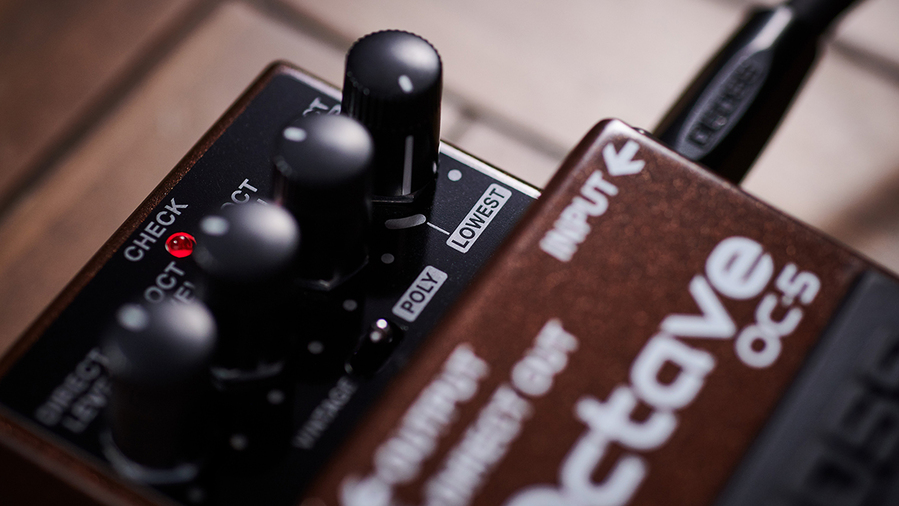

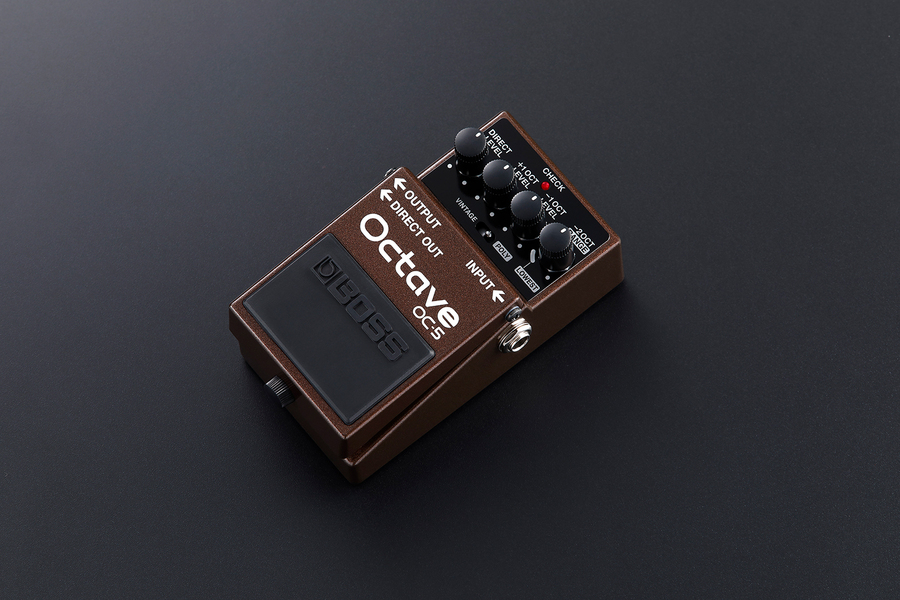

Boss OC-5 Octave Pedal OC5 $ 259 $289.00
How to get it Learn More
Store Click & Collect - Available In Stock
Online In Stock - From Supplier
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

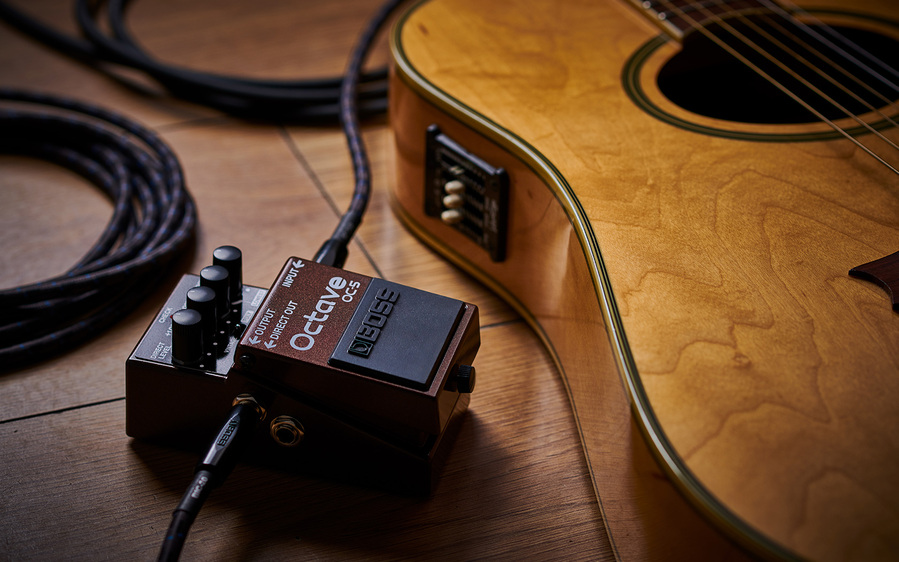

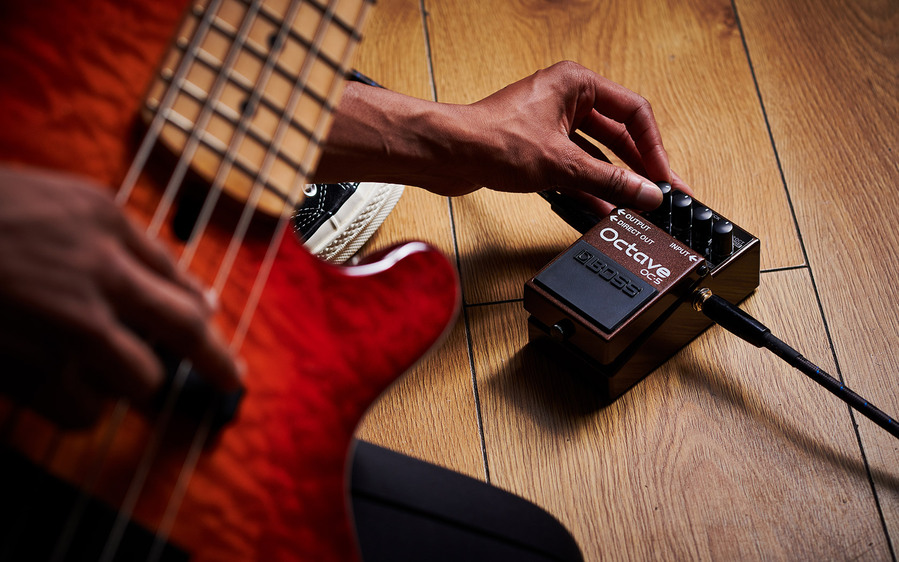

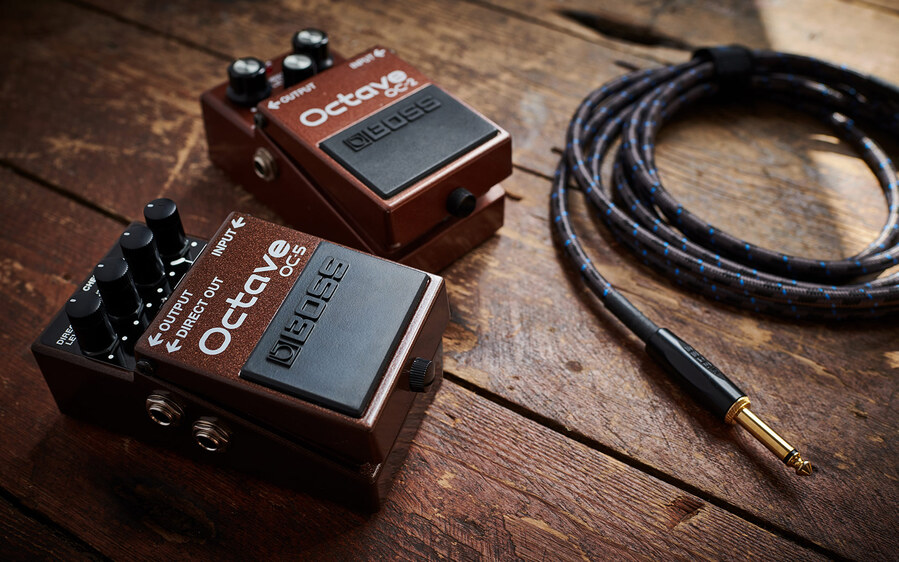

The New Standard in Octave Pedals

Fusing classic BOSS octave tones with the latest tracking technologies, the BOSS OC-5 sets a new standard in octave pedal performance. Vintage mode provides a spot-on recreation of the legendary mono OC-2 from 1982, while Poly mode offers numerous enhancements for extended-range playing. And with the addition of an octave-up feature, a span of three octaves is now available for creative exploration. From fat, low mono sounds to octave-shifted chords and more, the OC-5 delivers the widest range, finest sound quality, and best playability in any octave stomp to date.



Standard Features

  • The industry-standard octave pedal, updated with enhanced features
  • Newly developed tracking technology provides more accurate response and natural feel with no latency
  • Vintage mode faithfully reproduces the mono sound of the original OC-2
  • Poly mode for chord playing; Range knob sets the note range where the effect is applied
  • Lowest Range setting in Poly mode applies the octave effect to only the lowest note in a chord
  • New octave-up effect, available on its own or blended with octave-down effects
  • Mode switch optimizes the tracking engine for guitar or bass
  • Direct out for wet/dry setups
  • BOSS five-year warranty

Specifications

SPECIFICATIONS
Nominal Input Level
-20 dBu
Input Impedance
1 M ohm
Nominal Output Level
-20 dBu
Output Impedance
1 k ohm
Recommended Load Impedance
10 k ohms or greater
Bypass
Buffered bypass

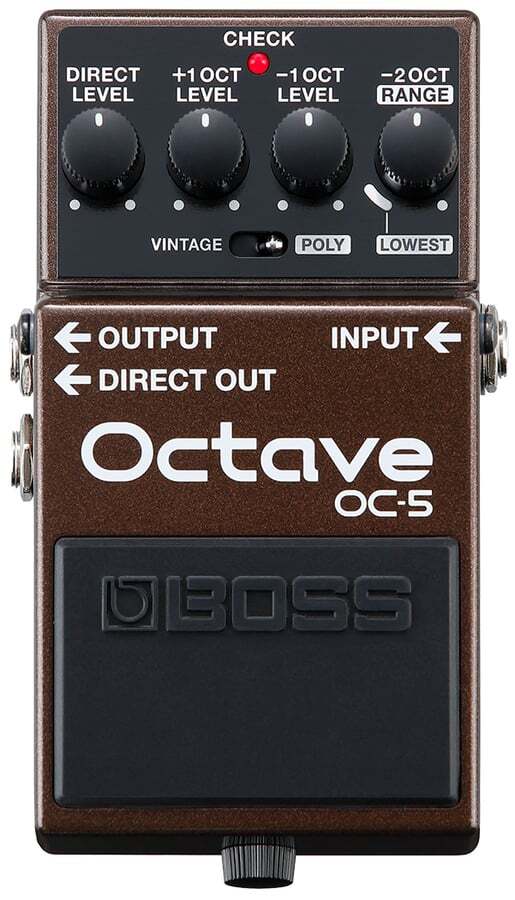

Controls
Pedal switch, GUITAR/BASS switch, VINTAGE/POLY switch, DIRECT LEVEL knob, +1OCT knob, -1OCT knob, -2OCT/RANGE knob
Indicator
CHECK indicator (Serves also as battery check indicator)
Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DIRECT OUT jack: 1/4-inch phone type
DC IN jack

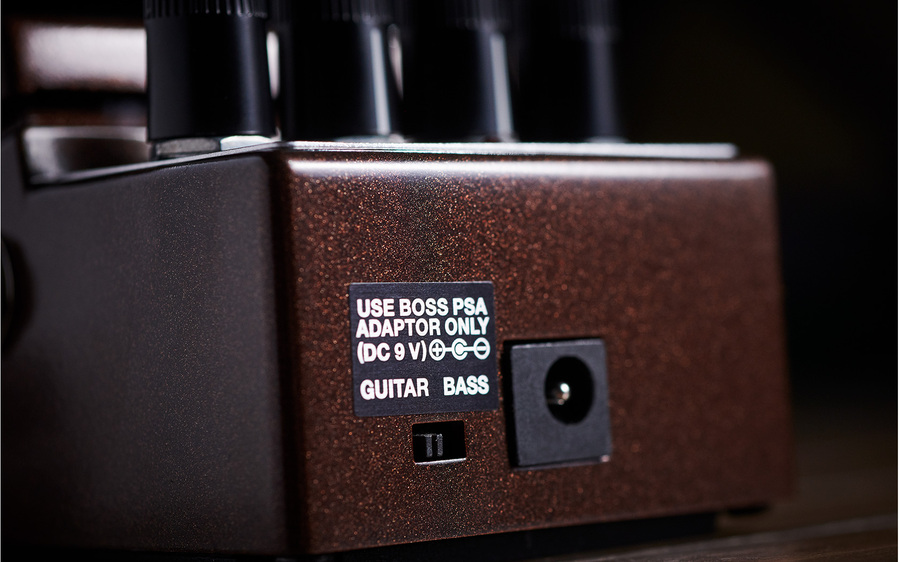

Power Supply
Alkaline battery (9 V, 6LR61 or 6LF22)
AC adaptor (PSA series: sold separately)
Current Draw
55 mA
Expected battery life under continuous use
Alkaline: Approx. 7 hours
*These figures will vary depending on the actual conditions of use.
Accessories
Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)
Options (sold separately)

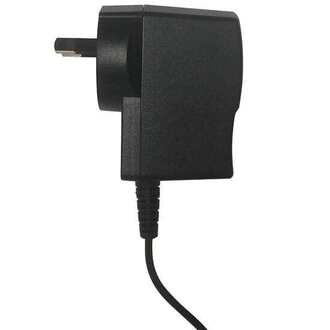

AC adaptor: PSA series
SIZE AND WEIGHT
Width
73 mm
2-7/8 inches
Depth
129 mm
5-1/8 inches
Height
59 mm
2-3/8 inches
Weight (including battery)
440 g
1 lb
