SKU: VE500
UPC: 4957054512354
Linked to MusiPos
RRP: $749
2 - Primary Warehouse
1 - Secondary Warehouse
Chat to us or call 5444 8889
Find out more

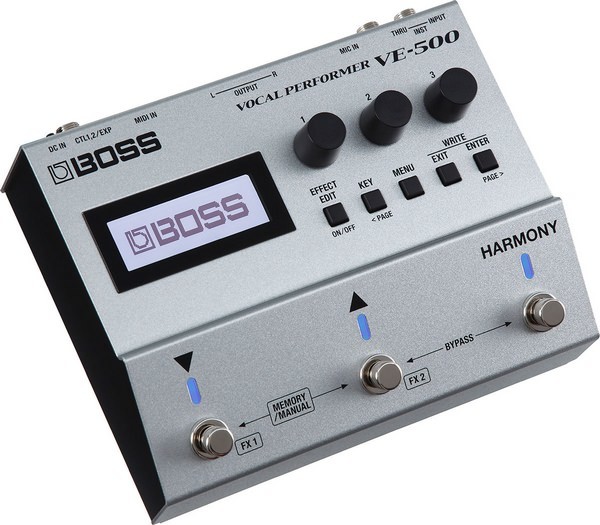

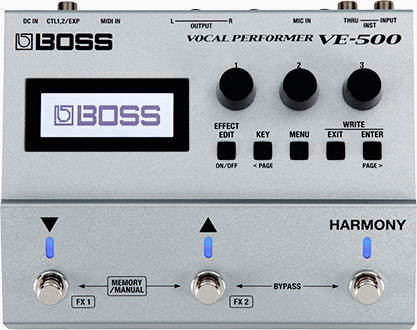

Powerhouse vocal tools for your pedalboard
If you’re like most guitarists, you spend a lot of time choosing the right amps and pedals to craft your own personalized sound. But if you sing in your band as well, it hasn’t always been so easy to give your vocal sounds that same attention to detail—until now. The advanced VE-500 Vocal Performer provides everything you need to achieve impressive vocal harmonies and effects on stage, and all in streamlined stompbox that integrates seamlessly with the regular guitar effects on your pedalboard.
Packing professional sound quality and serious BOSS DSP muscle, the VE-500 delivers sophisticated harmony and pitch correction functions that automatically track the chords you play on your guitar. It also includes a powerful vocoder and core sound-enhancement tools, plus world-class reverb, delay, and modulation sounds and specialty effects like distortion, filtering, and many others. And with programmable memories, you can instantly recall favorite setups for any song or style. The VE-500 is the perfect addition to the pedalboard of any singing guitarist, providing top-flight vocal processing that fits right alongside your standard guitar effects.
Sampling Frequency 48 kHz
AD Conversion 32 bits + AF method AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
DA Conversion 32 bits
Processing 32-bit floating point
Patches 99 (User) + 50 (Preset)
Nominal Input Level MIC IN: -40 dBu (Adjustable) INST IN: -10 dBu
Input Impedance MIC IN: 4 k ohms INST IN: 2 M ohms
Nominal Output Level XLR OUT L, R: -40 dBu, -10 dBu (Selectable) INST THRU: -10 dBu (Unbuffered)
Output Impedance XLR OUT L, R: 600 ohms
Display Graphic LCD (132 x 32 dots, backlit LCD)
Controls DOWN switch, UP switch, HARMONY switch, EFFECT EDIT button, KEY button, MENU button, EXIT button, ENTER button, 1 knob, 2 knob, 3 knob, GND LIFT switch

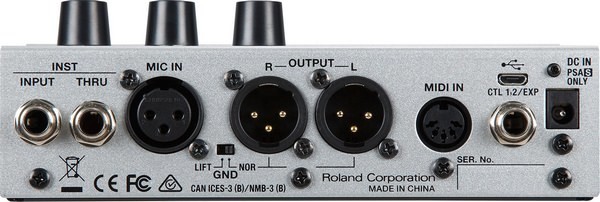

Connectors MIC IN connector: XLR type, balanced, phantom power (DC 48 V, 10 mA Max) INST IN jack: 1/4-inch phone type XLR OUT L, R connectors: XLR type INST THRU jack: 1/4-inch phone type CTL1,2 / EXP jack: 1/4-inch TRS phone type USB COMPUTER port: USB Micro-B type DC IN jack
Power Supply AC adaptor (PSA series)
Current Draw 310 mA (with phantom power) 210 mA (without phantom power)
Accessories AC adaptor: PSA series Owner's manual Leaflet "USING THE UNIT SAFELY"
Options (sold separately) Footswitch: FS-5U, FS-5L Dual Footswitch: FS-6, FS-7 Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
SIZE AND WEIGHT
Width 170 mm | 6-3/4 inches
Depth 138 mm | 5-7/16 inches
Height 62 mm | 2-1/2 inches
Weight 860 g | 1 lb 15 oz
