Empower Your Vocals
Take charge of your vocal sound with the VE-22, a portable multi-effects toolbox specially designed for singers. Perform with a diverse library of high-quality BOSS processing, from basic studio enhancement to dramatic voice-changing effects. Expand your range with real-time harmonies. And get creative with the free-flowing interface and versatile features for practice, recording, and online streaming. With the VE-22 in your chain, you’re primed and ready to deliver memorable, high-impact vocal performances everywhere you sing.
Outstanding BOSS Vocal Effects
The VE-22 is packed with the latest advancements in BOSS’s acclaimed Vocal Performer technology. Bolster your voice with core processing and make the sound come alive with immersive delays and reverbs. Then explore a universe of electronic colors and aggressive textures with auto pitch, distortion, lo-fi, modulation, and other cool voice transforming effects. There are 50 presets with ready-to-go sounds, plus 99 memories to store custom combinations for different songs and styles.
Harmonies That Impress
The VE-22’s powerful harmony and doubling functions make it simple to create head-turning ensemble effects from a single voice. Just select a type, set the song key, and start singing. It’s easy to change up the harmony voicing, adjust levels, and more with the panel knobs. You can also assign the harmonies to an onboard switch and bring them in and out as needed while performing.
Create in the Moment
The VE-22’s uncomplicated interface encourages you to get creative with your live vocal sound. The Harmony, Effect, and Echo sections feature multi-function knobs, letting you tweak top-level parameters, turn off a section with a click, or dive into deeper settings with a double click. And with the color display and lighted rings around the knobs, you always have a clear view of what’s happening. Three customizable switches are designed for control with your feet or hands, and you can connect an expression pedal or external footswitches for more control if needed.
Perform with Confidence
The VE-22 gives you everything you need to deliver top-quality sound to a house PA system, stage amplifier, or recorder. There’s an XLR input and integrated preamp for a professional stage microphone, plus phantom power for high-end condenser types. A high/low gain switch, rear-panel sensitivity knob, and level meter enable you to optimize the input signal for nearly any mic. Compressor, EQ, de-esser, and other studio essentials are also on hand, ready to support every performance with smooth, authoritative sound.
Express Yourself
With USB-C, an analog aux input, and a headphone jack, the VE-22 supports vocal activities from daily practice and recording to livestreaming on social media. Connect to a computer or mobile device and send mix-ready vocals directly to song production software and streaming apps. Or play backing music through the VE-22 and sing along with inspiring sound as you warm up for gigs, learn new songs, and perform.
Specifications
Sample Rate
48 kHz
AD Conversion
24 bits + AF method
AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
DA Conversion
32 bits
Processing
32-bit floating point
Effects
39 types
Memories
99 (User) + 50 (Preset)
Phrase Loop
37 sec.
Nominal Input Level
INPUT: -40 dBu (Adjustable)
AUX IN: -20 dBu
Maximum Input Level
INPUT: 0 dBu
AUX IN: 0 dBu
Input Impedance
INPUT: 4 k ohms
AUX IN: 27 k ohms
Nominal Output Level
OUTPUT L/MONO, R: -40 dBu
PHONES/LINE OUT: -10 dBu
Output Impedance
OUTPUT L/MONO, R: 600 ohms
PHONES/LINE OUT: 47 ohms
Recommended Load Impedance
OUTPUT L/MONO, R: 600 ohms or greater
PHONES/LINE OUT: 47 ohms or greater

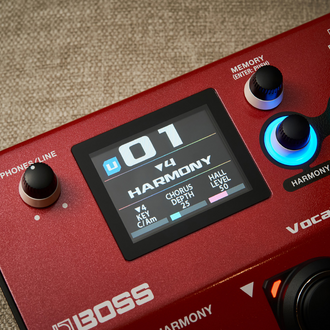

Display
Graphic color LCD 320 x 240 dots
Controls
HARMONY switch
DOWN switch
UP switch
MENU button
EXIT button
PHONES/LINE knob
MEMORY knob
HARMONY knob
EFFECT knob
ECHO knob
MIC SENS knob
PHANTOM switch
POWER switch

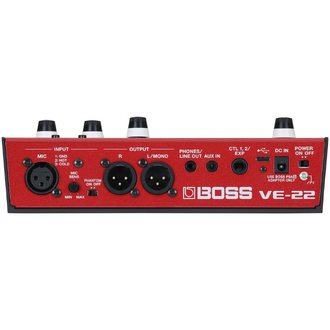

Connectors
INPUT connector: XLR type, balanced, phantom power (DC 48 V, 10 mA Max)
OUTPUT L/MONO, R connectors: XLR type
PHONES/LINE OUT jack: Stereo miniature phone type
AUX IN jack: Stereo miniature phone type
CTL1,2 / EXP jack: 1/4-inch TRS phone type
USB COMPUTER port: USB Type-C(R)
DC IN jack
Power Supply

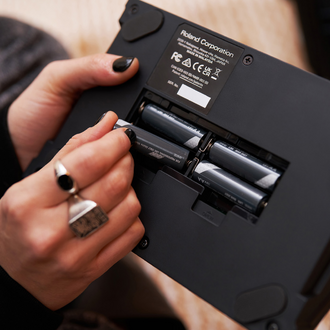

Alkaline battery (AA, LR6) x 4
or
AC adaptor (PSA-S series: sold separately)
Current Draw
260 mA (with phantom power)
180 mA (without phantom power)
Expected battery life under continuous use
Alkaline battery: Approximately 6 hours (with phantom power)
Alkaline battery: Approximately 9 hours (without phantom power)
* This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
Accessories
STARTUP GUIDE
Alkaline battery (AA, LR6) x 4
Leaflet “USING THE UNIT SAFELY”
Options (sold separately)
AC adaptor: PSA-S series
Footswitch: FS-5U, FS-6, FS-7
Expression Pedal: EV-30, FV-500L, FV-500H, Roland EV-5
Carrying Bag: CB-VE22
Size and Weight
Width
218 mm
8-5/8 inches
Depth
143 mm
5-11/16 inches
Height
64 mm
2-9/16 inches
Weight (including battery)
910 g
2 lb 0.1 0z
* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
