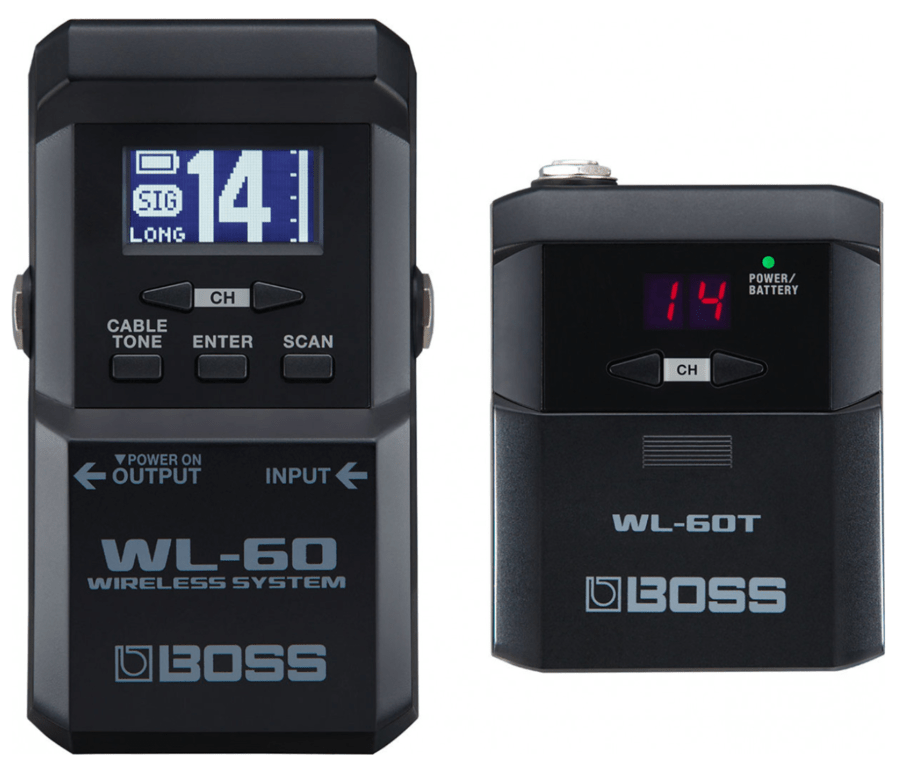

SPECIFICATIONS (RECEIVER) Wireless Format BOSS proprietary digital audio format Wireless carrier frequency 2.4 GHz Compatible Channels 14 (May vary due to local conditions) Transmission Range 65 feet line-of-sight (May vary due to local conditions) Latency 2.3 ms Dynamic Range 110 dB or greater Frequency Response 20 Hz--20 kHz Nominal Input Level -10 dBu Input Impedance 1 M ohm Nominal Output Level -10 dBu Output Impedance 1 k ohm Recommended Load Impedance 10 k ohms or greater Controls CH button SCAN button ENTER button CABLE TONE button Indicators Graphic LCD 64 x 32 dots Connectors INPUT jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type IN jack OUT jack Power Supply Alkaline battery (AA, LR6) x 2 AC adaptor (sold separately) Current Draw 70 mA Expected battery life under continuous use Alkaline battery (AA, LR6): Approximately 10 hours * These figures will vary depending on the actual conditions of use. Accessories Owner's Manual Leaflet USING THE UNIT SAFELY Transmitter Guitar cable Rubber foot x 4 Alkaline battery (AA, LR6) x 2 Options (sold separately) AC adaptor: PSA-S series Parallel DC cord: PCS-20A (DC Plug x8) SIZE AND WEIGHT (RECEIVER) Width 70 mm 2-13/16 inches Depth 120 mm 4-3/4 inches Height(excluding rubber foot) 54 mm 2-1/8 inches Height(including rubber foot) 57 mm 2-1/4 inches Weight (excluding battery) 180 g 7 oz Weight (including battery) 220 g 8 oz SPECIFICATIONS (TRANSMITTER (WL-60T)) Nominal Input Level -10 dBu (1 M ohm) Controls POWER switch CH button Display 7 segments, 2 characters (LED) Indicator POWER/BATTERY Connectors INPUT jack: 1/4-inch phone type Power Supply Alkaline battery (AA, LR6) x 2 Current Draw 110 mA Expected Battery Life Under Continuous Use Alkaline battery (AA, LR6): Approximately 25 hours * These figures will vary depending on the actual conditions of use. SIZE AND WEIGHT (TRANSMITTER (WL-60T)) Width 68 mm 2-11/16 inches Depth 88 mm 3-1/2 inches Height (including strap clip) 30 mm 1-3/16 inches Weight (including battery) 120 g 5 oz * 0 dBu = 0.775 Vrms *The specifications are subject to change without notice.
