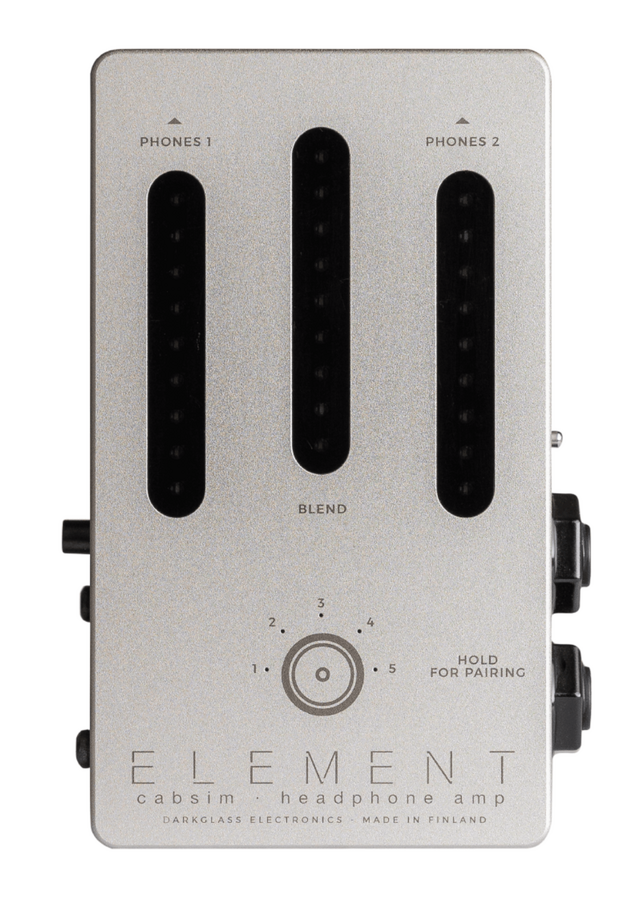

Darkglass Electronics Element CabSim & Headphone Amp With Bluetooth DG-ELM $ 479 $649.00
How to get it Learn More
Store Click & Collect - Available In Stock
Online In Stock - From Supplier
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

USB-C audio interface

Record your ideas wherever you are by connecting the Element to your PC or Mac (on macOS no drivers needed).

The instrument input records on two tracks, one with cabinet simulation and one without any effects.

Recording of stereo sources is also possible via the aux in. Independent mixes can be sent to the two headphone outputs from your favorite DAW.



① USB

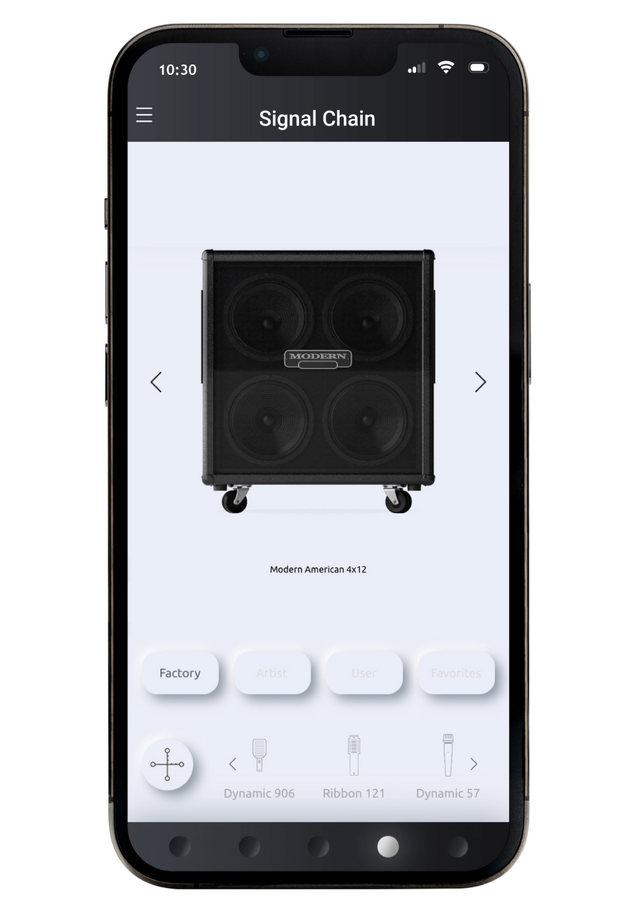

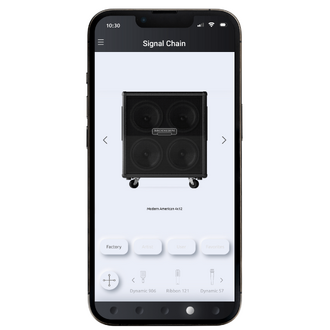

The USB-C port unlocks Element’s USB audio interface capabilities and enables interaction with the Darkglass Suite desktop app, allowing for software updates and access to the Darkglass IR library, containing hundreds of cabinet simulations.



② XLR output

An XLR output with a ground lift switch provides a reliable standard connection to a mixing desk or an external audio interface for a guaranteed low-noise signal.





Connection diagrams

Element with pedalboard

Connect your instrument to your pedalboard as you normally would and add the Element at the end of the signal chain. Use the input labelled “INSTRUMENT IN” on the Element.

You can now choose the impulse responses in slots 1-5 or the bypass signal. From here, the signal is passed through to the XLR output and via the blend and volume controls to the headphone outputs.



Element with amp & speaker cabinet

Note: The Element does NOT act as a loadbox! Always make sure your amplifier is connected to a suitable load!

The Element is built to work with amplifiers with a maximum output of 900 W. For the safest operation, it is advised to connect the Element after your speaker cabinet from your speaker cabinet’s parallel output connector. Use the input labelled “AMP IN” on the Element.

You can now choose the impulse responses in slots 1-5 or the bypass signal. From here, the signal is passed through to the XLR output and via the blend and volume controls to the headphone outputs.



If the amplifier’s maximum output is 100 W, the Element can be connected between the amplifier and the speaker cabinet. Use the input labelled “AMP IN” for the amplifier and the output labelled “SPEAKER OUT” to connect the speaker cabinet to the Element.

You can now choose the impulse responses in slots 1-5 or the bypass signal. From here, the signal is passed through to the XLR output and via the blend and volume controls to the headphone outputs.



If you are using a Darkglass amplifier with a class-D power amplifier, you have the option to connect the amplifier straight to the Element without using a speaker cabinet or an external load. Use the input labelled “AMP IN” on the Element.

You can now choose the impulse responses in slots 1-5 or the bypass signal. From here, the signal is passed through to the XLR output and via the blend and volume controls to the headphone outputs.



Warning

The Element has a current draw of 250mA. Only use a regulated 9V DC adapter with a center-negative plug. Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty.

Features

Cabsim

Toggle the cabinet simulation on/off on the Direct Output. This switch completely bypasses all digital circuits and allows you to get a zero-latency signal when needed.



Blend

A touch sensitive slider to set the blend between the main input (Instrument/Amp in) and the backing track (Bluetooth/Aux in) for the headphone out mix.



Phones

Two touch sensitive volume control sliders, one for each headphone output.



Dimensions

Width: 64 mm / 2½″
Length: 111 mm/ 4¼″
Height: 35 mm / 1½″
Weight: 245 g / 0.54 lb
