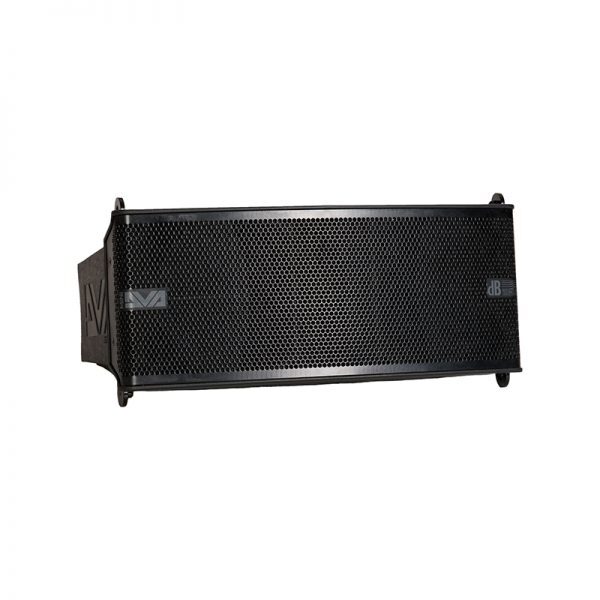

2-Way Passive Line Array Module, 2x6.5" Neo Woofers incl. Phaseplug, 2x1" Neo Drivers, 150 W/RMS, 78-19.000 Hz [+/-6dB], 126 dB SPL. Black. Dimensions: 460x190x345 mm, Weight: 7.1 kg, BLACK ONLY

2-Way Passive Line Array Module

Technology inspired by ideas

For years dBTechnologies R&D team has been revolutionising the world of line array systems by exploiting all the knowledge in acoustic, mechanical, power electronics, DSP programming, materials and manufacturing techniques and developing innovative solutions in each of these areas. All this expertise puts dBTechnologies R&D in a unique position: it is able to turn inspired ideas into premium-quality products that offer exceptional performance at an unrivalled price-point.

This synthesis has occurred with the introduction of DVA T Series active line array speakers and has happened more recently with the launch of DVA MINI Series, whose innovative Master+Slave design, the simplified wiring and the less overall weight, has led this product to become a new milestone in compact line arrays scenario.

A new benchmark in passive line arrays

DVA M2P comes from the same wealth of knowledge of DVA MINI and combines the elegant look, the acoustical and mechanical features of the predecessor in a compact, simple to configure, lightweight and extremely versatile format. It sets the new benchmark for easy-to-use passive systems with top-range sound performance, confirming itself as the ideal choice for permanent installation in theatres, places of worship, convention centres and live music gigs where it is preferred to work with passive systems.

Low-mid range consistent coverage pattern

The DVA M2P features two 6,5” neodymium woofers, whose disposition and efficiency is extremely optimised thanks to a custom dual phase-plug. This technology significantly improves the mid-range efficiency of the speaker and, most of all, makes the horizontal coverage really homogeneous and consistent.

Clear and assertive top end

The two 1” drivers, finely tuned for the DVA M2P custom designed array horns, deliver a crystalline clear sound in high frequency, in order to provide the audience the same intelligibility of the DVA line array systems. It is possible to change the top end response (+ 3dB) through a switch located on the rear panel, in order to compensate the attenuation on high frequencies when using as long throw system.

Light weight. Heavy duty.

The high quality reinforced Polypropylene enclosure, and the internal hardwearing anti-vibration structure, makes the DVA M2P box very tough and able to work as heavy-duty professional tools. These features, together with neodymium transducers, contribute to realise an exceptionally light, durable and powerful line array module. The choice of neodymium magnets ensures even more value to the module, as they are synonym of reliability, performance and lightness.

Premium design

The DVA M2P inherits the very clean aesthetic and a very discreet look of DVA MINI Series. The mechanics are hidden behind the frontal panel, and the elegant curvature of the frontal hexagonal grille contributes to create a very nice looking system for any kind of fixed installation purposes or live music events where the system should be totally invisible.

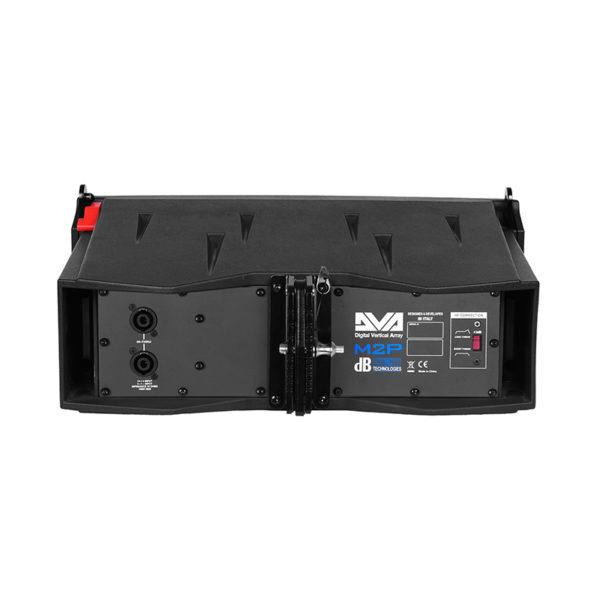

Fast lock system and single rear mechanics

The DVA M2P features the same “fast lock mechanics”, which made the DVA MINI incredibly easy to assemble and rig, by completely removing pins and complex mechanics in favour of a quick-locking system. Even the single mechanic on the rear of the box is the same system to regulate the aiming of each module with the same accuracy of DVA MINI line arrays.

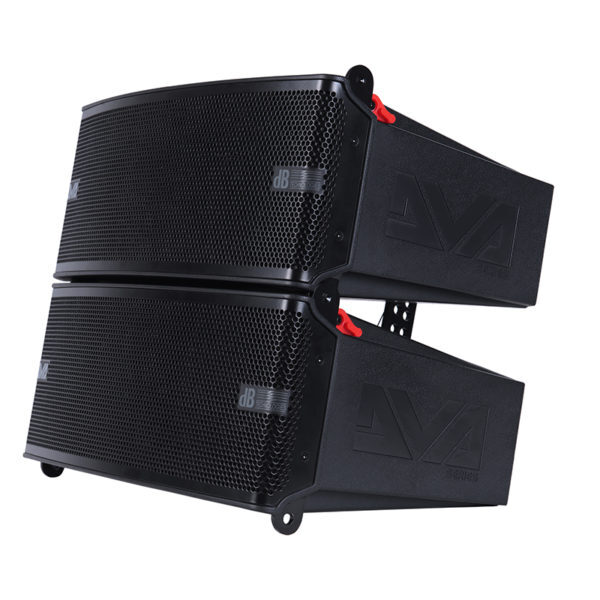

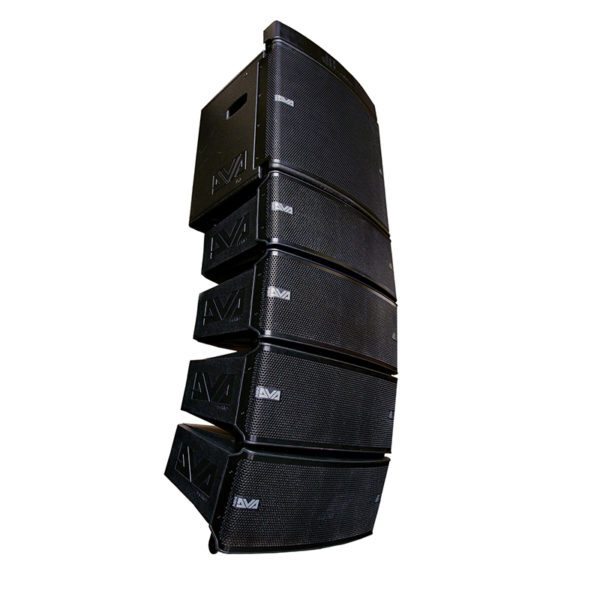

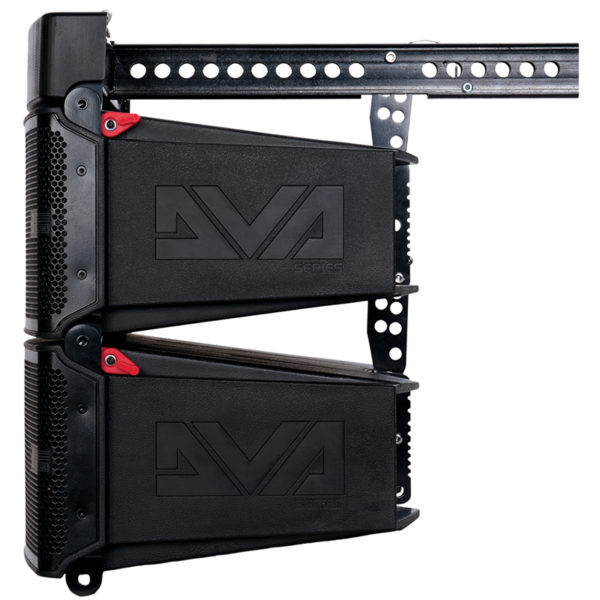

Ground stacking or suspended use

The DVA M2P allows the same suspended or ground stack configurations, and shares all the accessories of the DVA MINI, ensuring the same versatility in permanent installations, live music and all those events that require medium-high sound pressures, limited weight and footprint.
