Technical Data

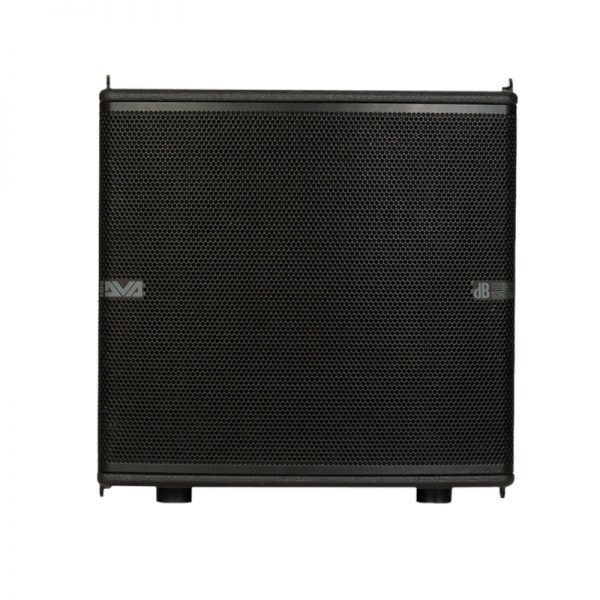

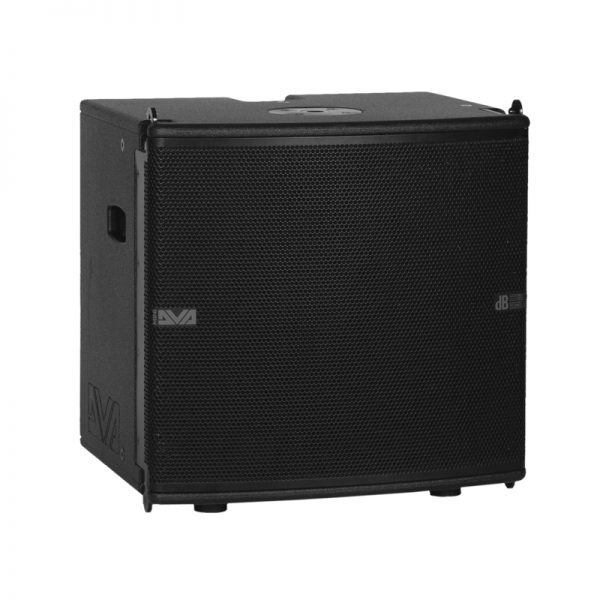

- Speaker Type: Active bass reflex flyable subwoofer
Acoustical Data
- Frequency Response [-6dB]: 45 – 140 Hz
- Frequency Response [-10dB]: 40 – 165 Hz
- Max SPL: 131 dB
- LF: 12″
- Voice Coil LF: 3″
- Directivity: Omnidirectional
Amplifier
- Amp Technology: Digipro® G3
- Amp Class: Class D
- Power Supply: 700W SMPS with PSU Auto-range (110V~ and 220V~)
- LF Amp: 700 W RMS (1400 W Peak)
- Cooling: Convection
Processor
- Controller: DSP 56 bit
- AD/DA Converter: 24 bit/48 kHz

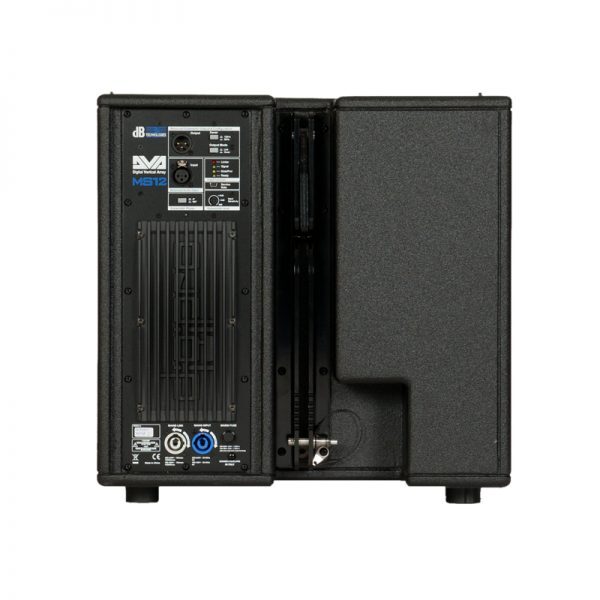

- Controls: X-Over frequency selection, Phase selection (0° or 180°), Outputs mode selection (Link/X-over), Mini-USB type “B” port (service data)
- Limiter: Dual active, RMS/Peak, Thermal
- Crossover Frequency LF-HF: 90 – 120 Hz
- LF X-over out slope: 24 dB/Octave
Mechanics
- Housing: Multiplex birch plywood – Polyurea painting

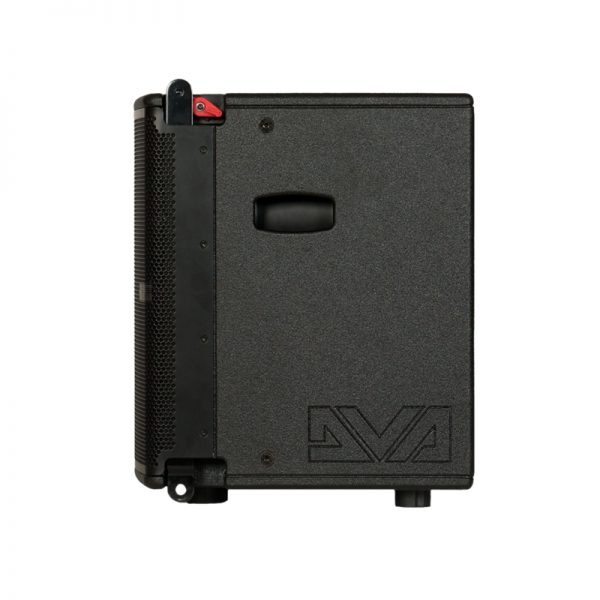

- Handles: 1x left side, 1x right side
- Feet: 4x Dual Position Reversible Feet (flying/stacking mode)
- Fittings: M20 screw for pole mount on top side, integrated hardware with fast lock mechanics
- Width: 460 mm (18.1 in)
- Height: 430 mm (16.9 in)
- Depth: 385 mm (15.2 in)
- Weight: 26.5 kg (58.4 lbs)
