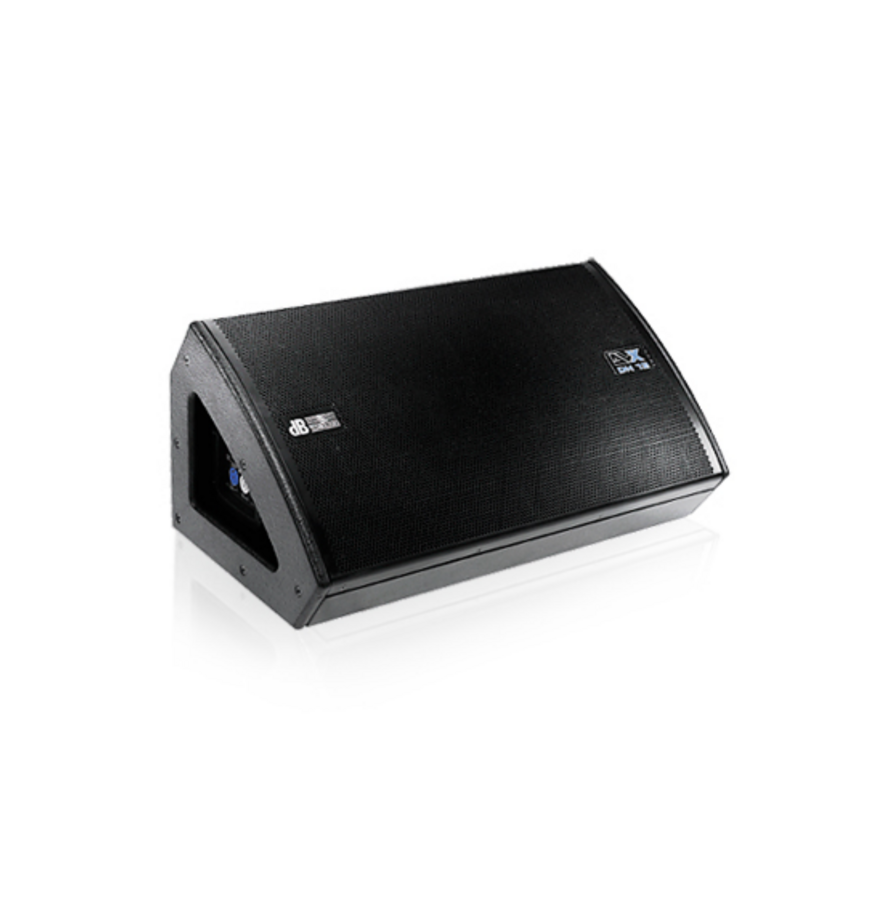

dB Technologies DVX DM 12,1500 Watt 2-Way Active Stage Monitor DVX-DM-12 $ 4039 $4,926.00
How to get it Learn More
Delivery Not Available
Order Special Order - Request Availability
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

Featuring a discrete, unobtrusive design, the ultra low-profi le enclosure sports a high-performance 12“ neodymium woofer paired with a 1.4“ neodymium compression driver and rotatable aluminum CD horn precision matched for on-stage monitoring.

Unlike conventional multifunctional speakers, the DVX DM 12 is a prograde performer developed specifically for use as a floor monitor. Optimized to resist feedback even at extremely high levels, it delivers the true-to-nature response and dynamic balance that today’s artists demand.

The integrated digipro digital power amps deliver the requisite output. The switched-mode power supplies with PFC ensure touring rigs get all the juice they need to perform at their peak even when a venue’s mains power is weak and voltage is low.

The onboard controller encompasses an active equalizer,
active x-over including phase and time alignment, limiters, and switchable system presets that adapt the monitor’s performance to suit the given application.

Made of rugged multiplex and coated with tough black lacquer, the cabinet sets up at two different angles.
It is also equipped with a pole mount, enabling the DVX DM12 to be set on a tripod or speaker pole

Specifications

DVX DM12
Technical Specifications
System Specifications
Speaker Type 2-Way Active Stage Monitor
HF 1.4”
Type HF Neodymium Compression Driver
Voice Coil HF Titanium 2.5”
Max SPL 131 dB
Frequency Response [-10dB] 55 - 20.000 Hz
[- 3dB] 68 - 19.000 Hz
Handles 2x recessed handles (one on each side)
Width 660 mm (25.98 in)
Acoustical Data
Directivity 90° x 40°
Horn CD Horn Aluminium
Rotatable Horn YES
LF 12”
Type LF Neodymium
Voice Coil LF 3”
Amp Technology Digipro®
Amp Class Class D
Amplifier
Peak Power 1500 W
Power Supply Full-range with PFC
Cooling Convection
Controller DSP 24 Bit/48 kHz
System Presets Flat, Monitor
Limiter RMS, Peak, Thermal, Multiband
Crossover Frequency MF-HF 1400 Hz
Processor
Slope MF-HF 24 dB/Octave
Connections / Controls
Input XLR balanced
Out XLR balanced (Link out)
EQ Preset 2-way switch (Monitor - Full-range)
Sensitivity Rotative knob
Indicators 4x LEDs (ON, MUTE, SIGNAL, LIMITER)
Mains Powercon® (Mains Input- Blue)
Powercon® (Mains Link - White)
Mains Fuse 220-240V~ (T5A 250V) / 100-120V~ (T10A 250V)
Housing Multiplex plywood
Mechanics
Housing Design Low Profile Multifunctional
Angles Up 30°, 60°
Height 305 mm (12.0
