dB Technologies ES 1002 Column PA system Sound System ES1002 $ 3929 $5,230.00
How to get it Learn More
Delivery Not Available
Order Special Order - Request Availability
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

dB Technologies ES 1002 Column PA system Sound System

Remarkably powerful (1800 W peak) for its compact size, this complete PA system is designed for a quick and smooth set up, equally responding to musicians and djs needs.
ES 1002 includes one cover for the sub and one cover for the top module.

Features
  • BI-AMPED 1800 W ACTIVE PA SYSTEM
  • IMPROVED POWER/SIZE RATIO
  • EXTRA-PRECISE COVERAGE DISPERSION (HORIZONTAL AND VERTICAL)
  • NEW PHASE-PLUG DESIGN FOR PERFECT INTELLIGIBILITY
  • ENHANCED USABILITY FOR CONTROL PANEL
  • 8 EQ PRESETS

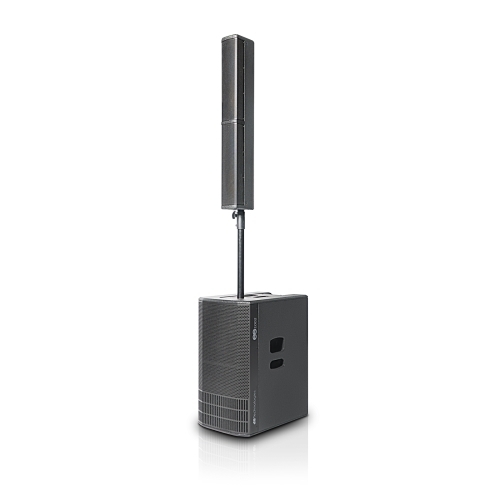

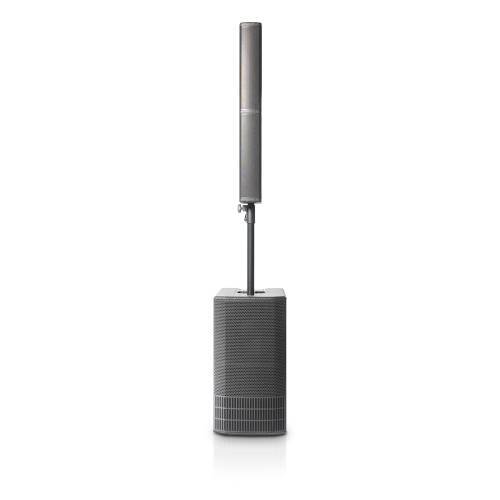

ES1002 comes with 1 subwoofer and 1 column top, both powered by a class D DIGIPRO G3 amplifier delivering 1800 W peak.

The top satellite is equipped with 8x4” mid-woofers, whose alignment allows an asymmetrical vertical coverage, avoiding any useless dispersion of the sound above the audience. Moreover, each mid-range woofer is provided with a newly designed phase-plug able to widen the horizontal coverage while guaranteeing a perfect intelligibility of the vocal range from every listening position.

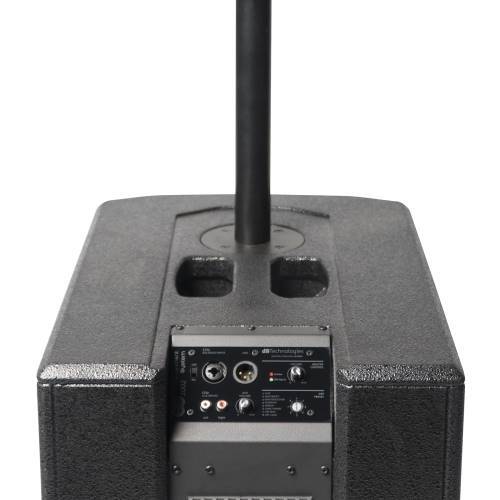

The sub encompasses 2X12” woofers in bass-reflex configuration, the amp module and the control panel, whose inclined design improves usability. I/O section allows to connect up to 2 INPUTS (XLR mono and RCA stereo with independent volume controls) and provides a balanced link out to feed a second system or a stage monitor.

A rotary with 8 preset EQ helps users to perfectly tune the system, adapting it to different environments and uses (playback, live music, speech etc.).

The enclosures of both top and sub are made of plywood, coated with a durable scratch-resistant finish, which makes ES1002 truly road-ready.



Specifications

Technical Data
Speaker Type
BI-Amped Mono Column System
Acoustical data
Frequency Response [-3dB]
43-20.000 Hz
Usable Bandwidth [-10 dB]
56 - 18.000 Hz
Max SPL
130.7 dB
MF - HF
8x 4"
Type MF - HF
Neodymium
LF
2x 12"
Directivity (HxV)
97x40°
Amplifier
Amp Technology
Digipro® G3
Amp Class
Class-D
Power Amp Peak
1800 W
Processor
Controller
DSP 24 Bit/48 kHz
System Presets
Flat - Bass boost - Bass reduction - Playback - Speech - Long throw - HPF 80 Hz - HPF 120 Hz
Limiter
Dual Active, Peak, RMS, Thermal
Controls
DSP rotary encoder, volume controles, MIC/LINE Switch
Crossover Frequency LF-HF
160 Hz
Input
Mains Connections
VDE
Signal Input
1x Combo (XLR/Jack) balanced/unbalanced input – Mic/Line, 1x RCA stereo input
Signal Out
1x XLR balanced output with aux volume + 1x speakon to top
Mechanics
Housing (Subwoofer)
Black Painted Plywood
Housing (Tops)
Multiplex Plywood
Handles
3 (1 on top + 1 each side on sub)
Pole Mount
36 mm (M20 threaded hole)
Width (Top)
110 mm (4.33 in)
Height (Top)
905 mm (35.63 in)
Depth (Top)
160 mm (6.3 in)
Width (Subwoofer)
360 mm (14.17 in)
Height (Subwoofer)
680 mm (26.77 in)
Depth (Subwoofer)
545 mm (21.46 in)
Weight (Top)
5.8 Kg – 12.79 lbs
Weight (Subwoofer)
29.3 Kg – 64.59 lbs
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
