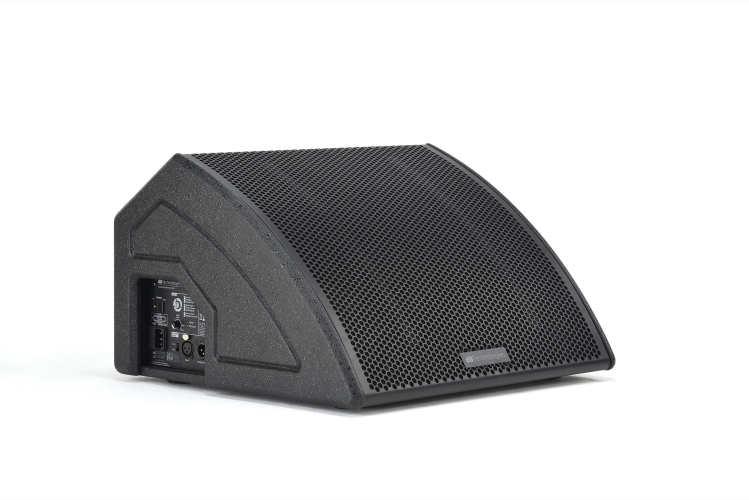

dB Technologies FMX 12 2-way coaxial active monitor Black FMX-12 $ 1446 $1,711.00
How to get it Learn More
Delivery Not Available
Order Special Order - Request Availability
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

2-way coaxial active monitor. 1" HF & 1x12" woofer. 1200W class D amplifier. 128dB max SPL, 56 bit DSP, 24bit/48kHz with FIR filters & 8 preset configurations. Rotatable 90 x 60° horn. mic/line switch, plywood cabinet with black PVC finish. Dimensions (WxHxD) 465 x 297 x 444mm, 13.9kg

  • Active 2-way stage monitor
  • Coaxial configuration
  • Linear phase FIR Filters
  • Ultra-precise directivity
  • Rotatable horn (90°x60° or 60°x90° dispersion)
  • Front-rear grille design
  • Integrated handle on bottom side
  • FMX is an active 2-way coaxial stage monitor series encompassing 3 models (10,12 and 15”) equipped with 400 RMS (for FMX 10) or 600 RMS (for FMX 12 and 15) Class D amplifiers.

    The wedge’s coaxial acoustic design, together with its custom horn design and its advanced DSP featuring linear phase FIR filters, provides an even, highly-intelligible sound.

    In facts, FMX’s horn design allows a very precise dispersion pattern (60° horizontal and 90° vertical) which can be easily reversed (90° horizontal and 60° vertical) by rotating the horn, adapting the wedge to the habits of the user.

    Moreover, 8 on-board presets optimize EQ for different needs making FMX a skilful yet easy-to-use tool for performers of every kind.

    All wedges of the series feature a peculiar front-rear grille design, a single handle integrated on the bottom side of the plywood cabinet and a 36mm pole mount on side panel which further enhance FMX versatility.

Specifications

Technical Data
Speaker Type
2-Way Active Coaxial Stage Monitor
Acoustical data
Frequency Response [- 10 dB]
52 - 19.000 Hz
Max SPL
128 dB
HF
1", 1.3" v.c.
Directivity
60°X90°
Horn
Rotatable
LF
12", 2" v.c.
Amplifier
Amp Class
Class D
Peak Power
1200 W
Processor
Controller
DSP 28/56 bit
AD/DA Converter
24 bit/48 Hz
System Presets
8 presets
Limiter
Peak, RMS, Thermal
Advanced DSP Funtion
FIR Filters
Crossover Frequency
1740 Hz
Slope LF/HF
24 dB/oct
Mechanics
Housing
Plywood
Housing Design
Multifunctional
Handles
1 integrated on bottom side
Pole mount
36 mm
Width
465 mm (18.30 in)
Height
297 mm (11.69 in)
Depth
444 mm (17.48 in)
Weight
13.9 kg (30.6 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
