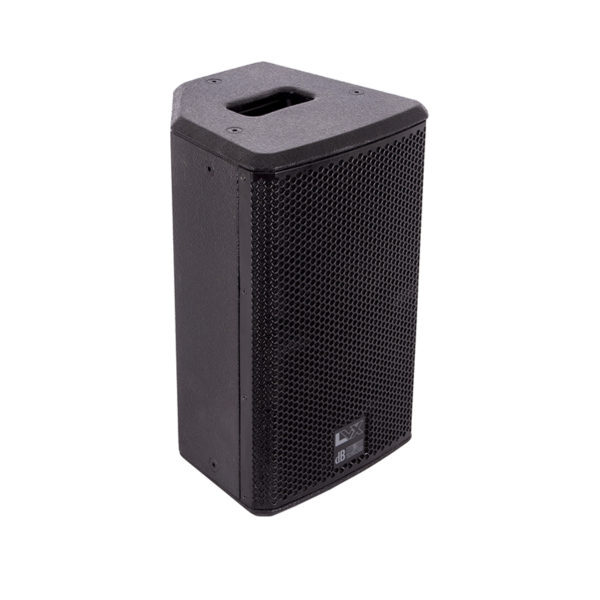

dB Technologies LVX 8 400-Watt 2-Way Active Speaker Bin LVX-8 $ 1239 $1,511.00
How to get it Learn More
Delivery Not Available
Order Special Order - Request Availability
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

Black Finish

LVX active loudspeakers series is the answer to all those fixed installations and live music requirements where sound reinforcement systems must be lightweight, stylish, portable, powerful. As a result of the experience in touring gear designing, the new LVX series offers smart solutions with a special attention to the needs of fixed and portable installations.

The voicing of these speakers is very linear and designed to for any audio content, such as speech, background or live music, multimedia contents, etc., respecting their characteristics and dynamic response, and with a high level of performance.  The dispersion of the constant directivity horn is symmetric and rotatable in order to keep the same coverage in case of horizontal use. This is particularly valued even in case of use as a stage monitor, configuration possible thanks to the rear angle of 45° The digital amplifiers (DIGIPRO® series) are totally silent due to the low thermal dissipation and controls audio crossover, frequency response, and acoustic alignment and 2 different preset EQ.

The enclosure is made of robust 12mm plywood with a look very elegant and refined.

 LVX 8 is provided with a single top handle to ease transport. A D36mm pole mount cup on the bottom allows all LVX speakers to be placed on poles or tripods,

Two types of wall-mounting brackets are available: one for vertical installation, especially studied for live applications or truss mounting, with variable pan-tilt options (a pole mount cup is included as a stand adapter). The second for horizontal permanent installations, where you can easily change tilt position.

All models and related accessories are available in black or withe finshes.

The white installation version of all the four models comes without the pole mount cup and the handles, providing a very transparent look.

Specifications

LVX 8Technical Specifications
Technical Data
Speaker Type 2-Way Active Speaker
Acoustical data
Frequency Response [- 10dB] 65 - 20.000 Hz
Frequency Response [- 6dB] 80 - 19.000 Hz
Max SPL 121 dB
HF 1”
HF Voice Coil 1”
Type HF Compression driver
Directivity 90 x 70°
Rotatable Horn YES
LF LF: 8”
LF Voice Coil 1.5”
Amplifier
Amp Technology Digipro®
Amp Class Class-D
Power PRG 400 W
Power Peak 800 W
Processor
Controller DSP 56bit
AD/DA Converter 24bit/48kHz
System Presets Flat, Processed
Limiter Peak, RMS, Thermal
Crossover Frequency LF-HF 2050 Hz
Slope MF-HF 24 dB/Octave

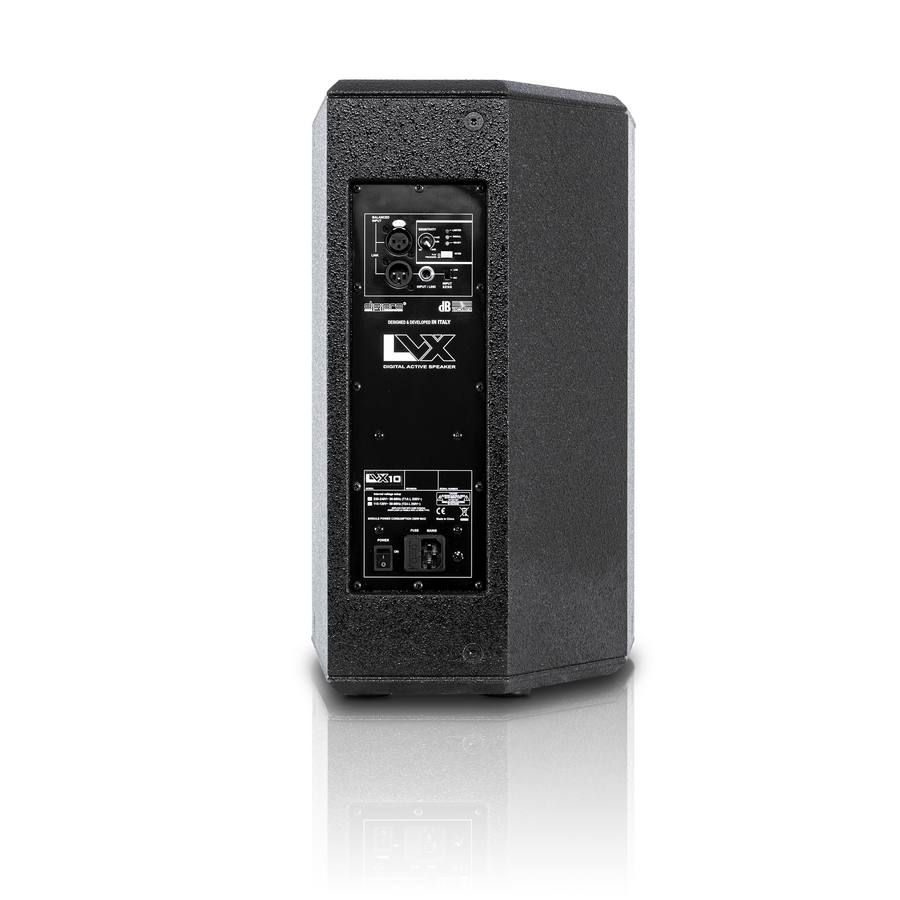

Rear Panel
Audio Input / Link 1 x XLR female - balanced / 1 x XLR male - balanced
1 x jack 1/4” – balanced
Power Connections VDE Mains Socket with Fuse
1x Power On/Off switch
Controls 1 x EQ Preset swtich
1 x Volume knob
1 x Mic/Line Input sensitivity switch
3 x LED (Limiter, Signal, Ready)
Mechanics
Housing Multiplex
Angles Up Monitor use 40°
Handles 1x top side, recessed
Rigging points 10 x M8
Pole mount D36 mm
Width 260 mm (10.24 in)
Height 420 mm (16.54 in)
Depth 260 mm (10.24 in)
Weight 10.1 kg (22.27 lbs.)
