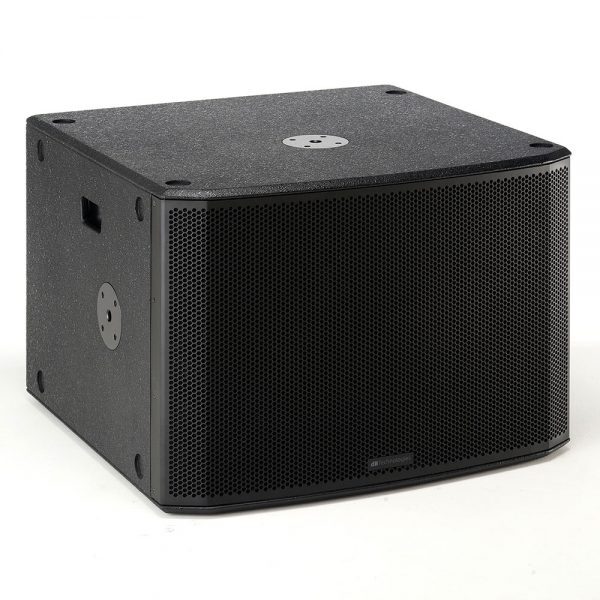

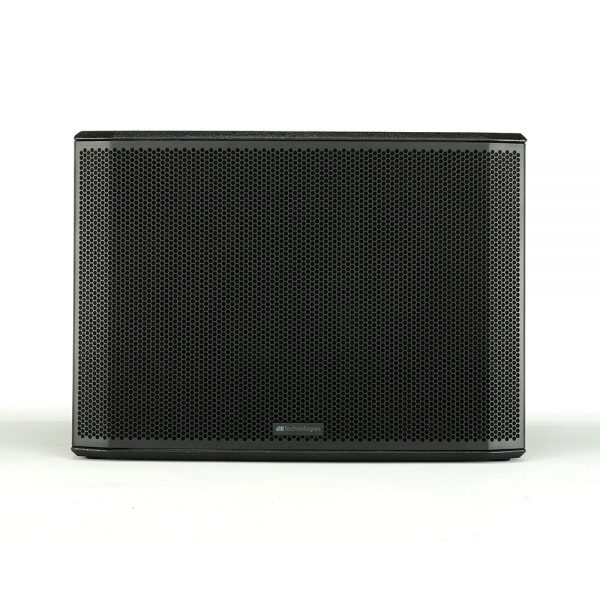

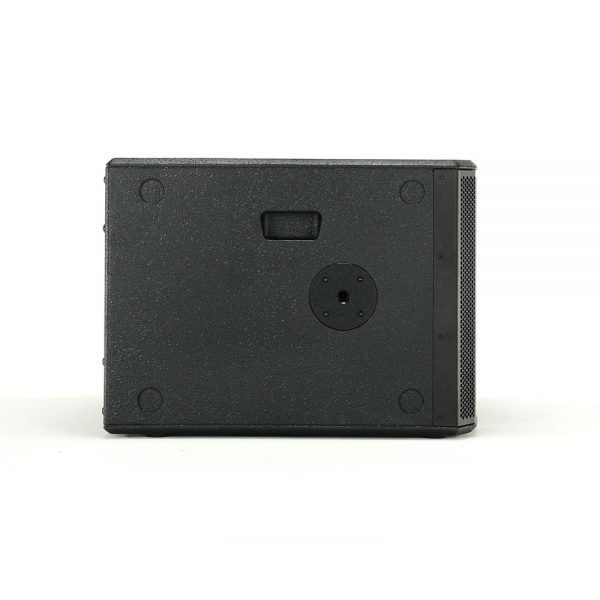

dB Technologies LVX PSW18 Passive Subwoofer, 1,200W peak power at 8 ohms, 1 x 18" woofer with 4" Black LVX-PSW18 $ 1410 $1,720.00
How to get it Learn More
Delivery Not Available
Order Special Order - Request Availability
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

Passive Subwoofer, 1,200W peak power at 8 ohms, 1 x 18" woofer with 4" VC, 132dB maximum SPL, 30Hz - 250Hz. 2 x M20 pole mount inserts. Dimensions 720x520x690mm, 37kg,

Black

  • Passive Subwoofer
  • 1000 W peak at 8 Ω
  • 130dB max SPL
  • Vertical or Horizontal use
  • 2xPole mounts
  • Available in black or white version

Born as an evolution of wooden LVX active series, the new LVX P family moves into the installation world with a passive selection of cabinets where a clean, essential design merges with a very detailed and coherent audio performance.

LVX P cabinets are equipped with premium components and are designed to render speech, live or background music in medium to large venues delivering a clear, detailed audio performance.

Passive subwoofer LVX PSW18 has been designed to render low end frequencies in medium to large-sized LVX P PA or fixed installations.

The system is able to provide 1200 W power at 8 Ohms for a maximum of 132 dB SPL.

The solid plywood enclosures features a clean, install-friendly design featuring 1 integrated handle per side and 2X36 mm pole mount plates (one on top and one on side), so that the sub can be easily used vertically or horizontally.

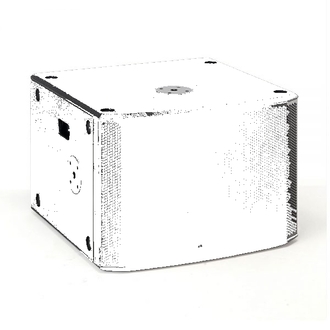

All enclosures and accessories of LVX P series are available in black or white version.

Specifications

Technical Data

  • Speaker Type: Passive Subwoofer

Acoustical Data

  • Power Peak: 1200 W
  • Impedance: 8 Ohms
  • Frequency Response [- 10dB]: 30 – 250 Hz
  • Max SPL: 132 dB
  • LF: 18″
  • Voice Coil LF: 4

Input

  • Signal Input: 1x Speakon (Pin 1+=+) (Pin 1-=-)
  • Signal Output: 1x Speakon (Pin 1+=+) (Pin 1-=-)

Mechanics

  • Housing: Plywood
  • Pole mount: 2xM20
  • Handles: 2 (1x side)
  • Width: 720 mm (24.4 in)
  • Height: 520 mm (17.71 in)
  • Depth: 690 mm (24.4 in)
  • Weight: 37 kg (58.8 lbs)

Note: Data is not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
