dB Technologies OPERA 15

15" 2 Way Active Speaker

With the new OPERA series, dBTechnologies succeeded once again in packing leading edge DSP processing, advanced design features and user friendliness in an unrivalled cabinet in its price range.

Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet pristine sound, successfully adaptable to both playback and live music applications.

Opera’s asymmetrical horn has been completely redesigned in order to obtain both an asymmetrical vertical dispersion and a double horizontal dispersion, ensuring an optimised throw pattern.

The system is equipped with a powerful Class D 600 W amplifier featuring advanced DSP processing where FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.

  • 1200 w peak power
  • Newly designed asymmetrical horn
  • Advanced DSP with FIR processing
  • 2 input channels (mic-line/mic-instr)
  • Selectable output channel (link ch1/mix ch 1+2)
  • 8 EQ presets

Specifications

Technical Data

  • Speaker Type: 2-Way Active Speaker



Acoustical data

  • Frequency Response [-10dB]: 50 - 20.000 Hz
  • Frequency Response [- 3dB]: 56 - 19.000 Hz
  • Max SPL: 130 dB
  • HF: 1" Exit, 1.4 v.c.
  • Type HF: Compression driver
  • Horizontal Directivity: 100° (85° up/120° down)
  • Vertical Directivity: 85° (+ 25°/-60°)
  • Horn: Asymmetrical Horn
  • LF: 15", 2" v.c.



Amplifier

  • Amp Technology: Amp SMPS Power supply dual range
  • Amp Class: Class D
  • RMS Power: 600 W
  • Peak Power: 1200 W



Processor

  • Controller: DSP 56 bit
  • AD/DA Converter: 24 bit/48 KHz
  • System Presets: Rotary Encoder (8 Presets)
  • X-Over Frequency: 1800 Hz
  • Limiter: Peak, RMS, Thermal
  • Advanced DSP Functions: Linear Phase FIR Filters



Input

  • Signal Input:
    1xCombo (XLR/Jack 6.3 mm) MIC/Line
    1xCombo (XLR/Jack 6.3 mm) MIC/Inst
  • Signal Output:
    1x XLR Male (CH1 Link/Mix OUT)
    Selectable



Mechanics

  • Housing: Polypropylene with internal frame
  • Grille: Full grille
  • Handles: 1 on left Side, 1 on Top
  • Rigging Points: 2XM10 on Top + 1x M10 on Back
  • Pole Mount: D36 mm

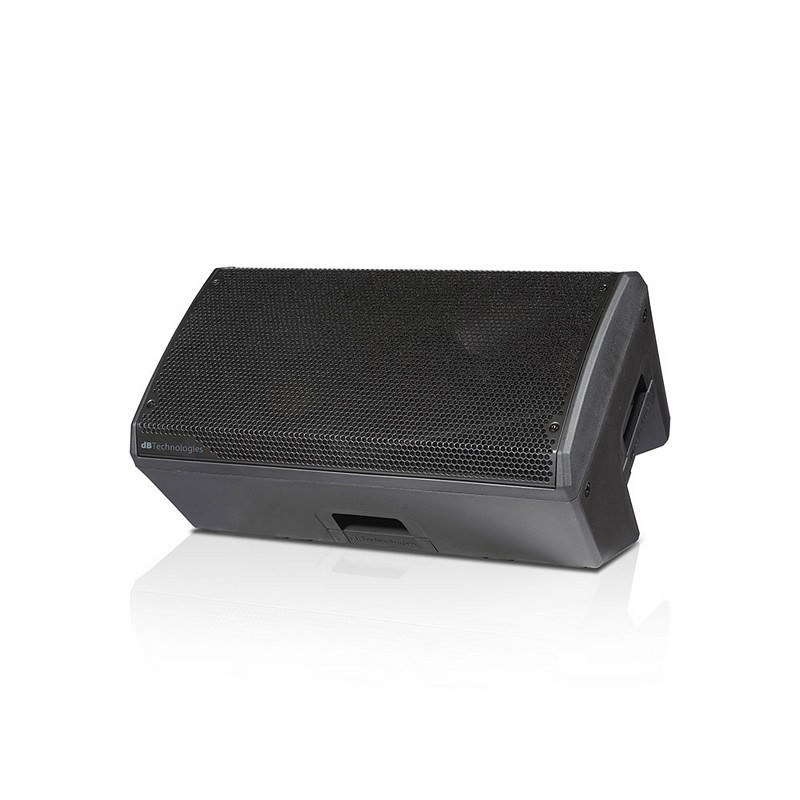

  • Angles up: Monitor use 45°
  • Width: 420 mm (16.54 in)
  • Height: 722 mm (28.43 in)
  • Depth: 419 mm (16.50 in)
  • Weight: 18.3 kg (40.34 lbs)
