dB Technologies SUB 615 600-Watt Active 15-Inch Subwoofer Speaker Bin SUB615 $ 1749 $1,809.00
How to get it Learn More
Delivery Not Available
Order Special Order - Request Availability
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

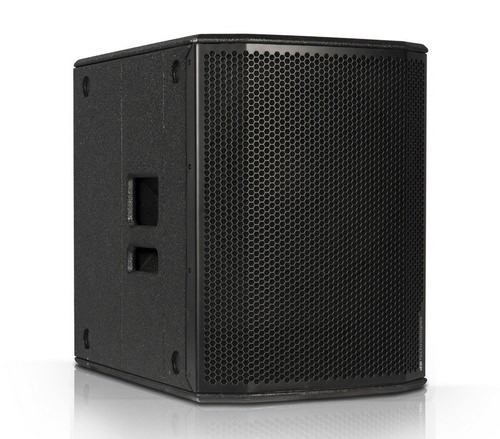

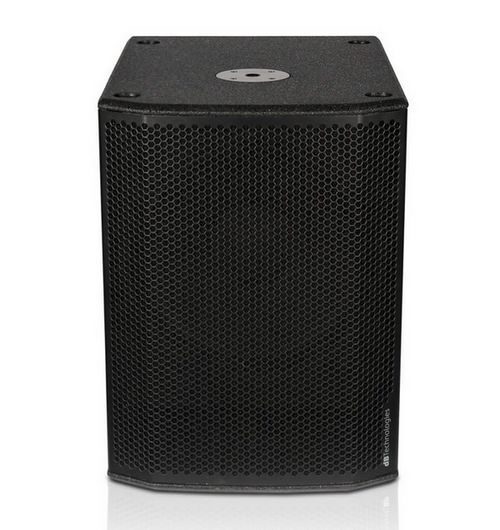

dB Technologies SUB 615 600-Watt Active 15-Inch Subwoofer Speaker Bin

Active Subwoofer

  • 600 W RMS Class D AMP
  • Selectable Stereo Balanced Input
  • Link or Xover Balanced Stereo Output Mode
  • Compact and sturdy wood cabinet
  • Lightweight
  • Polarity Switch
  • FLAT or BOOST Mode Switch

SUB615 features a 600W RMS Class D SMPS Power Amplifier and is equipped with a 15” transducer.

The system delivers outstanding sound pressure levels (up to 131dB) in spite of its compact housing, while providing a clean, impressively precise low-end reproduction.

Sub 600s’ outstanding audio performance allow user to build most of the PA systems with 1 single sub and 2 full range speakers, avoiding any external processing or crossover thanks to a balanced X-over signal to left and right speakers.

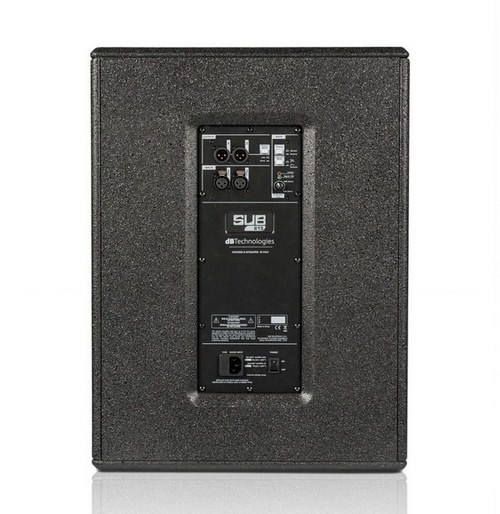

Controls on the amp panel allow user to operate with Mono or Stereo audio feed, activate polarity inversion and choose Outputs link mode (True Bypass or X-over).

Whenever a further punch is needed, a low-frequencies boost EQ can be set thanks to the Sub Mode switch.

The series comes with a full grille design in a lightweight (25 kg ) wood cabinet strengthened with a hardwearing, scratch-resistant black covering. Side handles enhance portability. The design of the top side eases subs stacking for larger systems and features a M20 pole mount thread to stack full-range speakers.


Specifications

Technical Data

  • Speaker Type: Active Subwoofer



Acoustical data

  • Frequency Response [-10dB]: 42 - 124 Hz
  • Max SPL (1 m): 131 dB
  • Directivity: omnidirectional
  • LF: 15"
  • LF Voice Coil: 2.5"



Amplifier

  • Amp Technology: SMSP digital amplifier
  • Amp Class: Class D
  • RMS Power: 600 W
  • Peak Power: 1200 W



Processor

  • Controller: 28/56 bit DSP
  • Limiter: Peak, Thermal, RMS
  • Controls: Subwoofer level, Outputs mode, Polarity, Subwoofer mode



Input

  • Signal Input: 2x XLR (balanced)
  • Signal Output: 2x XLR (balanced)



Mechanics

  • Housing: Plywood
  • Grille: Full metal grid
  • Pole Mount: M20
  • Width: 430 mm (16.92 in)
  • Height: 580 mm (22.83 in)
  • Depth: 600 mm (23.62 in)
  • Weight: 25.5 kg (56.22 lbs)
