dB Technologies VIO S118 1x18" active horn loaded flyable subwoofer, 1600 W Black VIO-S118 $ 9765 $11,908.00
How to get it Learn More
Delivery Not Available
Order Special Order - Request Availability
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

1x18" active horn loaded flyable subwoofer, 1600 W/RMS, neodymium woofer with 4" VC, 139dB maximum SPL per cabinet, 24Bit/48Khz DSP, switch mode supply with PFC, RDNet, 720x520x695mm (WxHxD), 45.1kg, BLACK

  • Active single 18” horn loaded subwoofer
  • Last generation Digipro G4 Amp Technology
  • 1600 W RMS class D DIGIPRO G4 amplifier with PFC
  • System Auto-Test for quick diagnostics
  • Integrated flying hardware (compatible with VIO L210)
  • Designed for maximum efficiency in the lower end
  • On board delay for perfect time alignment
  • On board cardioid array configuration preset
  • Modular slot for network and digital audio expansion cards

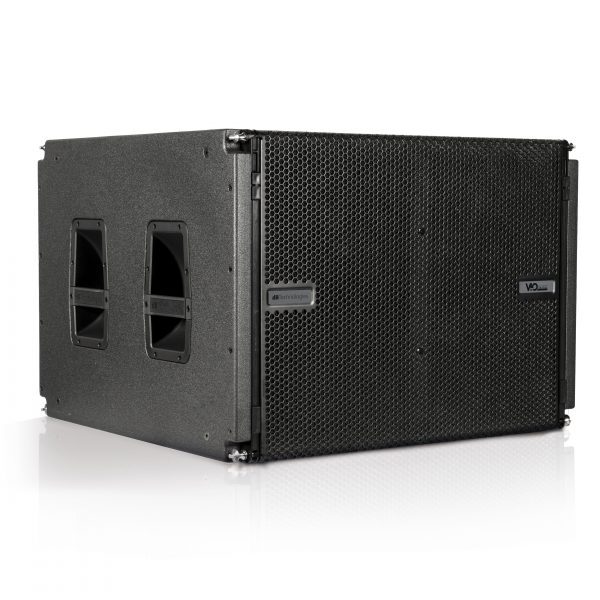

Active 1×18″ Horn Loaded Subwoofer

dBTechnologies developed a horn loaded design, while maintaining the size of a front-loaded sub cabinet, resulting in a double advantage: smaller dimension (and weight only 45,1 kg) and a remarkable lower frequencies response even at a  long distance.

This makes this sub the perfect low-end extension of VIO arrays whenever a particularly long-throw is needed.

The systems acoustical plus points are boosted by Digipro G4® 1600W Class D amplifier, the last generation of the Digipro amp technology which strongly contributed to the success of many dBTechnologies professional powered series. Equipped with PFC (Power Factor Correction) and SMPS , VIO S118 is highly resistant to line voltage fluctuations.

Digipro G4 pre-amp features a slot module allowing system monitoring and control via RD Net. Furthermore, the system is ready for future upgrades with DanteTM digital audio transmission network: in facts, VIO S118 also features a NFC system and a LED on the front grille.

The amps also allows users to run auto-test on electronics and transducers before and after use.

The amp module features an on board attenuation control and a delay module allowing to reach a max 9.9 ms delay with 0.1 ms steps. The on board cardioid preset process the sound of the backward sub in cardioid configurations (both flown or groundstacked).

S118s cabinet is made of sturdy Multiplex plywood covered with a black polyuria finish and equipped with integrated hardware allowing 1 or more subs to be flown in a sub array or on the top of a VIO L210 array.

The system can be flown via DRK-210 flybar plus FSA-VIO L210 adapter for attaching VIO L210. GSA VIO L210 is necessary for stacked configurations with VIO L210.

The dedicated DO-VIOS118 trolley can be hooked directly on flown subs easing dismantling and transport operations.

Specifications

Technical Data

  • Speaker Type: Active Horn-Loaded Flyable Subwoofer

Acoustical Data

  • Frequency Response [- 6 dB]: 36 Hz to Cut Freq (X-Over Dependent)
  • Frequency Response [- 10 dB]: 33 Hz (HPF)
  • Max SPL: 139 dB
  • LF: 1×18″, Neodymium
  • Voice Coil LF: 4 “
  • Directivity: Omnidirectional

Amplifier

  • Amp Technology: Digipro® G4
  • Amp Class: Class D
  • RMS Power: 1600 W
  • Peak Power: 3200 W
  • Cooling: Convection
  • Power Supply: 1600 W with PFC

Processor

  • Controller: DSP 32
  • AD/DA Converter: 24 bit 96 kHz
  • Limiter: RMS, Peak, Thermal
  • Delay Option:
    0-9.9 ms internal
    Steps of 0.1 ms
  • Crossover Frequency LF-HF: 60-110Hz + Full range
  • LF-Xover out slope: 24 dB/Octave

Input

  • Signal Input: 1xXLR balanced
  • Signal Output:
    1x XLR balanced (link or X-over)
    1xRJ45 LINK (RDNet)
  • Expansion Card:
    1xRJ45 IN (RDNet)
    1xRJ45 LINK (RDNet)
  • Power Socket:
    1xPowerCON TRUE1 IN
    1xPowerCON TRUE1 OUT
  • Controls:
    1x Input Attenuation Rotary Switch
    1x Rotary Encoder (Delay 9.9 ms)
    1XPolarity Inversion Switch (0° or 180°)
    1xCardioid Mode Switch
    1x X-Over Freq Switch (60-110 Hz + Full Range
    1x System Auto-test

Mechanics

  • Housing:
    Multiplex plywood
    Polyurea painted
  • Handles:
    2x Per Side
    Aluminium
  • Pole Mount: M20 Thread
  • Raincover: Included
  • Rigging Points:
    2xPick Points on top to fix DRK-210 rigging frame (stack use)
    4x Pick Points on top and 4x on bottom for rigging
  • Width: 720 mm (28.34 in)
  • Height: 520 mm (20.47 in)
  • Depth: 695 mm (27.36 in)
  • Weight: 45.1 kg (99.42 lbs)

Note: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
