Technical Data

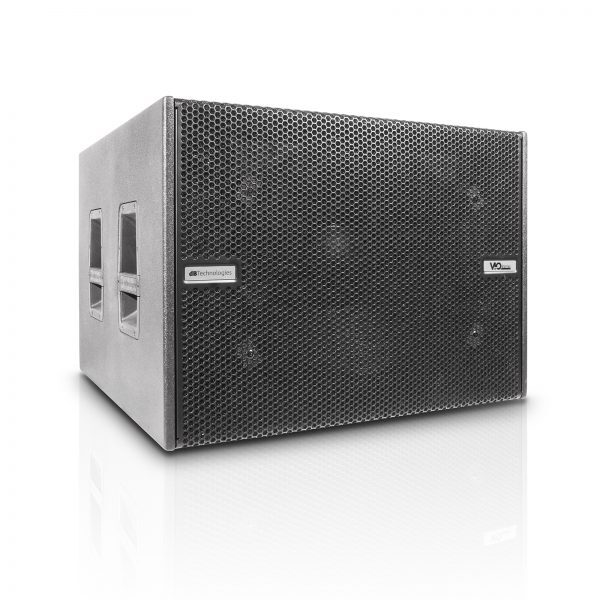

- Speaker Type: Active Bass Reflex Subwoofer
Acoustical Data
- Frequency Response [- 6 dB]: 35 Hz to Cut Freq (X-Over Dependent)
- Frequency Response [- 10 dB]: 32 Hz
- Max SPL: 139 dB

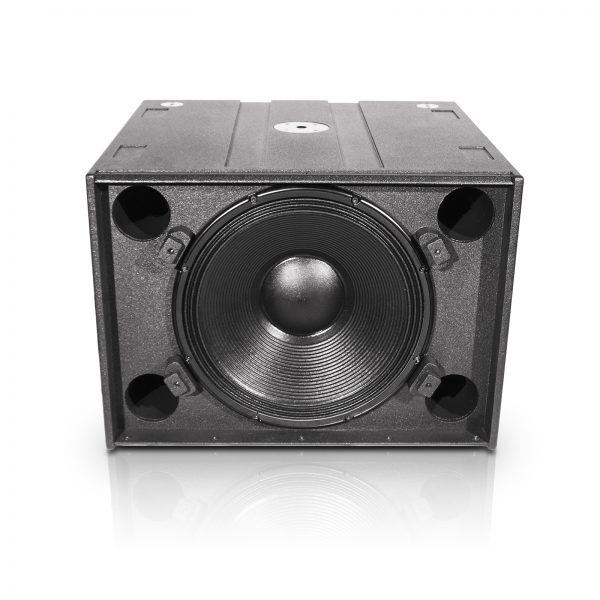

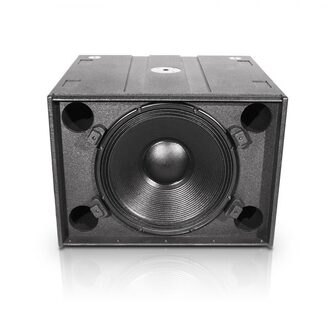

- LF: 1×18″
- Voice Coil LF: 4 “
- Directivity: Omnidirectional
Amplifier
- Amp Technology: Digipro® G4
- Amp Class: Class D
- RMS Power: 1600 W
- Peak Power: 3200 W
- Cooling: Convection + Internal Fan
- Power Supply: Full-range PSU with PFC
Processor
- Controller: DSP 32 Bit
- AD/DA Converter: 24 bit 96 kHz
- Limiter: RMS, Peak, Thermal
- Delay Option:
0- 9.9 ms | steps of 0.1 ms [on-board]
0 – 62 ms [via RDNet] - Crossover Frequency LF-HF: Selectable 60-110Hz + Full range
- LF-Xover out slope: 24 dB/Octave
Input
- Signal Input: 1xXLR balanced
- Signal Output:
1x XLR balanced (link or X-over)
1xRJ45 LINK (RDNet) - Expansion Card:
RDNet Card (1x RJ45 IN 1x RJ45 Link) [included]
Dante card [optional] - Mains Connections:
1x PowerCON TRUE1 In
1x PowerCON TRUE1 Out - Controls:
1x Input Attenuation Rotary Switch
1x Rotary Encoder (Delay 9.9 ms)
1x Polarity Inversion Switch (0° or 180°)
1x Cardioid Mode Switch
1x X-Over Freq Switch (60-110 Hz + Full Range
1x System Auto-test
Mechanics
- Housing:
Multiplex plywood
Polyurea painted - Handles:
2x Per Side
Aluminium - Pole Mount: M20 Thread
- Raincover: Included
- Width: 720 mm (28.34 in)
- Height: 520 mm (20.47 in)
- Depth: 695 mm (27.36 in)
- Weight: 47 kg (103.62 lbs)
Note: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
