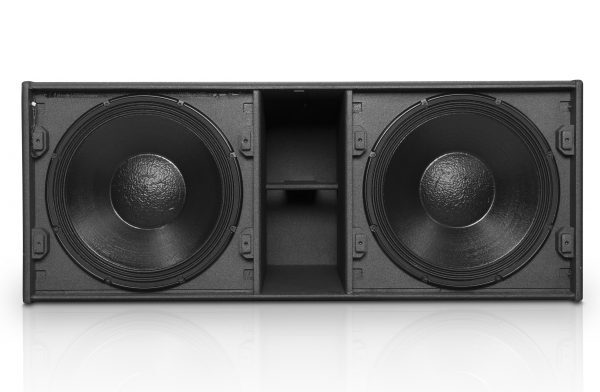

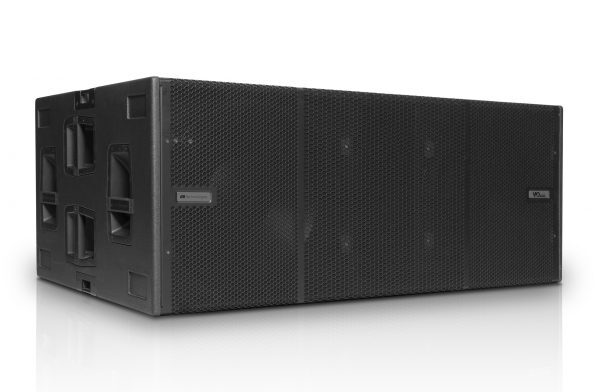

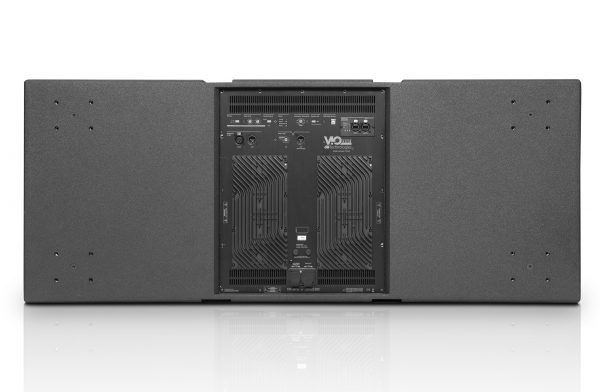

dB Technologies VIO S218 AOR 2x18" active bass reflex subwoofer, 3200 W Black VIO-S218 $ 15741 $19,196.00
How to get it Learn More
Delivery Not Available
Order Special Order - Request Availability
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

AOR 2x18" active bass reflex subwoofer, 3200 W/RMS, neodymium woofers with 4" VC, 143dB maximum SPL per cabinet, 24Bit/96Khz DSP, switch mode supply with PFC, RDNet, 1300x520x800mm (WxHxD), 85.6kg

  • 2X 18” NEODYMIUM WOOFERS
  • 3200W RMS DIGIPRO G4 AMP TECHNOLOGY
  • FULL RANGE SMPS WITH PFC
  • SMPS 380V RESISTANT
  • FREQUENCY RANGE EXTENDING DOWN TO 28 HZ (-6DB)
  • OPTO-ISOLATED FLOATING PREAMP BOARD
  • MODULAR SLOT FOR NETWORK AND DIGITAL AUDIO EXPANSION CARDS
  • ON BOARD DELAY UP TO 9.9MS
  • CARDIOID STACK PRESET BUTTON
  • NFC™ + FRONT LED IDENTIFICATION SYSTEM
  • SYSTEM TEST FOR QUICK TRANSDUCERS DIAGNOSTICS
  • IPOS INTELLIGENT POWER-ON SEQUENCE
  • FULL COMPATIBILITY WITH VIO S318 ACCESSORIES
  • RDNET CARD INSTALLED

Active 2×18″ Neodymium Subwoofer

Featuring a dual 18 subwoofer pairing in a voluminous bass-reflex housing, VIO S218 encompasses a vigorous audio performance and a ultra low frequency punch, extending down to 28 Hz: the perfect bottom end addition to large VIO L212 sound reinforcement systems.

The systems acoustical potential is driven by 2 Digipro G4® Class-D amplifiers delivering a total amount of 3200 W RMS and making this sub the perfect low-end extension of VIO arrays in larger sound reinforcement applications.

The switched mode power supply is equipped with PFC (Power Factor Corrector) which greatly improves the efficiency of the system. This also grants a worldwide compatibility of the power supply (from 100V to 240V 50/60Hz) and limits power consumption. Furthermore, the power supply is 380V resistant, so the final amplifiers will be switched off in case of an undesired strike of 380V current, saving them from any damage.

Exclusive technology of VIO S318 amplifier is IPOS (Intelligent Power-On Sequence), a circuit that controls the sequence in which the main power supplies of all units within an array ramp up.

The preamplifier is equipped with a modular slot for expansion cards: as a default, VIO S218 is equipped with dBTechnologies RDNet card, for real time remote control via Aurora Net software. The system is ready for future upgrades with Audinate DanteTM AoIP protocol.

VIO S218 comes with built-in technologies: Near Field Communication (NFC) proximity sensors are used to determine the position of each box within an array. A LED bulb on the front of the enclosure contributes to help the user to recognise, identify and match each box on the remote control software Aurora Net.

Users can run system-test on transducers and a real time impedance control. The on-board delay module allows VIO S218 to reach a max 9.9ms delay with 0.1 ms steps. A cardioid stack preset button automatically process the sound of the backward sub in gradient inverted stack configurations, in order to reach maximum cancellation on the rear side.

The preamplifiers floating audio input design grants a digital optical isolation between earth ground from the mains and the audio ground flowing into the preamplifier board. This galvanic isolation greatly improves resistance to interferences and any unwanted buzzing and noises.

Thanks to the integrated USB port, the user will perform firmware upgrades and diagnostics analysis, by downloading telemetry data on system performance and failures.



Specifications

Technical Data

  • Speaker Type: Active Bassreflex subwoofer

Acoustical Data

  • Frequency Response [- 10 dB]: 27 Hz (HPF)
  • Frequency Response [- 6 dB]: 28 Hz to cut frequency (Xover dependent)
  • Max SPL: 143 dB
  • LF: 2×18 Neodymium
  • Voice Coil LF: 4
  • Directivity: Omnidirectional

Amplifier

  • Amplifier: 3200 W RMS [2x 1600 W RMS Class-D Digipro® G4]
  • Cooling: Passive convection, internal fan
  • Power Supply: Full-range SMPS with PFC (100V~-240V~, 50-60Hz)

Processor

  • Controller: DSP 32 bit
  • AD/DA Converter: 24 bit/96 kHz
  • Limiter: Peak, RMS, Thermal
  • Delay Option: 0 – 9.9 ms internal | steps of 0.1 ms [on-board]
  • Crossover Frequency LF-HF: Selectable 60-110 Hz + Full Range (8 steps)
  • LF-Xover out slope: 24 dB/Octave

Input

  • Signal Input: 1 x XLR balanced, 1 x RJ45 Link (RDNet)
  • Signal Output: 1x XLR balanced, 1 x RJ45 Link (RDNet)
  • Power Socket:
    1x PowerCON TRUE1 In
    1x PowerCON TRUE1 Out
  • Controls:
    1x Input Attenuation Rotary Encoder
    2x Delay Rotary Encoder (0-9.9 ms)
    1x Polarity Inversion Switch (0° or 180°)
    1x Cardioid mode Switch
    1x X-Over Frequency Rotary Encoder (8 steps)
  • Special Features:
    NFCTM and Frontal LED Identification System
    380V Resistant SMPS
    IPOS Intelligent Power-On Sequence
    Opto-isolated floating pre-amp
    System Test (transducers diagnostics)

Mechanics

  • Housing: Multiplex plywood – Polyurea painting
  • Handles: 4x Side. Aluminium
  • Raincover: Included
  • Rigging Points: 2x Pick Points on top for DRK-210 rigging frame
  • Width: 1300 mm (51.18 in)
  • Height: 520 mm (20.47 in)
  • Depth: 800 mm (31.5 in)
  • Weight: 85.6 kg (188.72 lbs)

Note: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
