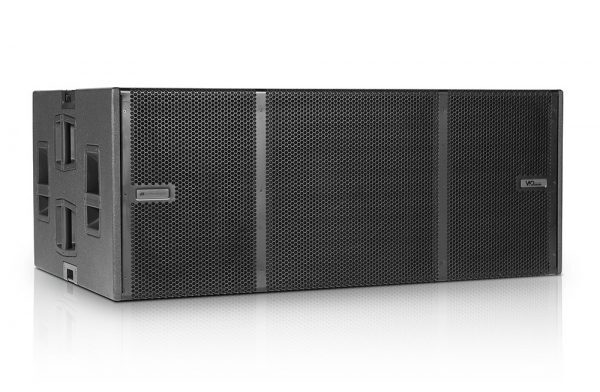

dB Technologies VIO S318 3x18" active bass reflex, semi-horn loaded subwoofer, 2700 W Black VIO-S318 $ 14304 $17,444.00
How to get it Learn More
Delivery Not Available
Order Special Order - Request Availability
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

3x18" active bass reflex, semi-horn loaded subwoofer, 2700 W/RMS, neodymium woofers with 4" VC, 143dB maximum SPL per cabinet, 24Bit/48Khz DSP, switch mode supply with PFC, RDNet, 1300x520x800mm (WxHxD), 103.9kg

  • ACTIVE 3×18″ BASSREFLEX SEMI-HORN LOADED SUBWOOFER
  • INTERNAL DESIGN TO MAXIMISE IN-PHASE FRONTAL EMISSION
  • ON-BOARD DELAY FOR PERFECT TIME ALIGNMENT
  • ON-BOARD CARDIOID ARRAY CONFIGURATION PRESET
  • FREQUENCY RANGE EXTENDING DOWN TO 35HZ
  • NETWORK READY WITH AN INTEGRATED RDNET PORT

3 x 18″ Active Bass Reflex, Semi-horn Loaded Subwoofer

  • Designed to maximise in-phase frontal emission
  • On-board delay for perfect time alignment
  • On board cardioid array configuration preset
  • Frequency range extending down to 35Hz
  • Network ready with an integrated RDNet port

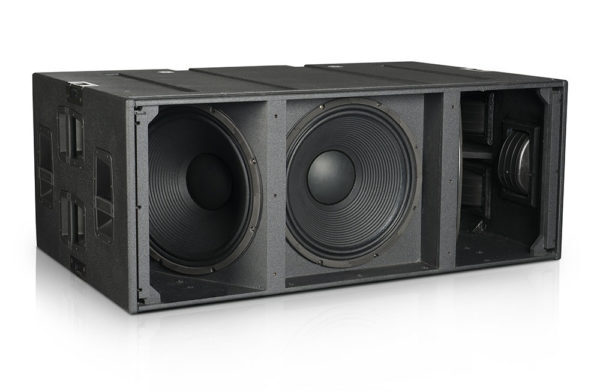

Vio S318 is equipped with 3 18” bassreflex half-horn loaded woofers, configured in order to maximise frontal emission. The 3 voice coils are in facts mechanically aligned in order to achieve a perfect phase response.

The 3 DIGIPRO G3 amplifiers deliver a total 2700 W RMS power, allowing the system to reach up to 143dB SPL.

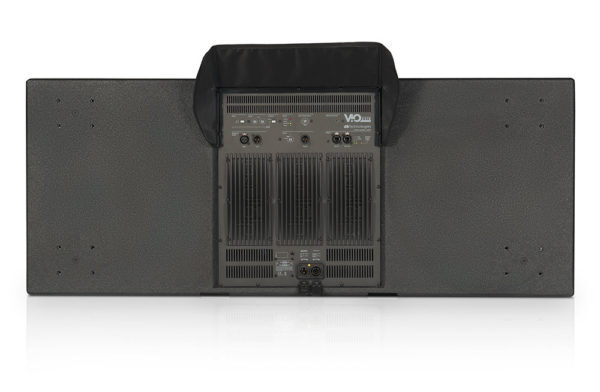

The system features an integrated delay module achieving up to 9.9 ms delay with 0,5  ms steps. The crossover module sets the low pass filter alongside with the highpass filter for the integrated crossover output. The system also features an attenuation control, a polarity switch and a RDnet port for remote control.

The high quality multiplex housing is reinforced with a robust polyurea finishing and equipped with 5 aluminium handles per side.

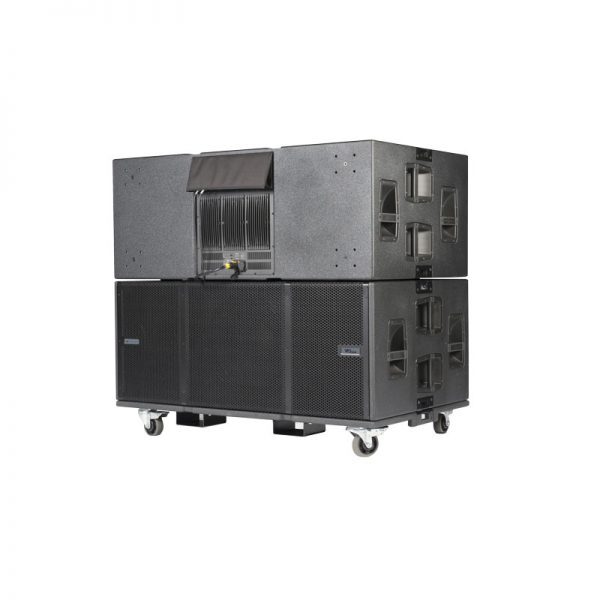

The dolly transport DT-318 allows to transport up to 3 subs simultaneously, both on wheels or on lift track. As an alternative to the dolly, wheels can be mounted on the rear side of the cabinet.

Specifications

Technical Data

  • Speaker Type: Active Bassreflex Semi-Horn-Loaded Subwoofer
  • Acoustical data
  • Frequency Response [- 6 dB]: 39 Hz to Cut Freq (X-Over Dependent)
  • Frequency Response [- 10 dB]: 35 Hz (HPF)
  • Max SPL: 143 dB
  • LF: 3×18″
  • Voice Coil LF: 4 “
  • Directivity: Omnidirectional



Amplifier

  • Amp Technology: Digipro® G3
  • Amp Class: Class D
  • RMS Power: 2700 W
  • Peak Power: 5400 W
  • Cooling: Convection
  • Power Supply: 2700 W SMPS with Auto Range PSU



Processor

  • Controller: DSP 64 bit
  • AD/DA Converter: 24 bit/48 KHz
  • Limiter: RMS, Peak, Thermal
  • Delay Option:
    0-9.9 ms internal
    Steps of 0.1 ms
  • Crossover Frequency LF-HF: 70-105Hz + Full range
  • LF-Xover out slope: 24 dB/Octave



Input

  • Signal Input:
    1xXLR balanced
    1xRJ45 LINK (RDNet)
  • Signal Output:
    1x XLR balanced
    1xRJ45 LINK (RDNet)
  • Power Socket:
    1xPowerCON TRUE1 IN
    1xPowerCON TRUE1 OUT
  • Controls:
    1x Input Attenuation Rotary Switch
    2x Rotary Encoder (Delay 9.9 ms)
    1XPolarity Inversion Switch (0° or 180°)
    1xCardioid Mode Switch
    1x X-Over Freq Switch (70-105 Hz + Full Range (steps of 5 Hz)



Mechanics

  • Housing:
    Multiplex plywood
    Polyurea painted
  • Handles:
    4x Per Side
    Aluminium
  • Raincover: Included
  • Rigging Points: 2xPick Points on top to fix DRK-210 rigging frame
  • Width: 1300 mm (51.18 in)
  • Height: 520 mm (20.47 in)
  • Depth: 800 mm (31.5 in)
  • Weight: 103.9 kg (229.06 lbs)
