dB Technologies VIO W10 Active 2 way wedge monitor, ultra slim design Black VIO-W10 $ 3150 $3,842.00
How to get it Learn More
Delivery Not Available
Order Special Order - Request Availability
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

2 Way Active Wedge Monitor

The ultra-slim wedge speaker designed to be discreetly integrated in broadcast studios, theatre stages, congress facilities and wherever an unobtrusive and versatile wedge is needed.

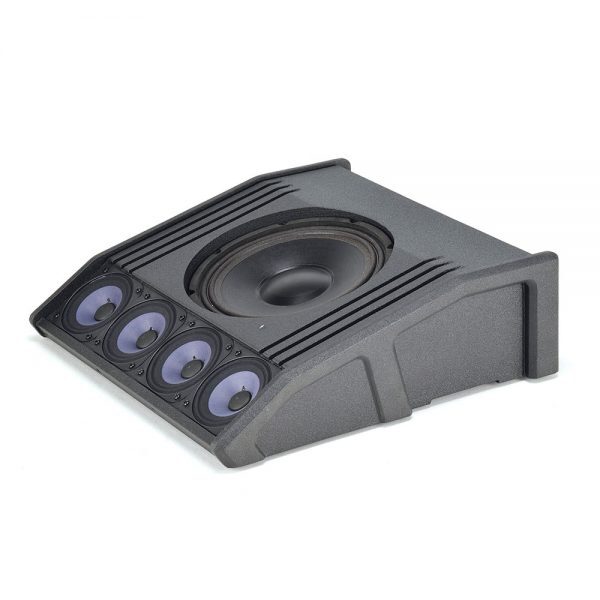

This 2-way system is equipped with 4×4 neodymium HF speakers and 1×10 woofer, placed in an exclusive anti-feedback acoustic configuration. The cabinet is driven by a 400 W RMS Digipro G3 amplifier and full remote control is enabled via RD-Net and Aurora Net software.

Digital Sound Processing allow a variable acoustic focus via on-board presets or via software. As a matter of facts, user can easily adapt the wedge performance to the application in use and to the speakers needs, choosing among 4 different options: default, close narrow, close wide, far.

VIO W10s wooden cabinet comes with a black polyurea finish and an exclusive front-rear-grille design which contributes to a peculiar yet discreet look, with a special attention to details. In facts, an integrated handle is hidden on left side to ease transport and a special groove carved on bottom side facilitates the passage of cables under the cabinet, allowing a clean and tidy look on stage.

  • Active 2-way wedge monitor
  • Innovative ultra-slim design
  • Height 165 mm only
  • 400W RMS Class-D amplifier
  • Anti-feedback acoustic configuration
  • Variable acoustic focus
  • Remote control via RDNet
  • Exclusive front-rear grille design

Specifications

Technical Data

  • Speaker Type: 2-Way Active Wedge Monitor

Acoustical Data

  • Usable Bandwith [- 10 dB]: 58 – 15,000 Hz
  • Frequency Response [- 6 dB]: 68 – 14,000 Hz
  • Max SPL: 126 dB
  • HF: 4x 4″ – 1″ v.c. Neodymium
  • LF: 1x 10″ – 2.5″ v.c.
  • Horizontal Directivity: Dependent on Focus Preset
  • Vertical Directivity: Dependent on Focus Preset

Amplifier

  • Amplifier: 400 W RMS Class D Digipro® G3
  • Cooling: Convection
  • Power Supply: Auto-range SMPS

Processor

  • Controller: DSP 28/56 bit
  • Converter AD/DA: 24 bit/48 kHz
  • Limiter: Peak, RMS, Thermal
  • Processing (filters): Linear Phase FIR Filters

Input

  • Signal Input: 1x XLR female, 1x RJ45 Link (RDNet) , 1 x USB (Data Service)
  • Signal Output: 1xXLR male, 1x RJ45 Link (RDNet)
  • Power Socket:
    1x PowerCON TRUE1 In
    1xPowerCON TRUE1 Out
  • Controls:
    1x Rotary Encoder (8 presets)
    1 x Input Sensitivity Encoder
    1xMic /line switch
    1x On LED
    1x Status -LED
    1x Signal LED
    1x Limiter LED

Mechanics

  • Housing: Wooden cabinet, Polyurea painting
  • Handles: 1 on left side
  • Width: 450 mm (17.71 in)
  • Height: 165 mm (6.49 in)
  • Depth: 480 mm (18.89 in)
  • Weight: 13.7 kg (30.20 lbs)

Note: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
