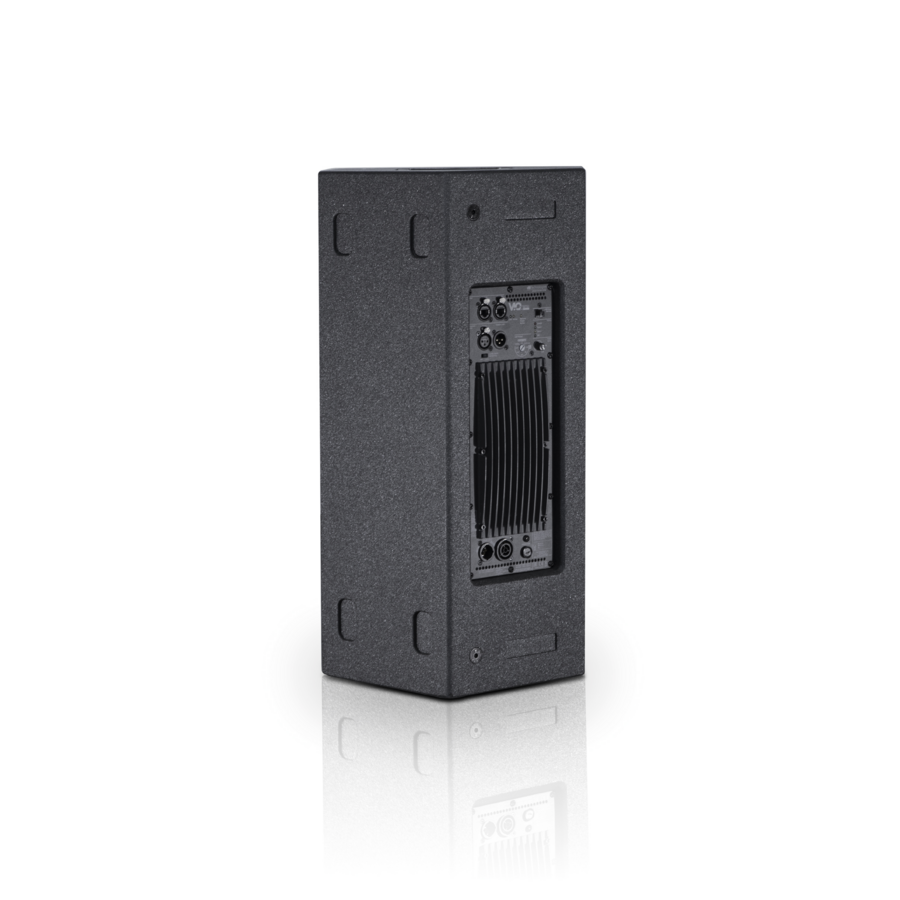

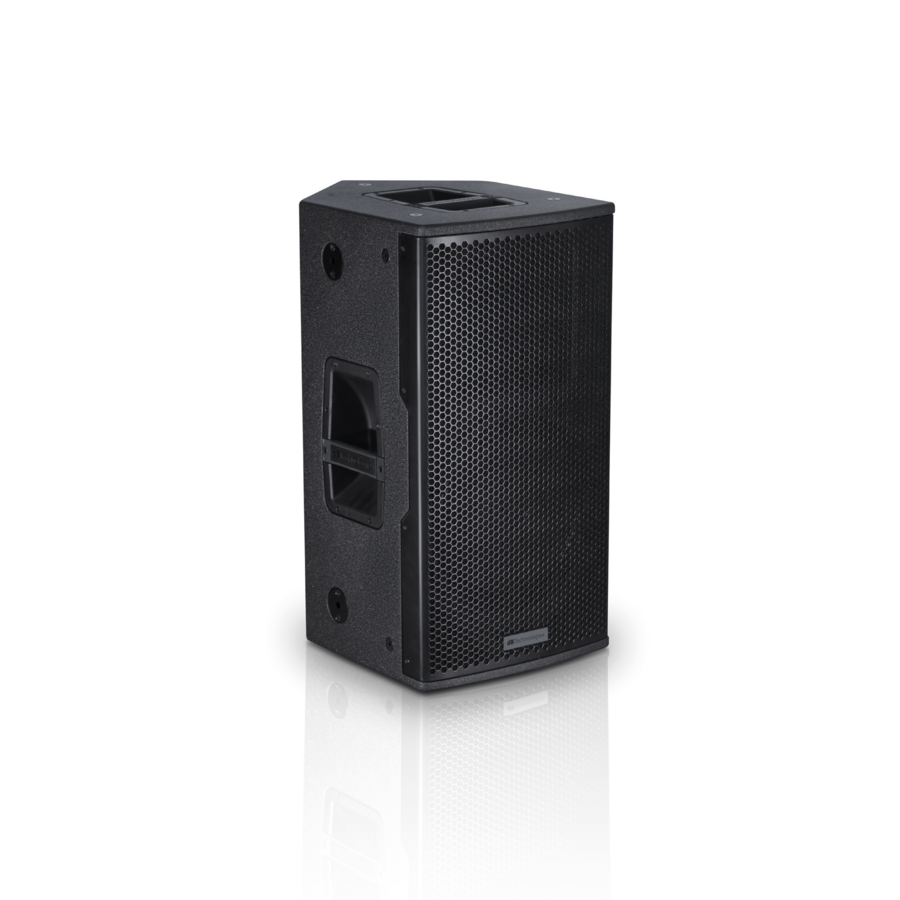

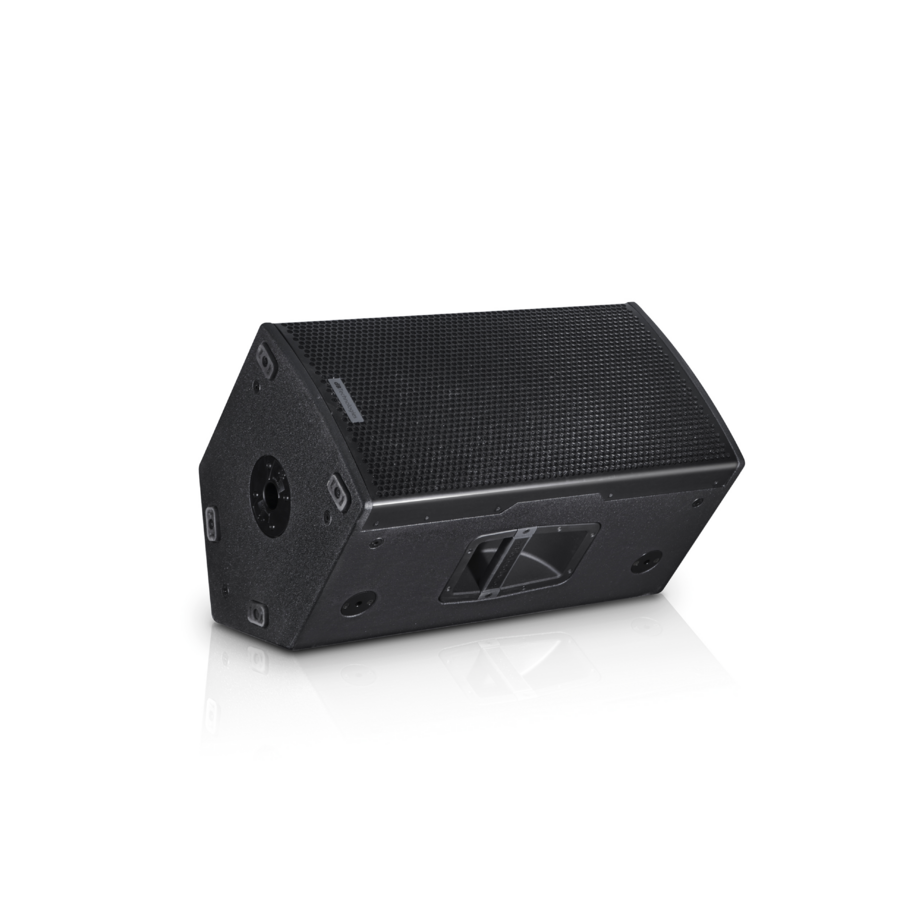

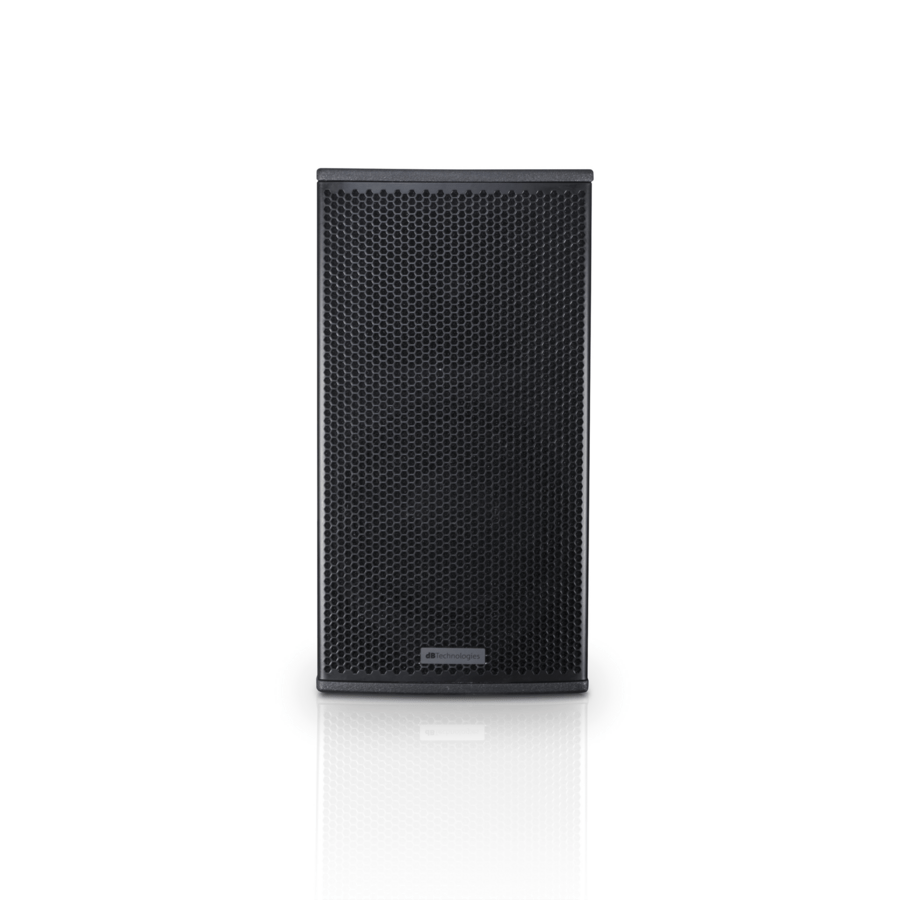

dB Technologies VIO X12, 900-Watt 2-Way Active Speaker Bin VIO-X12 $ 3911 $4,770.00
How to get it Learn More
Delivery Not Available
Order Special Order - Request Availability
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

A feature-mix boosting high-end audio performance as well as advanced versatility. As a matter of facts, VIO X cabinets serve impressively as a stand alone PA system that can be stacked, flown or wall-mounted, as a full range PA or in combination with VIO S118 and VIO 118R subwoofers, but also act as the perfect side-fill, delay or stage monitoring system in larger VIO sound reinforcement applications.
The robust wooden enclosure allows horizontal use for monitoring purposes and is provided with a 36mm pole mount, and rigging points facilitating fixed installations with dedicated vertical and horizontal brackets.
All VIO X cabinets are powered by on board Digipro G3 900 W RMS providing majestic sound pressure levels in compact size and very limited weight. Advanced sound processing featuring Linear Phase FIR Filters allows VIO Xs to deliver an extremely coherent audio performance, standing out for its intelligibility and clarity from every listening position.
On board presets let users adapt High Pass Filters to the chosen application, as well as dedicated EQ presets for Wedge or Fullrange mode. Last but not least, VIO X is equipped with RDNet port allowing monitoring and full remote control in real time via Aurora Net software (Windows and Mac).

Specifications

Technical Data
Speaker Type 2 Way Active Loudspeaker

Acoustical data
Frequency Response [-10dB] 62 - 22.000 Hz
Frequency Response [-6dB] 79 - 21.000 Hz
Max SPL 132 dB
HF 1 x1.4”, 2.5" Neodymium
LF 1x 12”, 3" Neodymium
Directivity 60° x 40°
Horn Rotatable Horn

Amplifier
Amplifier 900 W RMS Class-D Digipro® G3
Cooling Class-Dconvection
Power Supply Auto-range SMPS

Processor
Controller DSP 28/56 bit
AD/DA Converter 24 bit/48 kHz
Limiter Peak, RMS, Thermal
Processing FIR Linear Phase Filters

Input
Signal Input 1 x XLR balanced, 1 x RJ45 Link (RDNet)
Signal Output 1x XLR balanced, 1 x RJ45 Link (RDNet)
Power Socket 1x PowerCON TRUE1 In
  1x PowerCON TRUE1 Out
Controles 1x Rotary Encoder (8x EQ, HPF presets)
  1x Input sensitivity potentiometer
  1x Mic / line switch
Special Features Opto-isolated floating pre-amp

Mechanics
Housing Wooden Cabinet, Polyurea painting
Handles 1x (top), 2x (side)
Wedge Angle Monitor Use 50°
Rigging points 12x M10 Thread + 4x Fast lock pins
Pole Mount Ø36 mm
Width 340 mm (13.38 in)
Height 650 mm (25.5 in)
Depth 445 mm (17.51 in)
Weight 20.7 kg (45.63 lbs)
