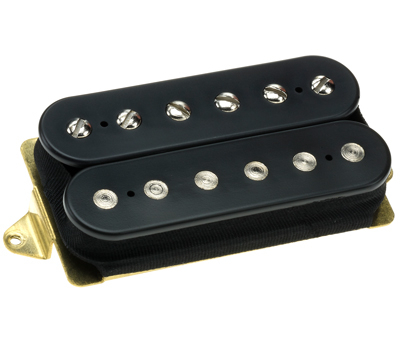

Have you ever heard a bridge pickup that made a guitar sound like a giant mosquito attack? If you’ve run into this problem, The Tone Zone® is the solution. The Tone Zone® is hot enough to qualify as a high-output pickup, but it has a wider dynamic range — hard picking will produce a lot of power, and softer picking will be much cleaner and quieter. It’s got tremendous bass and low-mid response to reinforce the bottom end and make the overall sound bigger. The highest single notes have depth, and chords sound huge. Patented dual-resonance coils reproduce more overtones than you’d expect from such a fat-sounding pickup. It makes a great match with an Air Norton™, PAF Joe™, or PAF Pro®, and split-coil mode produces an excellent single-coil sound as well.
F-spaced pickups measure 2.01" (51 mm) center-to-center from the first polepiece to the sixth. Standard-spaced pickups measure 1.90" (48 mm). Although some players believe that F-spaced pickups are only for the bridge position of tremolo bridge guitars, many guitars with fixed bridges (including post-1998 Gibson® and Epiphone® Les Paul®, SG® and semi-hollow guitars) should have F-spaced pickups in the bridge position. Most tremolo equipped guitars that have a nut width of 1-11/16” (43mm) or more should also use an F-spaced pickup in the neck position. If you’re replacing a bridge-position pickup and you're not sure what your string-spacing is, it's usually better to get an F-spaced model. It is not necessary for the strings to pass exactly over the center of the polepieces for best performance, but it is wise to avoid a situation where the E strings are sitting completely outside of the outer polepieces.
The Tone Zone® is hot enough to qualify as a high-output pickup, but it has a wider dynamic range — hard picking will produce a lot of power, and softer picking will be much cleaner and quieter. Many models can be used in the neck position, from the Air Classic™ to the Air Zone™; the PAF Pro® and the FRED® are also good choices. Higher-output single-coil replacements like The Cruiser® and Fast Track 1™ are also recommended.
Download Installation Instructions Find the right wiring diagram for your guitar
Wiring: 4 Conductor Magnet: Alnico 5 Output mV: 375 DC Resistance: 17.31 Kohm Year of Introduction: 1991 Patent: 4501185
Pickup Dimensions
