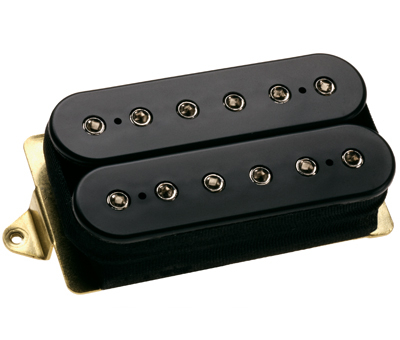

The D Activator™ Bridge has an enriched harmonic quality and the notes want to sing. Both the D Activator™ Neck and Bridge pickups were designed to eliminate the sterile edginess commonly associated with active pickups. The D Activator™ Bridge pickup is about 25% louder than the D Activator™ Neck. Since we were developing both pickups as a set from the ground up, we adjusted the volume levels on the pickups so they are balanced. That way when you switch from the neck to the bridge, you don’t hear a drop in volume — also a frequent problem with active pickups — and they don’t use batteries.
F-spaced pickups measure 2.01" (51 mm) center-to-center from the first polepiece to the sixth. Standard-spaced pickups measure 1.90" (48 mm). Although some players believe that F-spaced pickups are only for the bridge position of tremolo bridge guitars, many guitars with fixed bridges (including post-1998 Gibson® and Epiphone® Les Paul®, SG® and semi-hollow guitars) should have F-spaced pickups in the bridge position. Most tremolo equipped guitars that have a nut width of 1-11/16” (43mm) or more should also use an F-spaced pickup in the neck position. If you’re replacing a bridge-position pickup and you're not sure what your string-spacing is, it's usually better to get an F-spaced model. It is not necessary for the strings to pass exactly over the center of the polepieces for best performance, but it is wise to avoid a situation where the E strings are sitting completely outside of the outer polepieces.
An interesting fact about the most popular active bridge pickups is that they aren’t incredibly loud. Instead, they have a strong, focused attack that hits the amp very hard and makes them ‘feel’ more powerful than they actually spec out to be. This is an important characteristic that we needed to capture with the D Activator™ bridge pickup. We also wanted to avoid the limiting effect that can occur with active pickups when they are played hard. Our pickup is passive with a lot of headroom, and it responds quickly and accurately to changes in pick attack. A hard pick attack doesn’t cause the signal to flatten out, and picking more softly or rolling the volume control down lets the sound clean up naturally. Like all passive pickups, D Activator™ pickups require controls with a minimum value of 250Kohms. 500K is the standard all around value, and our 1Megohm tone control is best for long cable runs.
Download Installation Instructions Find the right wiring diagram for your guitar
Wiring: 4 Conductor Magnet: Ceramic Output mV: 470 DC Resistance: 11.41 Kohm Year of Introduction: 2007 Patent: 4501185
Pickup Dimensions
