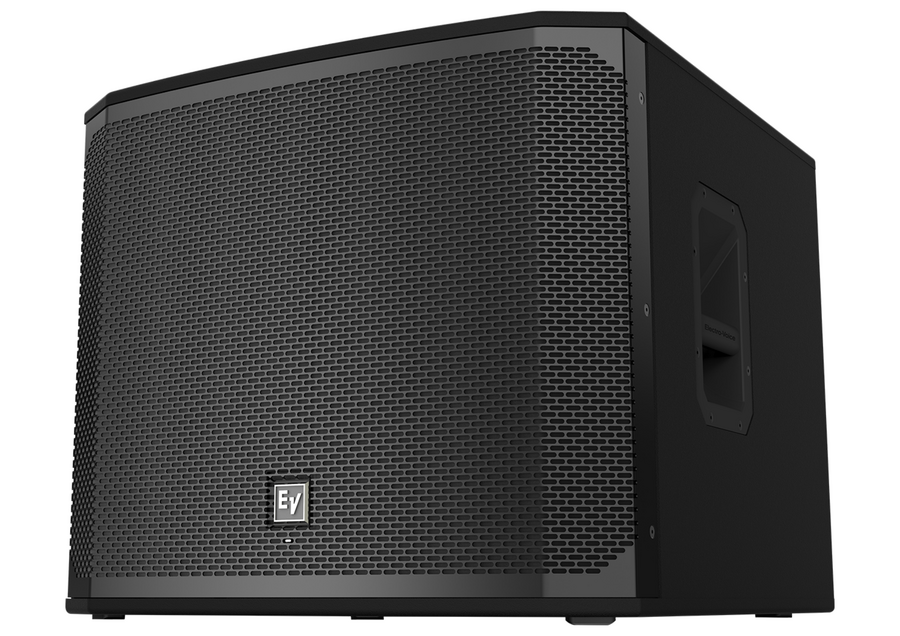

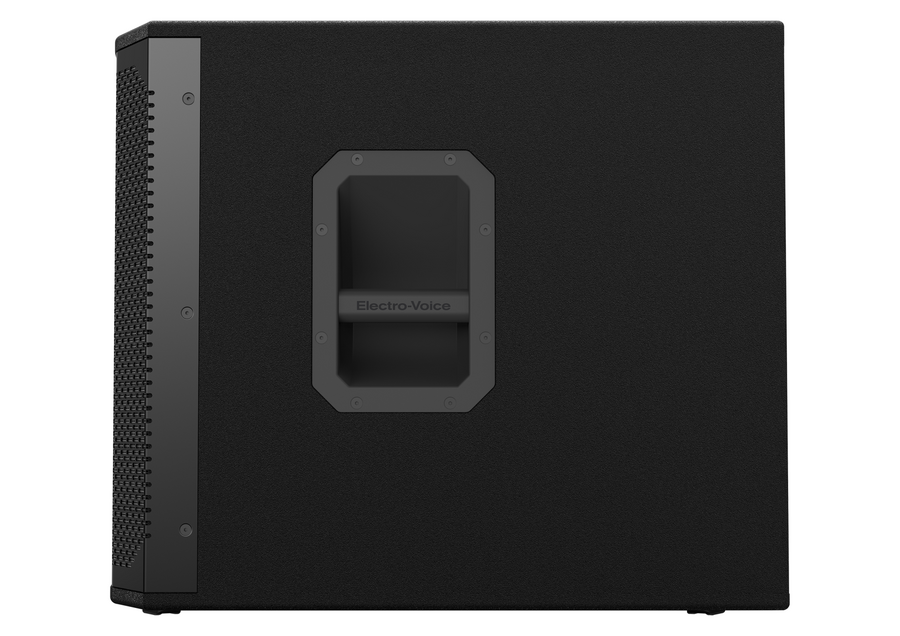

Electro Voice EKX-18S Passive 18” Subwoofer, 1600W EVLEKX-18S $ 1559 $2,073.50
How to get it Learn More
Delivery Not Available
Order Special Order - Request Availability
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

The EKX series is the newest member of the Electro-Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology — all in acompact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications. The EKX series features eight (8)models (four (4) powered and four (4) passive), including 12-inch and 15-inch two-waymodels and 15-inch and 18-inch subwoofers.



EV-engineered components, Signal Synchronized Transducers (SST) wave guide design provides precise coverage and superior sound quality at high SPLs. award-winning industrial design — with robust wood enclosures and durable finish — ensures that EKX speakers look asgreat as they sound.



Passive EKX models deliver up to 134 dB SPL utilizing high-sensitivity transducers designedand engineered by EV (12-inch EVS-12M woofer / 15-inch EVS-15M woofer, each coupled witha DH-1M 1-inch titanium compression driver; 15-inch EVS-15C subwoofer / 18-inch EVS-18Csubwoofer).

Specifications

Frequency Range (-10 dB) 35 Hz - 300kHz (Half Space Measurement)
Minimum Impedance 7.0Ω
Speaker Type Subwoofer
Woofer Size 18inch
Powered or Passive Passive
Frequency Response (-3 dB)¹ 50 Hz - 100Hz (Half Space Measurement)
Max. SPL/1m (calc)² 134dB
LF Transducer EVS-18C 457 mm (18 in)
Power Rating 1600W
Connector Type Dual NL4
Enclosure Material 15 mm, plywood with EVCoat
Grille 18 AWG steel with powdercoat
Height 20.47" (520mm)
Width 23.86" (606mm)
Recommended High-Pass Frequency 30Hz
Depth 24.09" (612mm)
Weight Net 70.11lbs (31.8kg)
Shipping Weight 88.41lbs (40.1kg)
Family EKX
Nominal Impedance
Axial Sensitivity (SPL, 1 W @ 1 m) 96dB
Power Handling (Continuous / Peak) 400 W/1600W
Maximum SPL 134dB
Passive Power Handling 1600W peak

Features

  • 1600 W (peak), 134 dB peak SPL on the EKX-18S utilizing highsensitivity transducers designed and engineered by EV.
  • Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
  • Large slot ports for low distortion and excellent bass extension.
  • Metal grille reinforcement bar (two bars on the EKX-18S).
  • M20 threaded pole mount plate.
