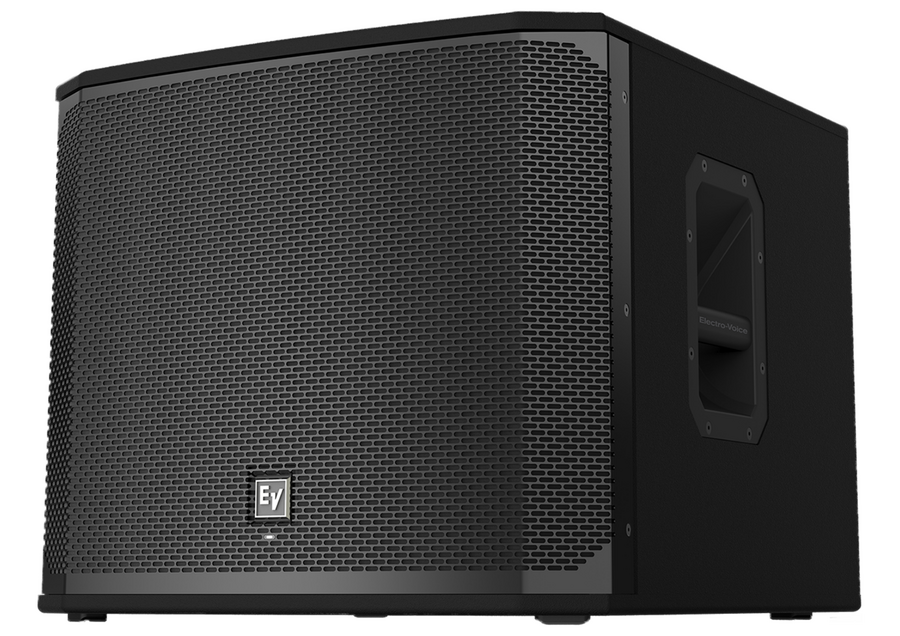

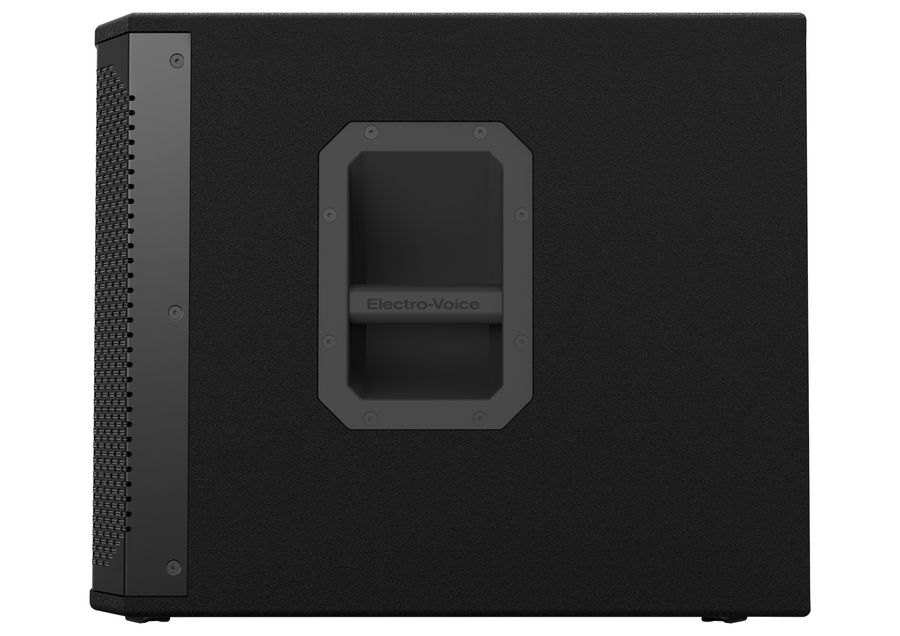

Electro Voice EKX-15S Passive Portable 15" Subwoofer EVLEKX-15S $ 1339 $1,777.60
How to get it Learn More
Delivery Not Available
Order Special Order - Request Availability
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

The EKX series is the newest member of the Electro-Voice portable loud speaker family, and combines legendary EV sound quality and reliability with the latest technology — all in acompact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications. The EKX series features eight (8)models (four (4) powered and four (4) passive), including 12-inch and 15-inch two-way models and 15-inch and 18-inch subwoofers.



EV-engineered components, Signal Synchronized Transducers (SST) waveguide designprovides precise coverage and superior sound quality at high SPLs. award-winning industrialdesign — with robust wood enclosures and durable finish — ensures that EKX speakers look asgreat as they sound.



Passive EKX models deliver up to 134 dB SPL utilizing high-sensitivity transducers designedand engineered by EV (12-inch EVS-12M woofer / 15-inch EVS-15M woofer, each coupled witha DH-1M 1-inch titanium compression driver; 15-inch EVS-15C subwoofer / 18-inch EVS-18Csubwoofer).



EKX passive models are ideal for portable and installed applications, with lightweight andcompact 15-mm wood enclosures with internal bracing, durable finish, eight (8) M10 threadedmounting points (full-range only), aluminum pole-mounts, and all-metal handles.

Specifications

Frequency Range (-10 dB) 40 Hz - 300kHz (Half Space Measurement)
Minimum Impedance 7.5Ω
Speaker Type Subwoofer

Woofer Size 15inch
Powered or Passive Passive
Frequency Response (-3 dB)¹ 60 Hz - 100Hz (Half Space Measurement)
Max. SPL/1m (calc)² 133dB
LF Transducer EVS-15C 381 mm (15 in)
Power Rating 1600W
Connector Type Dual NL4
Enclosure Material 15 mm, plywood with EVCoat
Grille 18 AWG steel with powdercoat
Height 17.91" (455mm)
Recommended High-Pass Frequency 35Hz
Width 20.87" (530mm)
Depth 21.69" (551mm)
Weight Net 54.9lbs (24.9kg)
Shipping Weight 69lbs (31.3kg)
Family EKX
Passive Power Handling 1600W peak
Nominal Impedance 8Ω
Axial Sensitivity (SPL, 1 W @ 1 m) 95dB
Power Handling (Continuous / Peak) 400 W/1600W
Maximum SPL 133dB (Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating)
