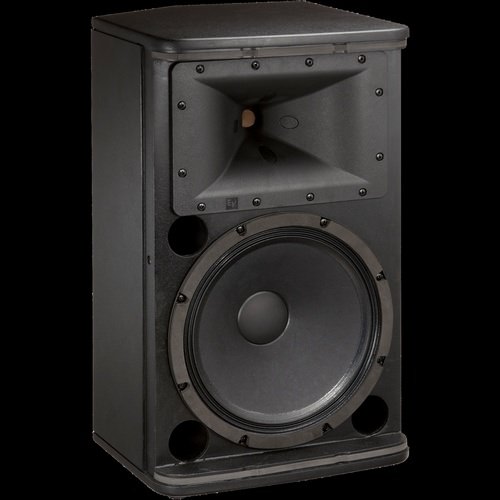

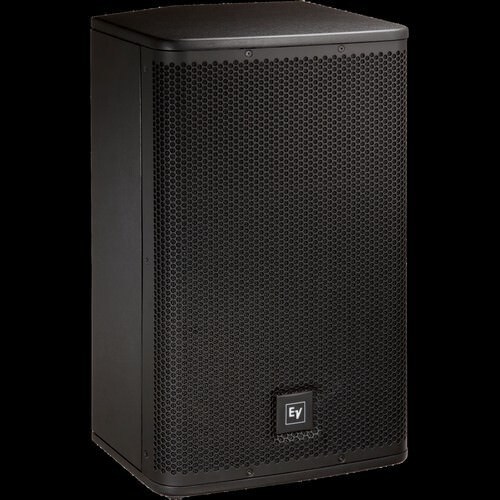

Ev Elx112 12-Inch 250-Watt 2-Way Passive Loudspeaker Plywood Enclosure ELX112 $ 589 $699.00
How to get it Learn More
Delivery Not Available
Order Special Order - Request Availability
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

ELX112

12-inch two-way full-range

  • Compact power for sound reinforcement and stage monitoring
  • EVS-12K woofer
  • 1.5-inch DH-1K titanium HF compression driver
  • 55 Hz – 20 kHz frequency range
  • 90° x 50° coverage-pattern waveguide

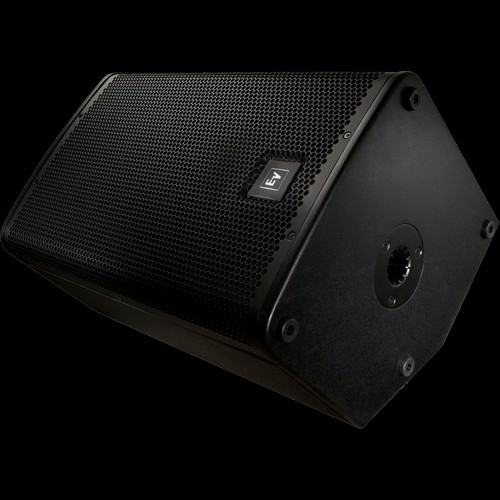

  • 60° Monitor Angle
  • 94 dB SPL sensitivity; 132 dB max SPL
  • Power handling: 250 W continuous, 1000 W peak
  • Braced 15mm plywood enclosure
  • Pole mount or stack with Live X Subwoofers
  • Black textured finish


Specs


Axial Sensitivity (SPL, 1 W @ 1 m) 94 dB
Case Material 9-ply, 15mm Plywood, Internally Braced, with Textured Paint
Color Black
Speaker Type Full-range, two-way, wedges
Woofer Size 304.8 mm (12")
Frequency Response (-3 dB) 82 - 18000 Hz
Frequency Response (-10 dB) 55 - 20000 Hz
Internal Crossover Yes
Recommended High-Pass Frequency 45 Hz
Max. SPL/1m (calc) 132 dB Half Space
Coverage (Nominal -6 dB) H 90 °
Coverage (Nominal -6 dB) V 50 °
System Power Handling (Continuous/Program/Peak) 250//1000 Watts
LF Transducer (1) EVS-12K, 305mm (12") Woofer
HF Transducer DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver
Crossover Frequency 21000 Hz
Nominal Impedance (Passive) 8 Ω
Minimum Impedance 7 Ω
Connector Type Parallel Neutrik® NL4
Grill 18GA Steel with Black Powdercoat
Height 607 mm (23.9")
Width 362 mm (14.25")
Depth 340 mm (13.39")
Weight Net 16 kg (35.27 lbs)
