SKU: MOSC0036CNAUKR
UPC:
Linked to MusiPos
RRP: $799.99
2 - Primary Warehouse
Chat to us or call 5444 8889
Find out more

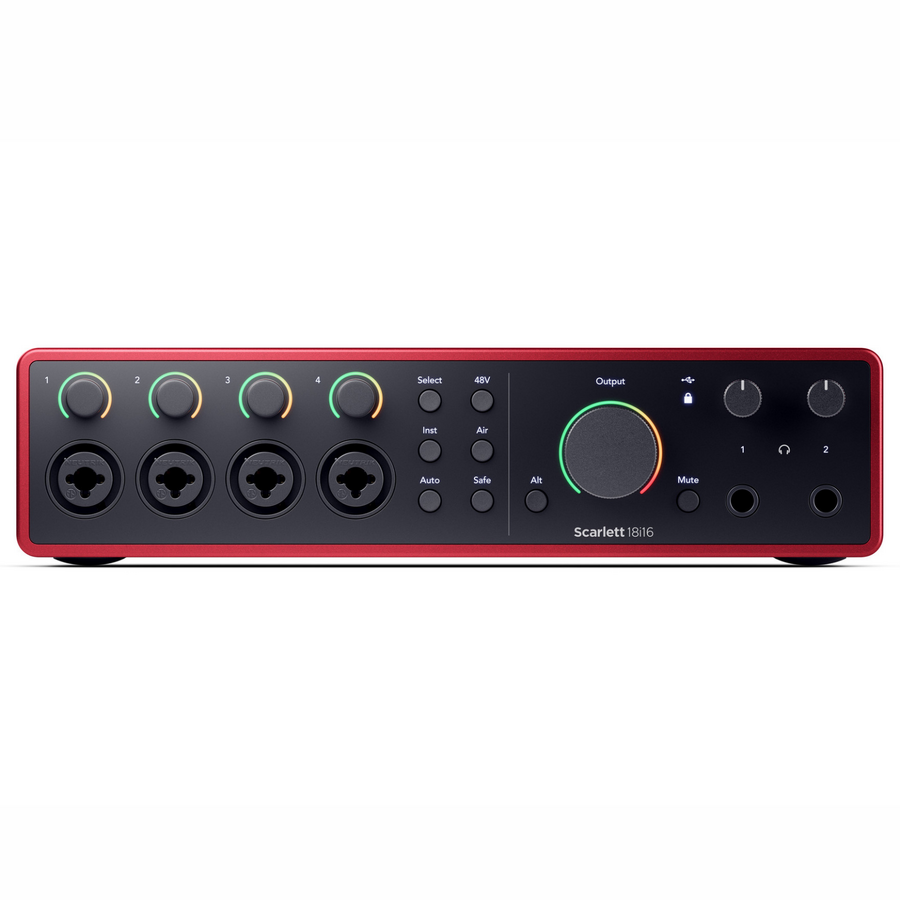

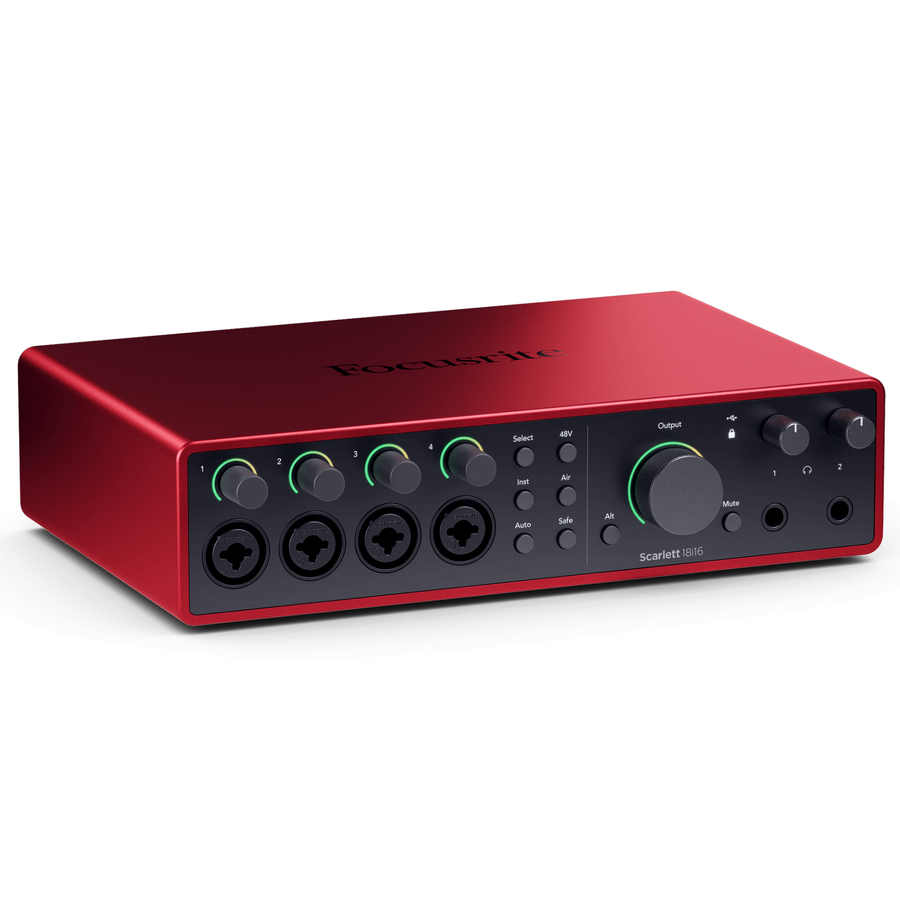

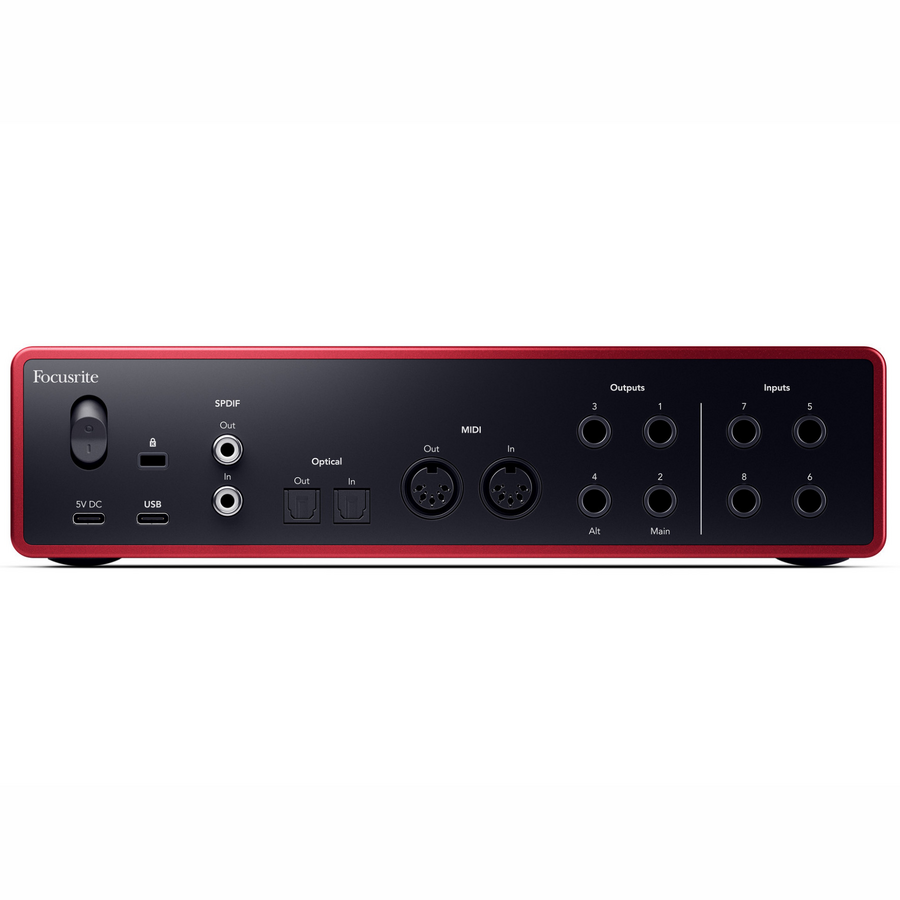

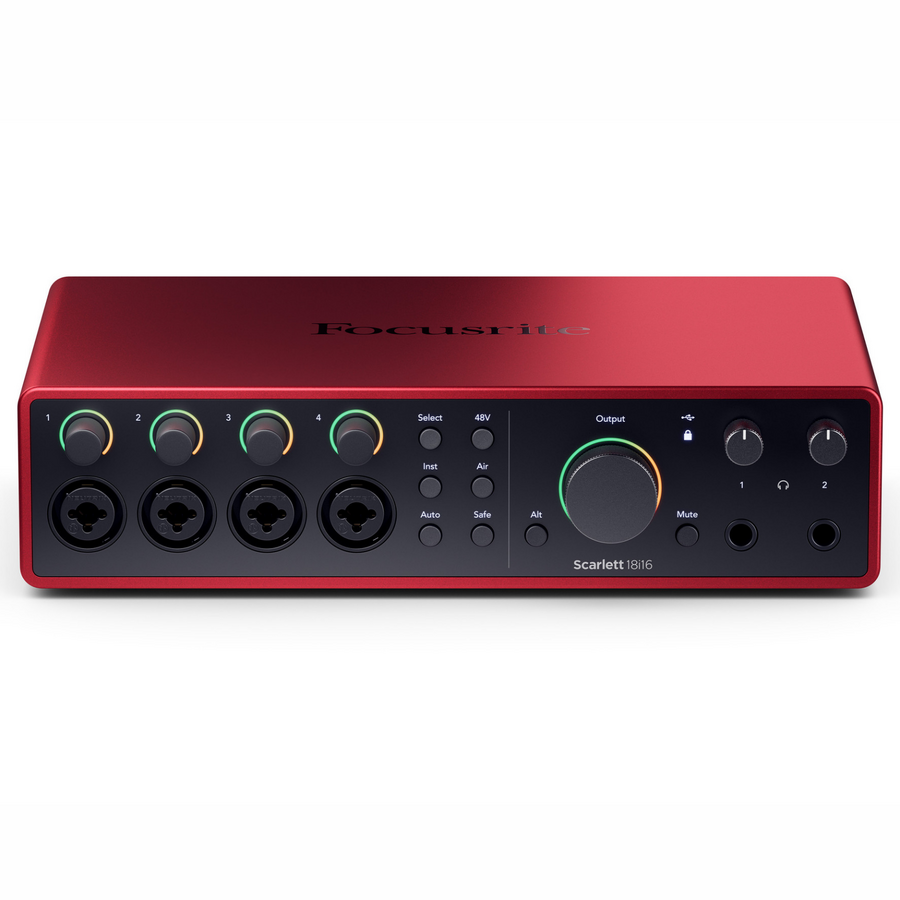

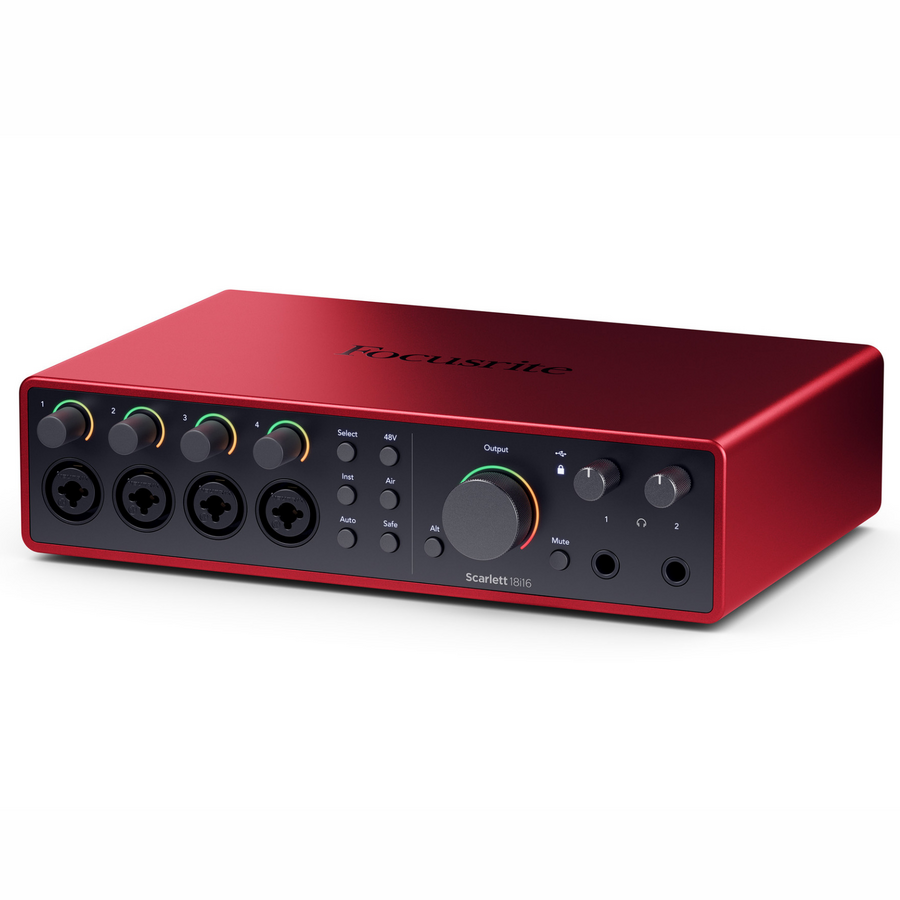

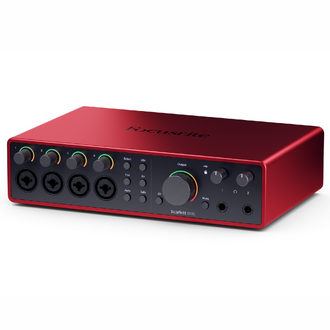

Scarlett 18i16 is the complete compact studio hub for all your instruments and outboard gear. Perfect for producers, 18i16 is equipped with enough I/O to connect all your studio gear. Four of our most detailed ultra-low-noise mic preamps. Hi-Z, line, and MIDI connections for your guitars, keys, synths, grooveboxes, and controllers. With 18i16 your headphones, monitors, and line outs each get their own mix, so you can match the studio setup to the session. Expand your channel count using the S/PDIF or ADAT connections.
Air mode, with Presence and Harmonic Drive, gives you that big console sound wherever you record. Auto Gain and Clip Safe make sure you'll never need to worry about your levels. The Hitmaker Expansion software bundle has all the tools you need to record, produce, and release your tracks. And the Focusrite Control 2 desktop and mobile apps enable you to remotely control your Scarlett anywhere in the studio. 18i16 can be powered directly from a computer's USB-C port (3A), so no extra power supply is needed.
Specifications
Number of Microphone Preamps4 Phantom PowerYes (Independent) Instrument Inputs2 Line Inputs8 Air ModeYes Auto GainYes Clip SafeYes Line Outputs4 Headphone Outputs2 ADAT Inputs1 ADAT Outputs1 SPDIF Inputs1 SPDIF Outputs1 SPDIF Outputs1 MIDI Inputs1 MIDI Outputs1 LoopbackYes ConnectivityUSB Type-C ProtocolUSB 2.0 Form FactorDesktop Simultaneous I/O20 x 18 (including Loopback) A/D Resolution24-bit/192 kHz Bus Powered Yes (3A)
Dimensions
Height60.5mm Width240mm Depth169.4mm Weight1.494kg
Supported sample rates
44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Microphone inputs
Frequency Response20-20kHz ± 0.06dB Dynamic Range116dB (A-Weighted) THD+N-100dB @ 8dB gain Noise EIN-127dBu (A-Weighted) Maximum Input Level16dBu Gain Range69dB Impedance3kΩ
Variable Line inputs
Frequency Response20-20kHz ± 0.05dB Dynamic Range115.5dB (A-Weighted) THD+N-100dB @ 8dB gain Maximum Input Level22dBu Gain Range69dB Impedance24kΩ
Fixed Line inputs
Frequency Response20-20kHz ± 0.02dB Dynamic Range115.5dB (A-Weighted) THD+N-106dB Maximum Input Level22dBu Impedance48kΩ
Instrument inputs
Frequency Response20-20kHz ± 0.05dB Dynamic Range113dB (A-Weighted) THD+N-80dB @ 8dB gain Maximum Input Level12dBu Gain Range62dB Impedance1MΩ
Line outputs (Balanced)
Frequency Response20-20kHz ± 0.02dB Dynamic Range122dB (A-Weighted) THD+N-112dB Maximum Output Level16dBu Impedance200Ω
Headphone outputs
Frequency Response20-20kHz ± 0.1dB @ 33Ω / 300Ω Dynamic Range112dB @ 33Ω 116dB @ 300Ω THD+N-100dB @ 33Ω (Minimum) -110dB @ 300Ω (Minimum) Maximum Output Level5dBu into 33Ω 11dBu into 300Ω Maximum Output Power57mW into 33Ω 27mW into 300Ω Impedance11Ω
Analogue to Digital Converter
THD+N-110dB Dynamic Range120dB
Digital to Analogue Converter
THD+N-115dB Dynamic Range130dB (A-Weighted)
Power
USB3A External (Optional)15W
What's in the box
Scarlett 18i16 audio interface 1.5m USB-C to USB-C cable USB-C to USB-A adaptor External power supply
Visit manufacturers website for more information
