POA

Description

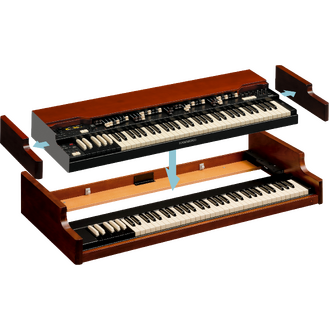

HAMMOND XK5 HERITAGE PACK WITH LESLIE SPEAKER CABINET

Manuals

Upper and Lower 73 notes each

(61 playing keys plus 12 Preset

Keys)

Square-front (“waterfall”-style)

New mechanical key-bed design

Pedal (optional)

13, 20-note spinet-style

25-note radiating

Adjustable Pedal Sustain

Pedal to Lower coupler

Custom Pedal Registrations (3

Factory, 3 User)

Split

SPLIT panel control

Assignable split point

Tone Generator

MTW™ (Modeled Tone Wheels)

61-note polyphony for Manuals

5-note polyphony for Pedals

Virtual Multi-Contacts™

Custom Contacts (3 Factory, 3 User)

3 Physical Contacts, 9 Assignable

Virtual Contacts

Adjustable Attack, Release, Decay

Harmonic Drawbars®

5 sets (4 Manuals, 1 Pedal)

Upper 2 X 9 pitches

Lower 2 X 9 pitches

Pedal 2 pitches

Drawbar Voicing

4 choices for Manuals (A-100, B-3,

C-3, Mellow)

4 choices for Pedals (Normal, Muted,

Synth 1 & 2)

Custom Tone Wheel (CTW™)

3 Factory, 3 User for A-100, B-3, C-

3 & Mellow Drawbar Voicings

CTW’s identified by model and

serial number

Adjustable parameters for each tone

wheel

12 complex tone wheels for bottom

12 pedal tones.

Touch-Response Percussion™

Percussion On, Normal/Soft Volume,

Slow/Fast Decay, 2nd & 3rd Harmonic

Adjustable Normal/Soft Volume

settings,

Slow/Fast Decay rates, Velocity, Key

Tracking,

1’ Drawbar Cancel ON/OFF

Vibrato & Chorus™

Virtual Scanner™ (3 settings)

Adjustable rate, Vibrato/Chorus Mix

Vibrato on Pedal ON/OFF

Overdrive

Tube/Solid State

Adjustable drive level

Preset Keys

9 Presets plus Cancel each Manual

2 Adjust Presets each Manual

9 programmable Preset Banks

Patches

100 User, 100 Factory Patches

Assignable to Preset Keys as

Favorites

Assignable Patch Load: Drawbar

registrations, Drawbar parameters,

Internal & External Zones, Multi-

Effects, Reverb.

Tube Preamp

12AU7/12AX7 Tubes

Adjustable Routing & Drive Level

MT™ Matching Transformer

Adjustable drive level, Hysteresis,

upper/lower/percussion levels

Multi-Effects

Tremolo, Auto Pan, Wah-Wah, Ring

Modulator, Phaser, Flanger, Chorus,

Delay. Adjustable parameters for

each effect.

Master Equalizer

Bass/Mid/Treble panel controls

Adjustable gain & center frequency

Programmable Equalizer

Bass, Mid, Treble

Adjustable center frequency

Hammond Preamp Tone Control

Leslie®

STOP, FAST, BYPASS panel

controls.

Custom Cabinets (8 Preset, 8 User)

Adjustable Slow & Fast Speeds, Rise

& Fall Times, Horn/Drum/Subwoofer

Volume Balance, Microphone

Settings.

Reverb

ON/OFF panel control

11 programs

Leslie On Reverb ON/OFF

MIDI

5 MIDI Templates

3 Keyboard Channels (Upper, Lower,

Pedals)

6 External Zones (3 Upper, 2 Lower,

1 Pedals)

Assignable MIDI channels, key

range, Program Change, Pan,

Velocity Curve, Min/Max Volume

IN 1, IN 2, OUT Connections

Display

OLED, 20 character, 2 line

7 Control Buttons & VALUE Rotary

Knob

USB

“A” port (“To USB Flash Drive”)

“B” port (“To Host”)

Tune/Transpose

Transpose +- 6 semitones

Fine Tune +- 10 cents

Octave Up/Down +- 2 octaves

H-BUS® Connector

To Pedals/Expression Pedal

Audio Connections

LINE OUT L/MONO / R

Headphone Jack

11-pin Leslie® Connector

Other Connections

CONTROL 1, CONTROL 2,

8-pin DIN (EXP-100F Expression

Pedal)

AC Input

Dimensions

46.8” (W) 15.8” (D) 4.7” (H)

Weight 34.6 lbs.

NB: Some items from this package may be out of stock at the time of ordering.
