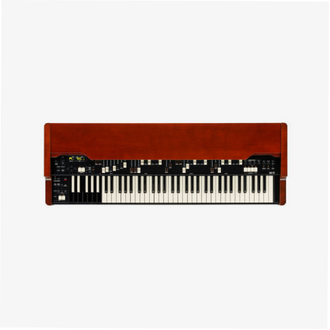

This is the organ for the serious Hammond player.
The XK5 is perfectly at home either in the studio or on stage. Termed ‘The New Original’, XK5 provides all the key features and sounds that are found on many of the ‘classic’ Hammonds.
Two full sets of drawbars per manual, realistic digital Vibrato/Chorus generator, digital Leslie rotating speaker and great harmonic percussion all work together to provide the musical tools necessary to create your own Hammond sound.
The waterfall keyboard has multi-contacts to recreate the tactile feel of the classic Hammonds which add to the player’s Hammond experience.
Completely new Hammond sound generation technology brings truly authentic tones for those who demand the best in a portable instrument.
The XK5 comes complete with presets that provide registrations to suit Jazz, Rock and Popular playing styles. These presets can easily be replaced with your own customised sounds.
Parameters such as drawbar type, digital Leslie speed and characteristics, reverb types and lengths and variable key click are just some of the options that can be altered to suit the player using Hammond’s well designed menu structure.
XK5 has the iconic wooden cabinet look for the traditional Hammond appearance and style. When combined with the XLK5 lower manual and the optional turned wooden stand, your XK5 system completes that ‘signature instrument profile’ which is recognised the world over.
Newly designed real tube pre-amp and new digital Leslie propel the instrument to new levels of playing. A rich, warm tube over-drive can be added using a variable control – and you can even select the type of tube you’d like to use.
Hammond has gone all out to inject many little nuances of the iconic Hammond sound into this new organ.
Moving and maintaining an antique Hammond will only become more difficult as time passes.
Of course we have tons of respect for anyone who does, but to get all of the sound with none of the hassle it’s easy to see why the XK-5 is destined to become The New Original™
This organ is in huge international demand so be quick to try it.
Upper 73 notes (61 playing keys plus 12 Preset Keys), Square-front (“waterfall”-style), New mechanical key-bed design. (see optional SKPROPK for the dual keyboard option)
13, 20-note spinet-style, 25-note radiating, Adjustable Pedal Sustain, Pedal to Lower coupler, Custom Pedal Registrations (3 Factory, 3 User)
SPLIT panel control, Assignable split point
MTW™ (Modeled Tone Wheels), 61-note polyphony for Manuals, 5-note polyphony for Pedals
Custom Contacts (3 Factory, 3 User), 3 Physical Contacts, 9 Assignable Virtual Contacts Adjustable Attack, Release, Decay
5 sets (4 Manuals, 1 Pedal), Upper 2 X 9 pitches, Lower 2 X 9 pitches, Pedal 2 pitches
4 choices for Manuals (A-100, B-3, C-3, Mellow), 4 choices for Pedals (Normal, Muted, Synth 1 & 2)
3 Factory, 3 User for A-100, B-3, C3 & Mellow Drawbar Voicings, CTW’s identified by model and serial number , Adjustable parameters for each tone wheel, 12 complex tone wheels for bottom, 12 pedal tones
Percussion On, Normal/Soft Volume, Slow/Fast Decay, 2nd & 3rd Harmonic, Adjustable Normal/Soft Volume settings, Slow/Fast Decay rates, Velocity, Key Tracking, 1’ Drawbar Cancel ON/OFF
Virtual Scanner™ (3 settings), Adjustable rate, Vibrato/Chorus Mix, Vibrato on Pedal ON/OFF
Tube/Solid State, Adjustable drive level
9 Presets plus Cancel each Manual, 2 Adjust Presets each Manual, 9 programmable Preset Banks
100 User, 100 Factory Patches Assignable to Preset Keys as Favorites Assignable Patch Load: Drawbar registrations, Drawbar parameters, Internal & External Zones, MultiEffects, Reverb
12AU7/12AX7 Tubes Adjustable Routing & Drive Level
Adjustable drive level, Hysteresis, upper/lower/percussion levels
Tremolo, Auto Pan, Wah-Wah, Ring Modulator, Phaser, Flanger, Chorus, Delay. Adjustable parameters for each effect.
Bass/Mid/Treble panel controls Adjustable gain & center frequency
Bass, Mid, Treble Adjustable center frequency Hammond Preamp Tone Control
STOP, FAST, BYPASS panel controls. Custom Cabinets (8 Preset, 8 User) Adjustable Slow & Fast Speeds, Rise & Fall Times, Horn/Drum/Subwoofer Volume Balance, Microphone Settings
ON/OFF panel control 11 programs Leslie On Reverb ON/OFF
5 MIDI Templates 3 Keyboard Channels (Upper, Lower, Pedals) 6 External Zones (3 Upper, 2 Lower, 1 Pedals) Assignable MIDI channels, key range, Program Change, Pan, Velocity Curve, Min/Max Volume IN 1, IN 2, OUT Connections
OLED, 20 character, 2 line 7 Control Buttons & VALUE Rotary Knob
“A” port (“To USB Flash Drive”) “B” port (“To Host”)
Transpose +- 6 semitones Fine Tune +- 10 cents Octave Up/Down +- 2 octaves
To Pedals/Expression Pedal
LINE OUT L/MONO / R, Headphone Jack, 11-pin Leslie® Connector
CONTROL 1, CONTROL 2, 8-pin DIN (EXP-100F Expression Pedal) AC Input
