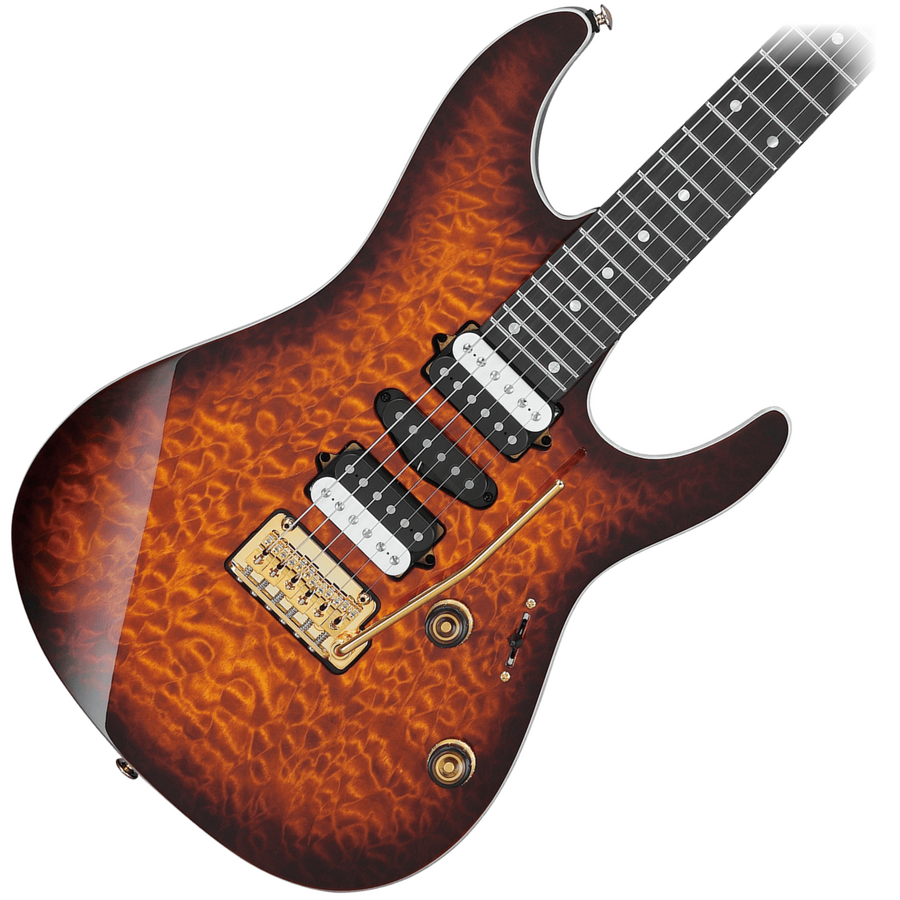

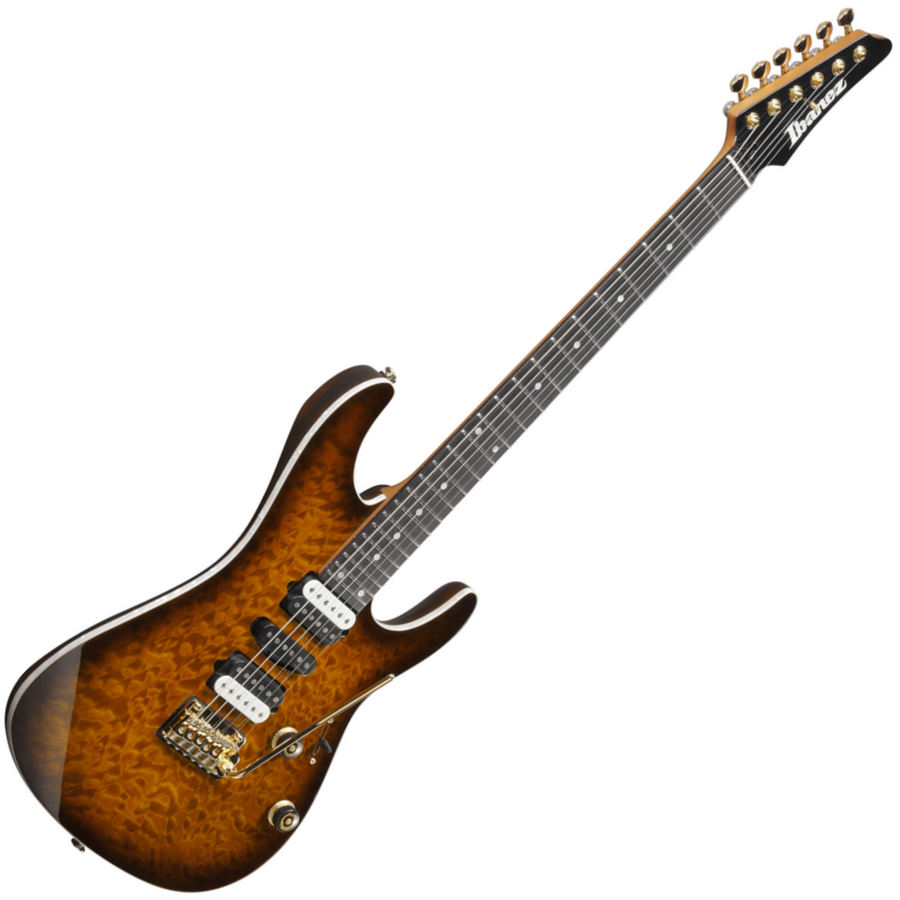

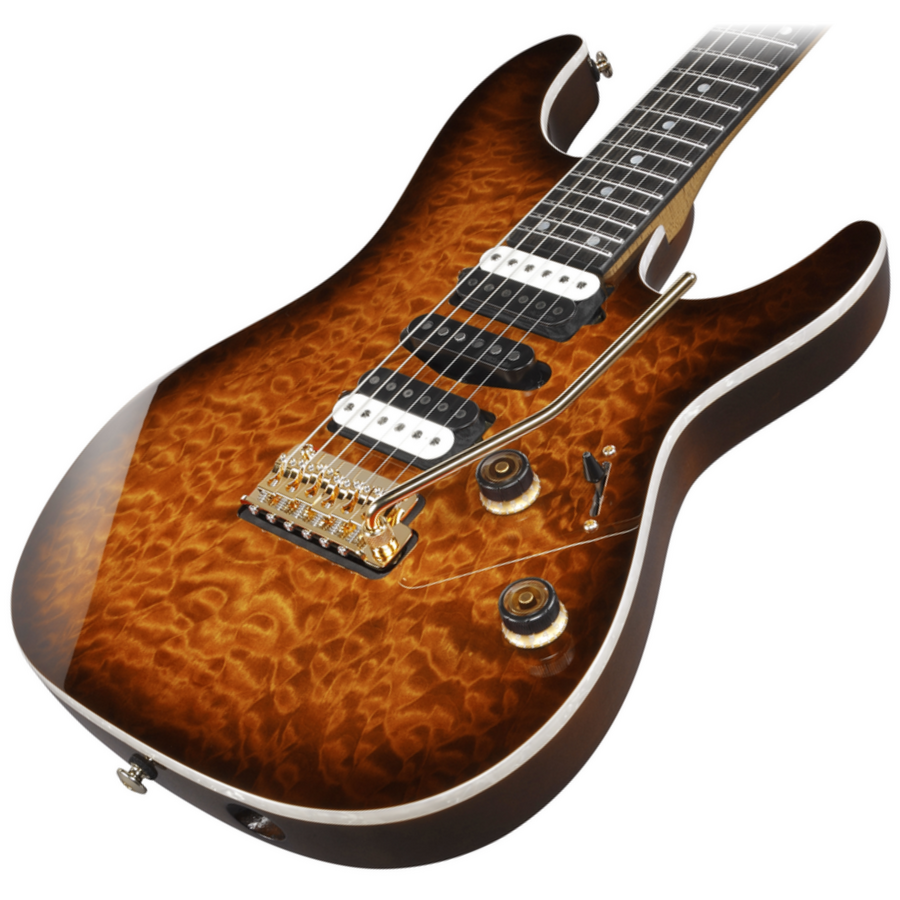

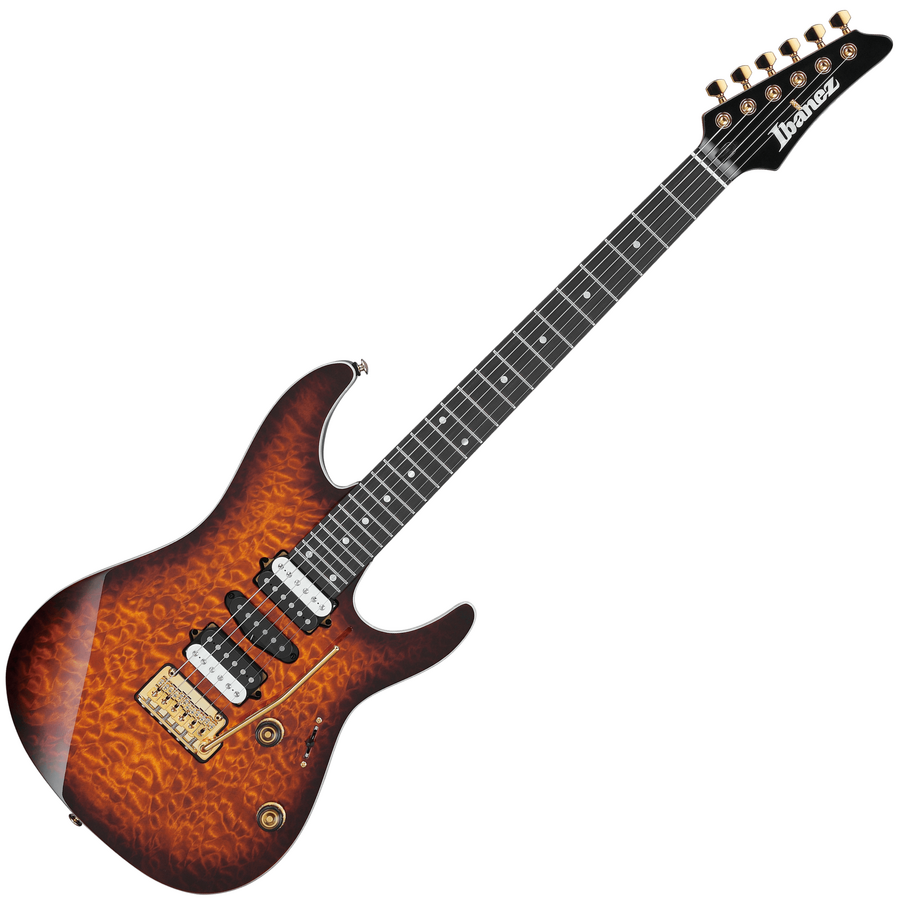

Ibanez AZ47P1QM Premium Electric Guitar Dragon Eye Burst With Bag 6043572 $ 2299 $3,399.00 Sale Ends in
How to get it Learn More
Store Click & Collect - Available In Stock
Online In Stock
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

Taking adaptability to new extremes, the AZ series has established itself and carved out a place that spans everything from the warmest blues licks, to the most intense, shred-heavy metal riffs. Carrying this ethos forward, the AZ line embodies time-tested Ibanez innovation and player-focused features like a smooth, oval neck grip, a well-balanced asymmetrical body shape, and the neck heel allowing for unrivalled playability.

Product Features

Oval C Roasted Maple neck
The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance and tolerance of temperature changes.

Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

Jumbo Stainless Steel frets
Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response and effortless articulation when playing chords and clear tone when playing single notes.

Quilted Maple top / American Basswood body
The Quilted Maple top sonically enriches the response for picking and the American Basswood body delivers a natural and flat tone.

DiMarzio Air Norton / True Velvet / The Tone Zone pickups

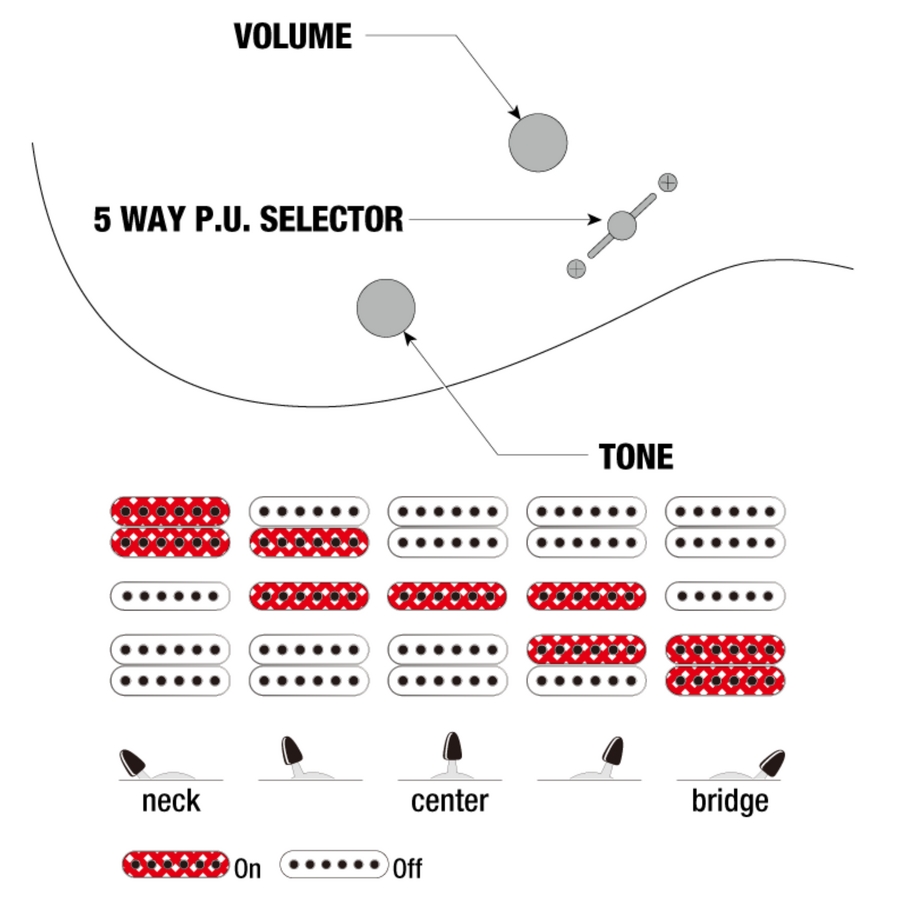

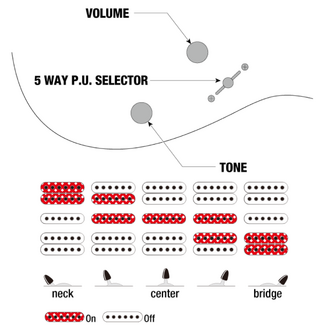

The DiMarzio Air Norton, True Velvet and Tone Zone pickups offer depth, warmth and rich dynamics when combined with the 5-way pickup switch.

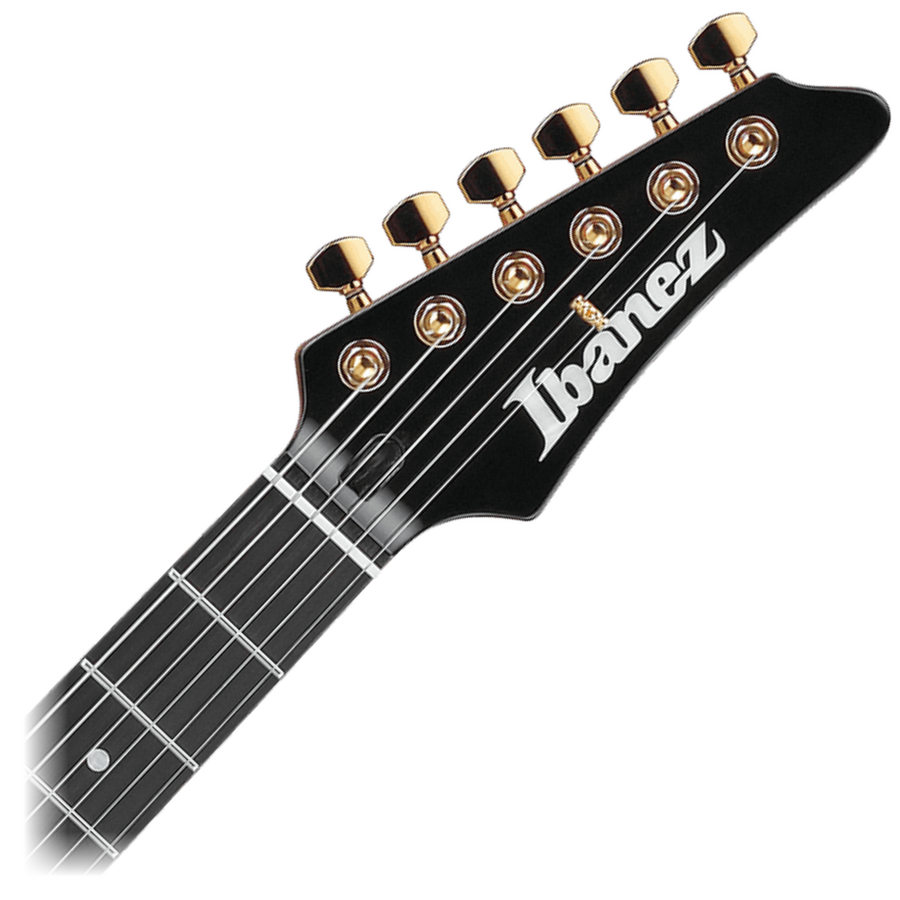

Gotoh MG-T locking machine heads
The Gotoh MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

Gotoh T1502 tremolo
The T1502 tremolo bridge features steel saddles and a die-cast zinc tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

Luminescent side dots
The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

Gig bag included
It comes with Ibanez gig bag which is designed specifically to fit and protect this instrument.



SPECIFICATIONS

  •     neck type AZ Oval C Roasted Maple neck
  •     top/back/body Quilted Maple top American Basswood body
  •     fretboard Ebony fretboard Mother of Pearl dot inlay
  •     fret Jumbo Stainless Steel frets
  •     number of frets 24
  •     bridge Gotoh T1502 bridge
  •     string space 10.5mm
  •     neck pickup DiMarzio Air Norton (H) neck pickup Passive/Alnico
  •     middle pickup DiMarzio True Velvet (S) middle pickup Passive/Alnico
  •     bridge pickup DiMarzio The Tone Zone (H) bridge pickup Passive/Alnico
  •     factory tuning 1E,2B,3G,4D,5A,6E
  •     strings D'Addario EXL110
  •     string gauge .010/.013/.017/.026/.036/.046
  •     nut Graph Tech nut
  •     hardware color Gold


NECK DIMENSIONS

        Scale : 648mm/25.5"
        a : Width 42mm at NUT
        b : Width 57mm at 24F
        c : Thickness 20.5mm at 1F
        d : Thickness 22.5mm at 12F
        Radius : 305mmR

Dimensions

Height - 97.8cm
Width - 30.9cm
Length - -cm
Weight - 4.4kg
