Description

Klark Teknik DN100 Direct Injection (DI) Box

The new Klark Teknik DN100 Direct Injection Box is the natural successor to the long-established LBB100.

A ground-up redesign provides an extended dynamic range, lower noise floor and all the world-class audio performance you’d expect from Klark Teknik. DN100 is also designed to handle the rigours of life on the road: a thick aluminium shell protects the electronics, and this in turn is protected by a tough silicone rubber casing, which is replaceable and available as a spare part.

We’ve also fitted a Kensington security slot in one of the end panels to allow the unit to be made secure using a Kensington MicroSaver security cable.

Attention to detail – it’s what makes a good unit into a great one.


Specifications

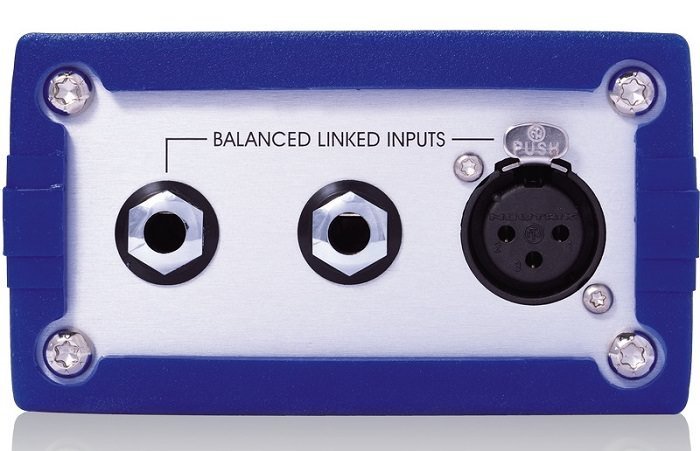

Input

  • Type: Active electronic, balanced or unbalanced
  • Impedance: 1M Ω nominal, balanced or unbalanced (jack connectors) 20K Ω (XLR input only)
  • Connectors: 2 quarter inch jacks and 3-pin XLR linked in parallel
  • Maxmum level: 30dBu
  • Attenuator: 30dB switchable

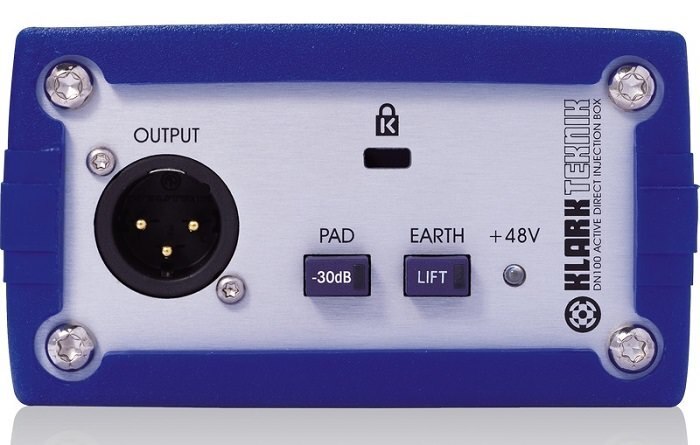

Output

  • Type: Transformer Isolated, balanced
  • Impedance: 300 Ω
  • Connector: 3 pin XLR
  • Max. Level: 10dBu with load >2k Ω
  • Min. load: 600 Ω



Performance

  • Noise: -100dBu, 20Hz to 20kHz unweighted, with input terminated by 10k resistor
  • Frequency response: +0.5/-1dB 20Hz to 20kHz
  • Distortion (THD+N) output: <0.01% @ 1kHz, +4dBu



Power Requirement

  • Voltage: +48V Phantom *
  • Current consumption: <10mA



Dimensions & Weight

  • Length 142mm (5.6 inch)
  • Width 106mm (4.2 inch)
  • Height 60mm (2.35 inch)
  • Weight: <1kg



* The DN100 has been designed to allow use at phantom voltages less than +48V. The unit will function down to +20V (when used with 6k8 dropping resistors) but with reduced headroom and dynamic range. All the specifications above are quoted using standard +48V Phantom power.
