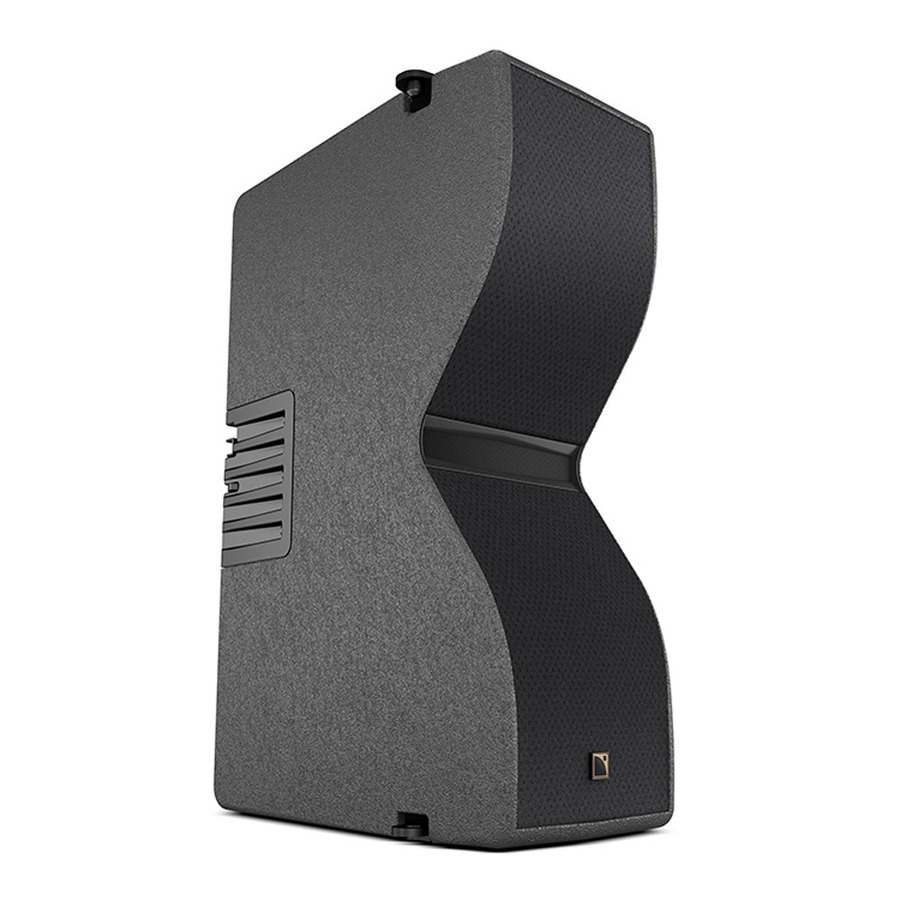

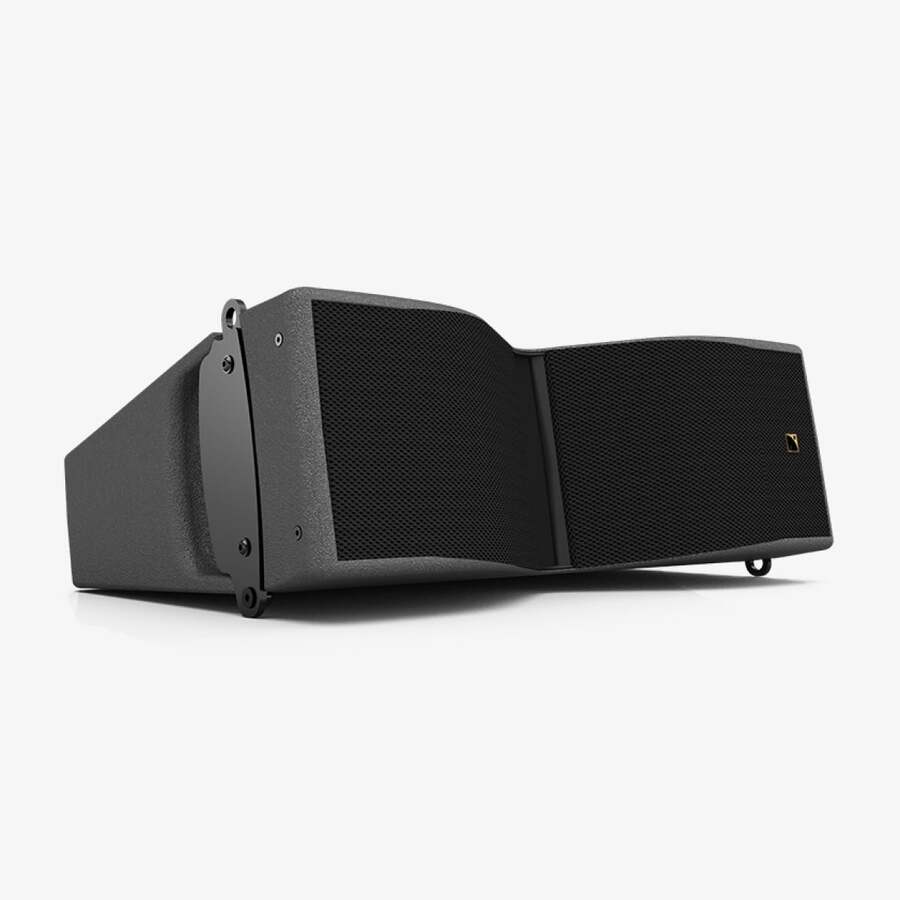

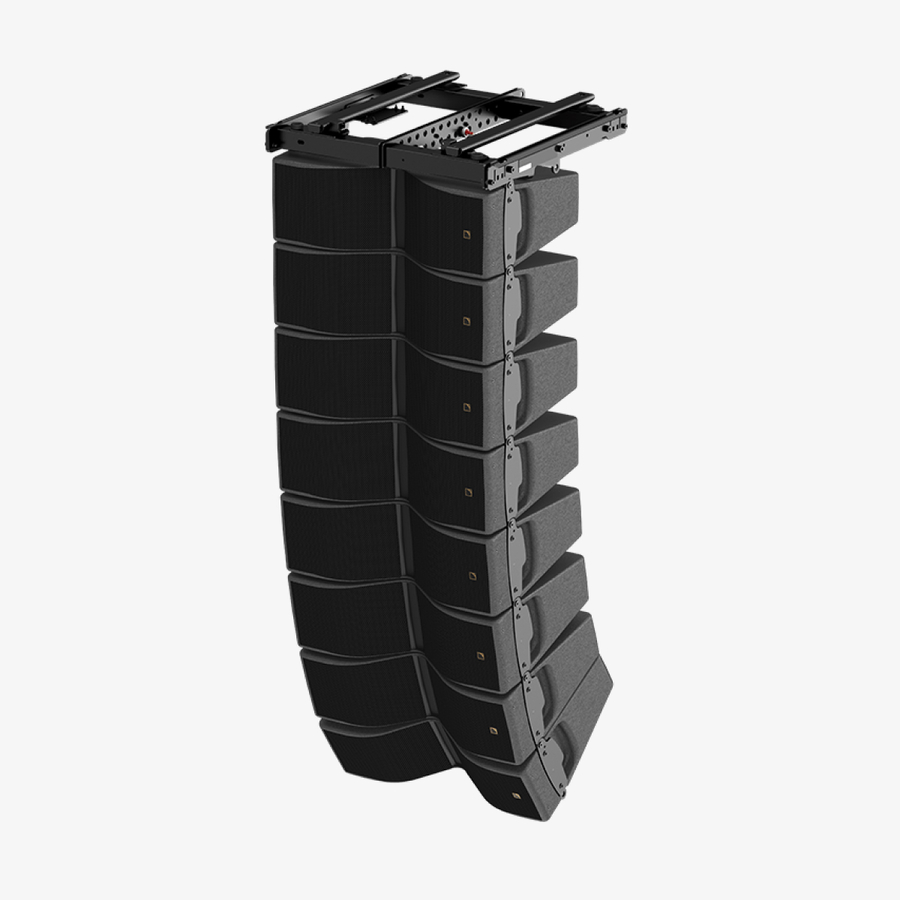

The Kiva II is an ultra-compact WST® modular line source designed for long-throw sound reinforcement applications with minimum visual impact. The Kiva II features two 6.5“ speakers in a bass-reflex cabinet and a 1.75“ diaphragm compression driver loaded by a DOSC waveguide and L-Fins. Kiva II features an outstanding SPL/format ratio thanks to the excursion and power capability of the transducers. The amplifier density is maximized with 16 ohm impedance. The Kiva II operates from 70 Hz to 20 kHz. The coplanar transducer arrangement and the new K front grill produce a 100° symmetric horizontal directivity output with a smooth tonal response free of secondary lobes over the entire frequency range. In accordance with the WST coupling criteria to preserve the wave front coherency, the maximum inter-element angle is 15°. The internal passive crossover network uses custom filters. The L-Acoustics amplified controllers ensure the linearization and the protection of the transducers (L-Drive).

Power is Beautiful
Kiva II is a new ultra-compact modular line source, adding 6dB of max SPL versus its predecessor, maximized amplifier density with 16 ohm impedance, and a new sturdy cabinet.

Despite its ultra-compact format, the Kiva II features L-Acoustics’ Wavefront Sculpture Technology™ (WST), giving it a long throw capability and delivering even SPL from the front row to the back of the audience. Its coplanar transducer arrangement and new K front grill generate a symmetric horizontal coverage of 100 degrees without secondary lobes over the entire frequency range.

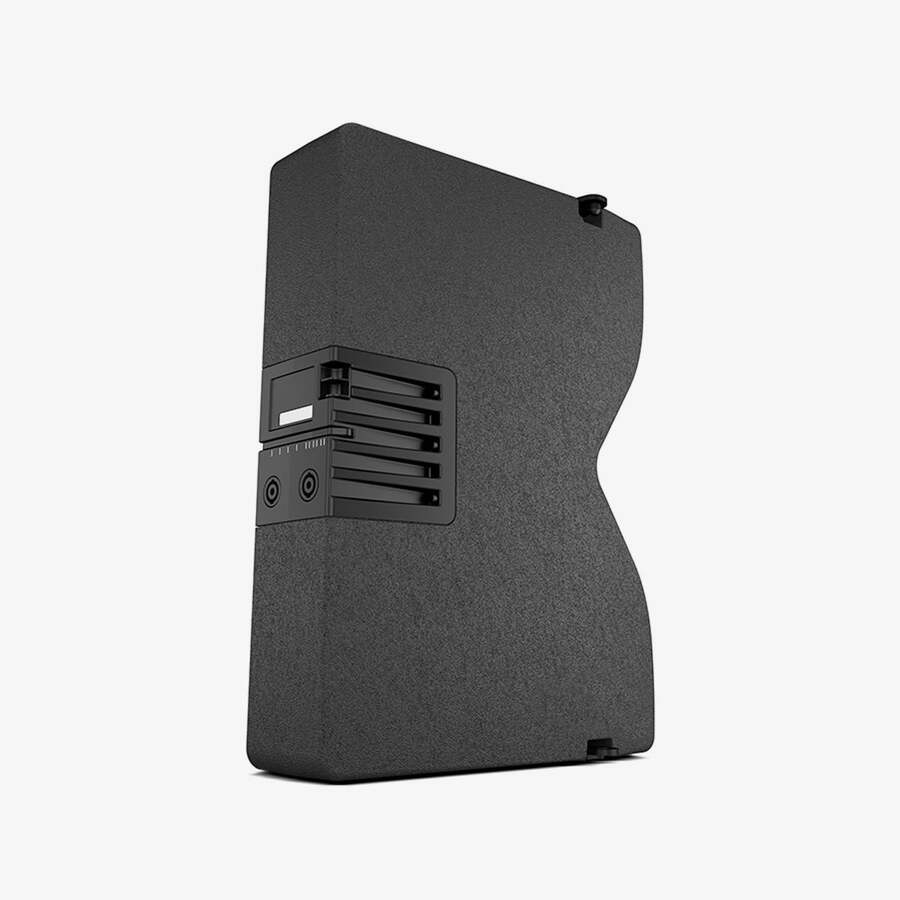

Weighing only 31 pounds (14 kg), the product’s elegant lines and flush-fitted rigging allow it to melt into any architecture, making it a natural fit for installations in Performing Arts Centers and special events demanding minimum visual obtrusion, and particularly in L-ISA™ multi-channel configuration installations.
