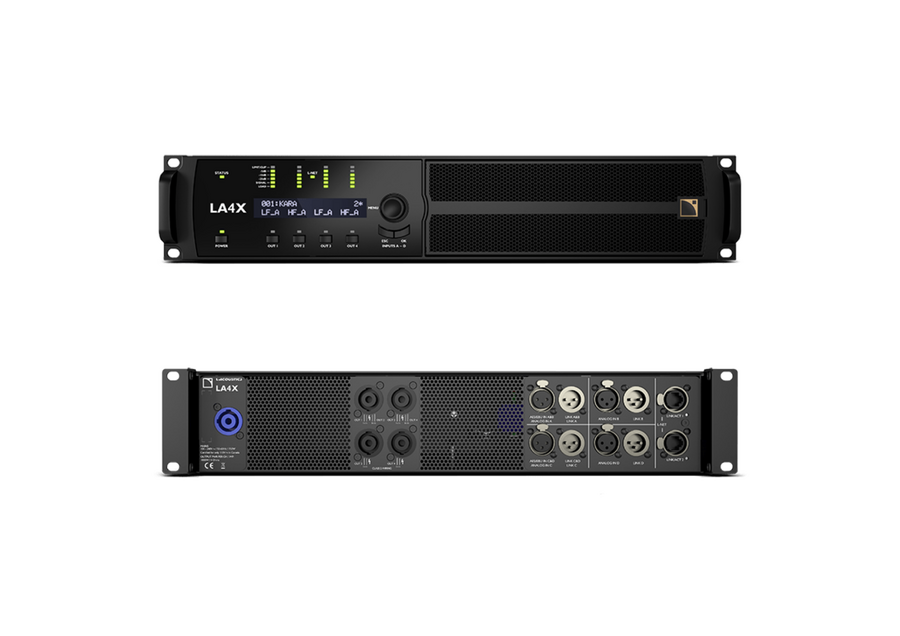

L-Acoustics LA4X Amplified Controller, 4 x 1000 W at 4 and 8 ohms

LAC-LA4X

POA

Description

The LA4X is an amplified controller based on a 4-input by 4-output architecture and an exclusive green power module providing maximised efficiency. With LA4X, L-Acoustics speakers can get all the benefits of self-powered speakers, while keeping the versatility of the separated amplification approach. The L-Acoustics systems can be operated in three connectivity modes:

"A LA CARTE"The pool of four inputs and four amplification channels of the LA4X can be allocated "à lacarte" to any passive speaker enclosures with a one-to-one-to-one link (input / processing +amplification / loudspeaker). This approach is cost effective for applications requiring a high count of independent sound sources such as stage monitors, multi-channel systems and multi-feed distributed systems.

"FULL ACTIVE"In high-end installation projects, the LA4X can drive active systems, up to K2, for maximum power headroom and the best possible performances. With one transducer section per output channel and the independent DSP treatment of each output, this approach brings maximum discretization with a one-to-one link (processing + amplification / transducer section).

"CONVENTIONAL"For applications requiring a high count of loudspeaker enclosures with optimised cost of amplification, the LA4X can efficiently operate as a conventional amplified controller driving speakers in parallel from its four amplification channels, with the added benefit of the 4 inputs when using passive loudspeaker enclosures.

Visit manufacturers website for more information

Specifications

Amplification and power supply

Amplification class Class D
Output power, all channels loaded 4 x 1000 W at 4 ohms
4 x 1000 W at 8 ohms
Power supply model Universal Switched Mode Power Supply (SMPS) with Power Factor Correction (PFC)
Mains rating 100 V - 240 V ±10%, 50-60 Hz



DSP

Digital Signal Processor (DSP) SHARC 32-bit, floating point, 96 kHz sampling rate
I/O routing Flexible 4x4 routing matrix
Per output channel Built-in EQ station with 8 IIR, 4 FIR linear phase EQ filters
Array morphing, Air absorption compensation filters
Internal IIR and FIR EQ algorithms
L-DRIVE advanced system protection
Output delay from 0 to 1000 ms



Technologies

loudspeaker management L-DRIVE advanced system protection



Latency

standard latency (analog/digital inputs) 3.84 ms
low latency (analog/digital inputs) 0.84 ms



Inputs

AVB 4 channels from 1 stream (of up to 8 channels)
AES/EBU 4 channels AES/EBU (2 x AES3) with SRC
analog 4 channels
connections 2 etherCON 1 Gb/s I/O+ control
4 female 3-pin XLR (2 x switching analog/AES3)
4 male 3-pin XLR links



Outputs

loudspeaker connections 4 x SpeakON



Circuit protection

Mains and power supply Over and under voltage / over temperature / overcurrent
Power outputs Overcurrent / short circuit / over temperature



Interface

display/indicators LCD and LED's
navigation Rotary encoder, power and mute keys



Control and monitoring

L-Acoustics remote control software LA Network Manager
Third-party management solutions QSC® / SNMP / Extron® / Crestron®



Operating conditions

Temperature 0º C / 32º F to +50º C / 122º F



Physical data

Height 2U
Weight 11.3 kg / 24.9 lb
Protection rating IP30

Features

Install-specific amplified controller

  • 4 x 4 architecture with AVB, AES, Analog
  • Matched power for small loudspeakers
  • Reduced power for larger loudspeakers
  • Bridge mode at full power for larger loudspeakers
  • Milan seamless dual network redundancy
  • Usable worldwide (100 – 240 V, 50/60 Hz)
  • Compact (1U)
