LD Systems ICOA 12" 1200 Watt Coaxial PA Loudspeaker with Bluetooth LDSICOA12ABT $ 799 $799.00
How to get it Learn More
Store Click & Collect - Available In Stock
Online In Stock
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A BT by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 12" loudspeaker exceptionally flexible.

The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A BT the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 126 dB max. SPL and 1200 W peak performance.

Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected. The BT version offers Bluetooth® streaming and the wireless connection of playback devices - ideal for playing content from a phone or tablet.

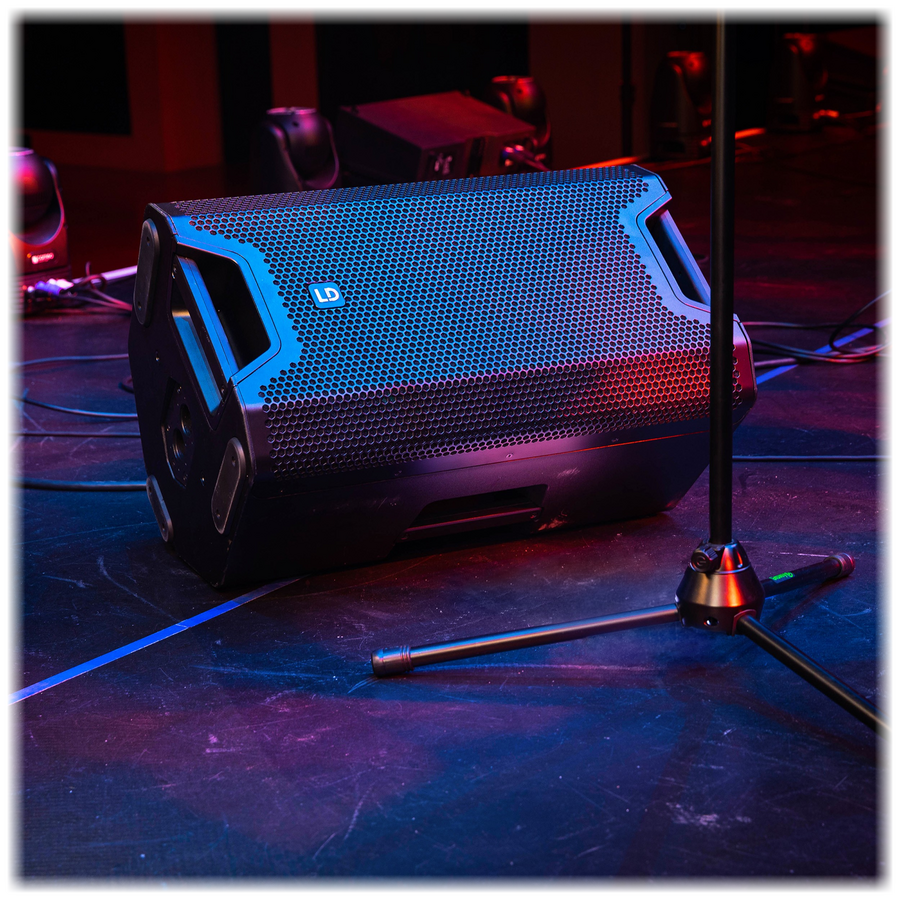

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A BT is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.

Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

Features

  • A genuine all-rounder for full-range, satellite and monitor applications
  • 126 dB max. SPL and 1200 W peak power

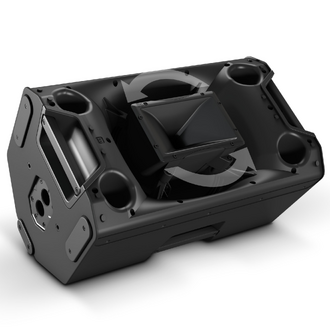

  • Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
  • Horn-loaded woofer
  • DynX DSP with 4 presets, 3-band EQ and delay function

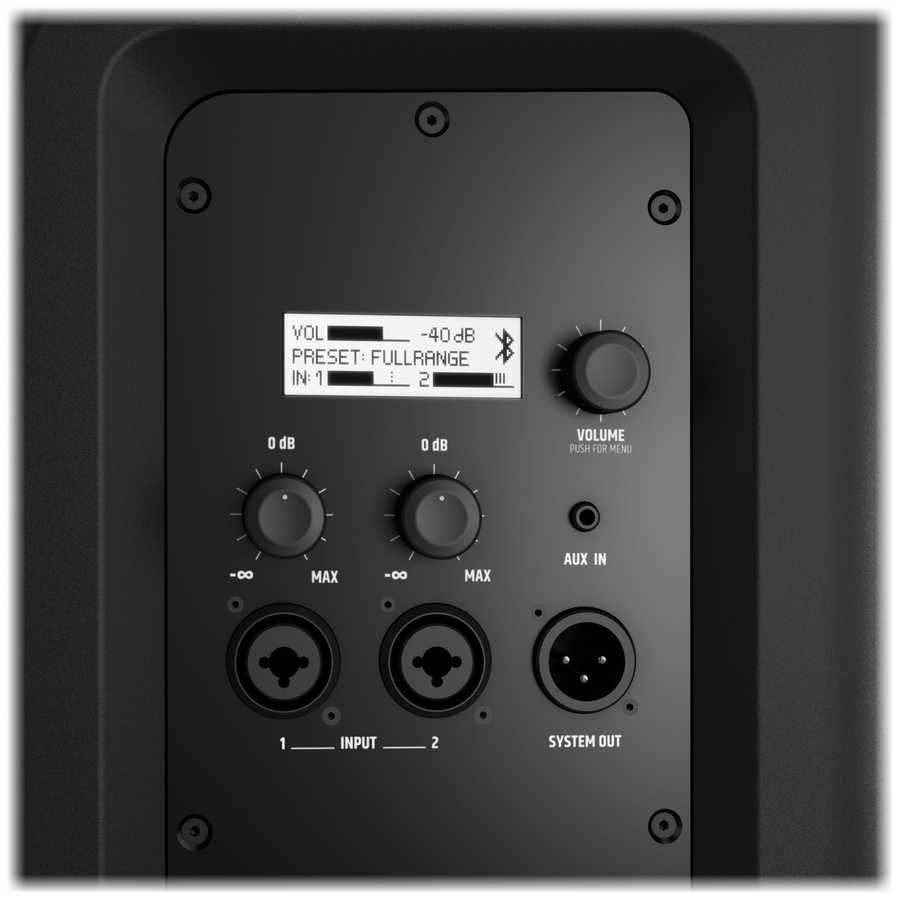

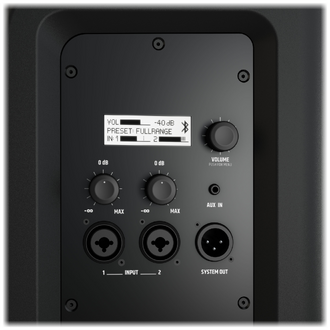

  • 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model
  • 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
  • 6 x M10 flying points
  • Shock-resistant front grille for optimal protection of the speaker
  • 4 aluminium grips with ergonomic, rubber surface
  • Extensive, optionally available accessories for installation and transport

Specifications

Product type: PA loudspeaker
Type: Powered
Bluetooth Audio Decoder: Bluetooth 4.0
Low/mid Woofer dimensions: 12 "
Woofer dimensions (mm): 304.8 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Horn: BEM optimized CD Horn
HF driver dimensions: 1 "
HF driver dimention (mm): 25.4 mm
HF driver magnet: Ferrite
HF driver brand: Custom-made
HF driver voice coil: 1.4 "
HF driver voice coil (mm): 35 mm
Amplifier: Class D
Dispersion (H x V): 90° x 50°
System Power (RMS): 300 W
Peak power: 1200 W
Frequency response: 50 Hz - 20000 Hz
Crossover frequency kHz: 2 kHz
Max. SPL (Peak): 126 dB
Protection circuits: Multiband limiter, over voltage, over-current, thermal overload
Controls: 2 x gain, On / off switch, Rotary/push encoder
Indicators: LC display
Mic/ line inputs: 2
Mic-/ Line Input Connectors: 6.3 mm jack Combination sockets (symmetrical), XLR
Line inputs: 1
Line input connectors: 3.5 mm TRS
Line outputs: 1
Line output connectors: XLR
Power supply: SMPS
Power consumption: 150 W
Ambient temperature (in operation): 0 - 40 °C
Operating voltage: 100 V - 240 V AC / 50 - 60 Hz
Relative Humidity: < 80 %, not condensing
Fuse: T4AL 250 V
Cabinet material: Polypropylene
Cabinet construction: Bass Reflex
Mounting: 36mm flange (0°, 5°), 6 x M10 flying points
Monitor angle: 55 °
Width: 375 mm
Height: 635 mm
Depth: 396 mm



Visit manufacturers website for more information
