The MIDAS M32C Digital Rack Mixer for Installed and Live Sound Applications with 40 Input Channels and 25 Mix Buses

M32C

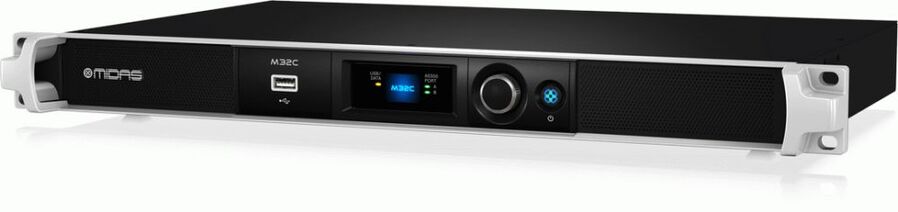

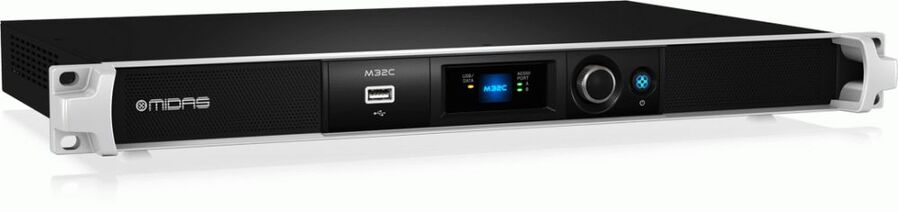

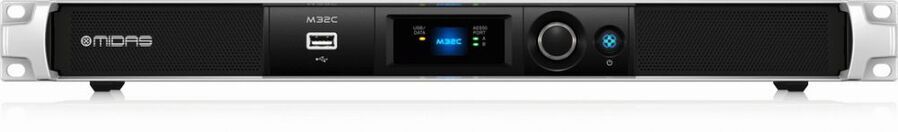

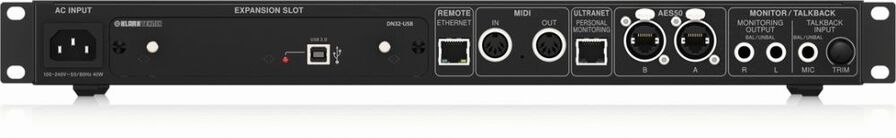

The 40-input, 25-bus M32C takes the brain of the flagship M32 Digital Mixing Console and packs it all into a high-performance aluminium and steel 1U form factor. Combine the M32C with our DL16 or DL32 Stage Boxes to effortlessly run sound with high I/O counts in multiple remote locations. Dual AES50 networking CAT5 connectors allow for up to 96 remote inputs and 48 output channels to be controlled from and processed by the M32C. All of this can be managed concurrently from various locations and instances via our free remote control software applications, M32-EDIT, M32-MIX, and M32-Q.

Above all, M32C is designed to put the power of digital in your hands, without compromise. Midas’ singular focus on a matchless value proposition means M32C integrates advanced features such as integrated personal monitor mixing and true high-speed digital audio networking as standard features.

“Acoustic Integration” - the Live Sound Revolution


Legendary 40-year old British company Turbosound, famous for producing some of the world’s best speaker systems, have teamed up with Midas to seamlessly integrate mixer and speaker systems. We call it “Acoustic Integration”.

The M32C’s ULTRANET bus allows streaming up to 16 channels of pristine digital audio to an array of Turbosound iQ speakers – all on a single CAT5 cable, along with control data to set sound presets remotely.

Furthermore, iQ Series loudspeakers feature “True Physical Modelling” of some of the most popular speakers, which can be easily remote controlled via the M32C, allowing the sound engineer to apply different speaker models in real time from the comfort of the mixing desk.

Monitoring and controlling frequencies has never been easier!


100-Band RTA for all Channel/Bus EQs


The M32C includes a 100-band Real Time Analyzer (RTA) with full Bar and Spectrograph views on the M32-EDIT control application. This high-resolution RTA displays the audio energy distribution in 100 frequency bands over time - capturing a sonogram window of a full 10 seconds.

Switch between the Large RTA view, displaying any available signal in full screen resolution, or the Combined view with the RTA view shown above each of the channel and bus EQ curves.

See the results of your filtering choices in the audio spectrum directly. Additionally, the RTA can be displayed on top of the 31-band graphic EQs in the FX rack.

What are AES50 and SuperMAC?


AES50 simultaneously provides high channel counts, extremely low and deterministic latencies, accurate phase-aligned networked clock distribution, error detection, network redundancy, with simple deployment and ease of use to meet the needs of the live performance industry.

This unique combination also benefits both live and studio recording applications, as well as post-production, broadcasting and audio routing infrastructure. SuperMAC is a proprietary implementation of AES50 owned by KLARK TEKNIK. Originally developed by Sony Pro-Audio Labs in Oxford, UK, it forms the basis of the Audio Engineering Society’s AES50 open standard for digital audio networking – High Resolution Multi-channel Audio Interconnection (HRMAI), as published by the Audio Engineering Society, Inc.

• 48 bidirectional audio channels @ 48 kHz over Neutrik etherCON-terminated shielded (STP) CAT5 cable (max. length 100 meters / 328 feet)
• Single cable duplex interconnection for audio and sample clocks
• Ethernet physical layer audio data transmission
• High channel count and ultra-low deterministic latency (2x3 samples = 1/8 ms per node)
• Accurate phase-aligned clock distribution
• Comprehensive error detection and management
• Provision for redundant networking
• Minimal configuration - total ease of deployment and use
• Ethernet TCP/IP protocol-compatible auxiliary data channel

Virtual Effects Racks


M32C includes an extensive array of onboard effects, rendering outboard processing racks a thing of the past. The Virtual FX rack features 8 true stereo, studio-grade effects engines each assignable to any input, group or output mix bus. Choose from high-end FX modules including a range of reverbs, delays, EQs, dynamics and much more.

Each FX algorithm has been completely re-imagined for stunning performance – typically costing several times the price of the M32C.

Custom-designed, and physically modeled after some of the most iconic and sought-after processors, all effects run inside the low-latency environment of the M32C mix engine, ensuring flawless performance, flexible routing and the end of cable faults forever!

The immaculate tube signal path in Teletronix’ LA-2A Leveling Amplifier has left its exceptional clarity, its rich and warm compression on countless albums of the past decades.

The ultra-smooth optical attenuator is closely modeled in our LA COMPRESSOR. It provides breezing, natural and effortlessly musical compression. (Inspired by Teletronix LA-2A*)

When Urei released the 1176LN Limiting Amplifier in the late 60’s, it broke new ground. Field Effect Transistors employed were just invented and the 1176 was one of the first audio processors to benefit from this new technology.

Our digital re-incarnation, ULTIMO COMPRESSOR, is based on the early Rev. E model and authentically captures the smooth character of the original class-A output stage and its FET’s legendary fast Attack. (Inspired by Urei 1176LN*)

The Fairchild 670 tube compressor not only achieves record bids in high-end vintage gear auctions, it also delivers some of the finest colorations in compressor history. Two small trim VR’s preset the control side chain action, a six-step switch determines the timing, and the two large Input and Threshold knobs adjust the levels.

Our FAIR COMPRESSOR model is true to the original signal path, and conveniently provides models for dual, stereo-linked or M/S operation. (Inspired by Fairchild 670*)

The COMBINATOR is an amazing 5-band compressor that emulates famous broadcasting and mastering compressors.

A highly complex processor, the COMBINATOR utilizes automatic parameter control that produces stunning and “inaudible” results. Makeup-gain for each frequency band will automatically be adjusted by the Spectral Balance Control (SBC) function, to maintain a balanced audio spectrum.

The XTEC EQ1 is undisputedly one of the best passive studio equalizers ever manufactured. Virtually indescribable, recording engineers claim the Pultec EQP-1a to be the “secret sauce” of sound enhancement.

We analyzed this classic to the core and created an exact physical model that reproduces the multi-faceted sound in painstaking detail. Even the transformers and tube output stage have been faithfully modeled! (Inspired by Pultec EQP-1a*)
