Powered Monitor Speaker 5.5" + 1" Drivers With Eu Mains Cable In White

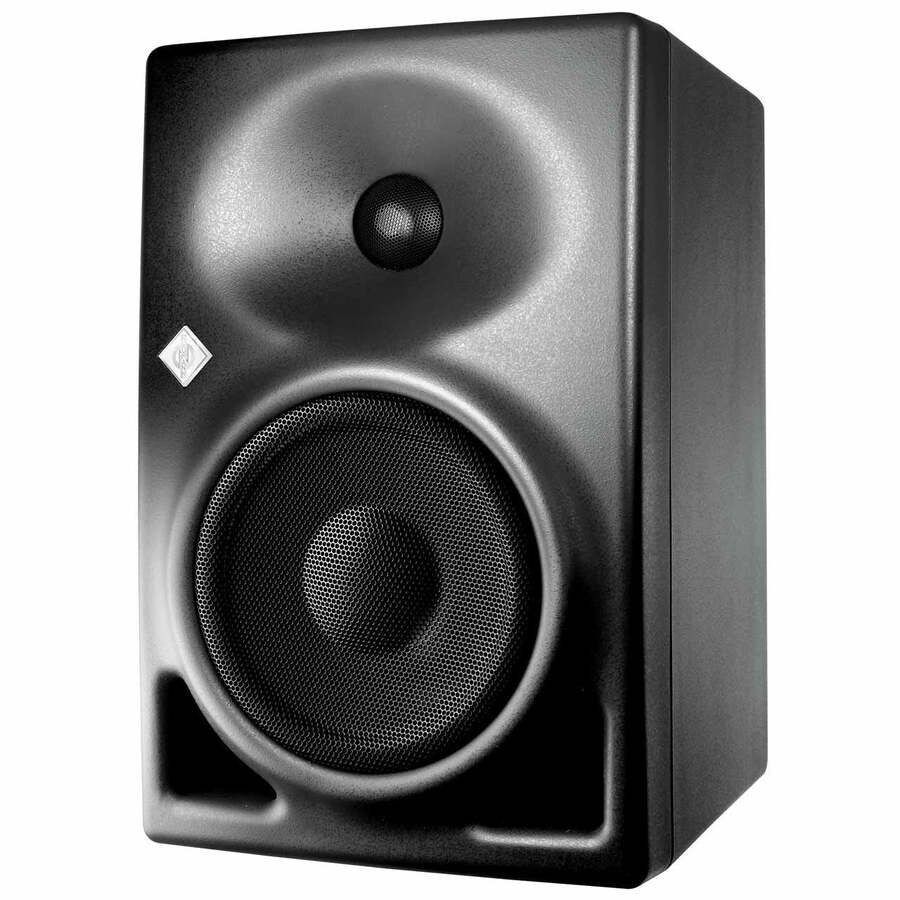

The Neumann KH 120 A is an incredibly detailed and accurate 5 inch powered monitor.  Perfect for tracking, mixing, and mastering in music, broadcast, project, and post-production studios. The KH 120 A studio monitor is designed for use as a near-field loudspeaker or as a rear loudspeaker in larger multi-channel systems

The KH 120 A represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible. It has a Mathematically Modelled Dispersion waveguide (MMD (TM), flexible acoustical controls, analog class-AB amplifiers, a large headroom analog input, and an extensive mounting hardware range. All of this provides the user with maximum versatility over a wide variety of acoustic conditions, source equipment, and physical locations.

• Powerful titanium fabric dome - Low-distortion high-frequency reproduction

• Elliptical Mathematically Modelled Dispersion™

• (MMD™) waveguide - Smoother off-axis response, More forgiving of diverse acoustical environments

• Composite sandwich cone - Damping of break-up modes

• Long-throw bass driver - Low distortions at high sound levels

• Two-color + dimmable Neumann logo - Displays operation status and activation of the extensive protection system

• Robust metal grille - Protects against mechanical damage

• Large front panel ports - Reduced bass compression and easier to mount in tight spaces such as OB vans

• Compact aluminum cabinet

• (magnetically shielded) - Minimizes resonances, better heat dissipation, long life

• Wide horizontal dispersion - Freedom of movement across the mixing console

• Narrow vertical dispersion - Reduces reflections off the mixing console

• One-piece front panel with no discontinuities - Reduced diffraction and smoother frequency response

• Powerful analog amplifiers with large headroom - Improved transient response

• Production consistency - Any KH 120 is “pair-matched” to any other KH 120

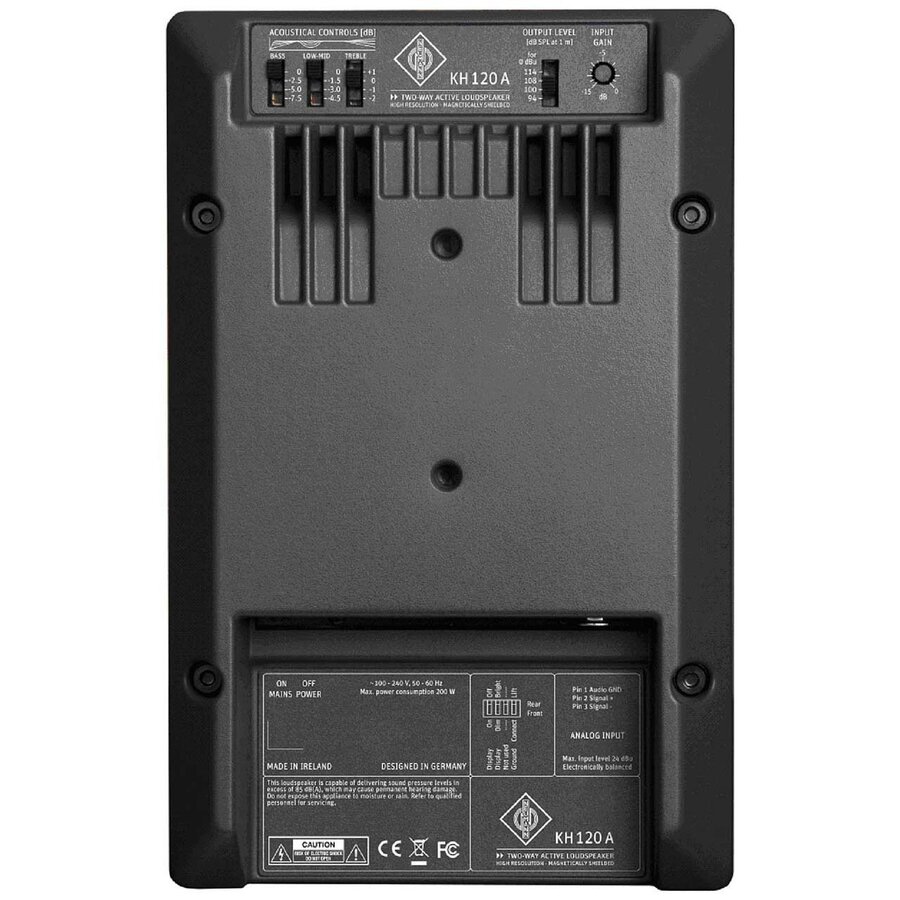

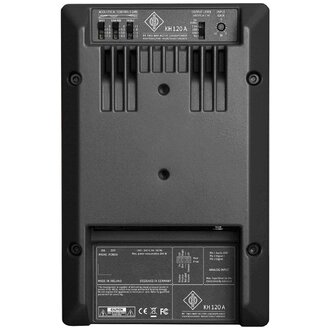

• 4-position bass, low-mid and treble acoustical controls - More control in diverse acoustical environments

• Wide range input gain and output level controls - Easier interfacing with signal sources

• New mounting hardware options - More flexibility in mounting cabinets in more diverse locations

• Display dimmer - For low lighting level conditions or behind the screen applications

• Ground lift - Reduced noise in electrically noisy environments and over-comes ground loops

• Universal switched-mode power supply (100 - 240 V) - One version works in any country and robust to the poor quality mains supply

• Separate woofer and tweeter electronic peak limiters and thermal-protection circuitry - High reliability

SPECIFICATIONS:

Acoustics

• −3 dB free-field frequency response 52 Hz -21 kHz, ± 3 dB

• Pass band free field frequency response 54 Hz - 20 kHz, ± 2 dB

• Self-generated noise

• (with input gain set to 100 dB for 0 dBu) < 20 dB(A) at 10 cm

• Total harmonic distortion < 0.5 % at 95 dB SPL at 1 m > 100 Hz

• Max. SPL in full space / calc. in half space

• at 3% THD at 1m 105.1 / 111.1 dB SPL

• (averaged between 100 Hz and 6 kHz)

• Bass capability: Max. SPL in half space

• at 3% THD at 1m 104.8 dB SPL

• (averaged between 50 Hz and 100 Hz)

• Max. short term SPL with IEC-weighted noise (IEC 60286-5) at 1 m, in typical listening conditions 107 dB(C) SPL

• Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair) 97 dB(C) SPL (full range)

• 104 dB(C) SPL (with subwoofer)

• Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single/pair) 88 / 93 dB(C) SPL (full range)

• 89 / 94 dB(C) SPL (with subwoofer)

Electronics

• Woofer amplifier,

• cont.(peak) output power* 50 W (80 W)

• Tweeter amplifier,

• cont.(peak) output power* 50 W (80 W)

• Controller design Analog, active

• Crossover Frequency 2.0 kHz

• Crossover Slope (dB/oct.) 24, 4th order

• Equalization - Bass 0, −2.5, −5, −7.5 dB

• Equalization - Mid 0, −1.5, −3, −4.5 dB

• Equalization - High +1, 0, −1, −2 dB

• Protection circuitry Limiter: low, high

• Infrasonic filter frequency; slope 30 Hz; 6 dB/oct.

• Analog Input

• Impedance, electrically balanced

• 10k Ohms in position 94/108 dB SPL at 1 m

• 20k Ohms in position 100/114 dB SPL at 1 m

• Input gain control (sensitivity) 0 dBu to −15 dBu

• Output level control 94, 100, 108, 114 dB SPL

• CMRR >56 dB @ 15 kHz

• Maximum input level 24 dBu

• Displays and indicators - power on Neumann logo “White”

• Displays and indicators - limit/clip Neumann logo “Red”

• Mains Power Supply, voltage; frequency 100-240 V~; 50/60 Hz

• Power consumption - Idle 20 W

• Power consumption - Full output AC 200 W

Mechanics

• Cabinet surface finish, color: custom Painted aluminum, Anthracite (RAL 7021)

• Operating conditions +10° C to +40° C (+50° F to +104° F),

• <90% RH, non-condensing

• Transport/storage conditions −25° C to +70° C (−13° F to 158° F),

• <90% RH, non-condensing

• Drivers Magnetically shielded

• Woofer 130 mm (5.25”)

• Tweeter 25 mm (1”)

• Mounting points 2 x M8 on rear panel

• Height x width x depth, mm (inches) 277 x 182 x 220 mm (10 7/8” x 7 1/8” x 8 5/8”)

• Internal net volume / external volume 6.5 liters / 9.7 liters

• Weight 6.4 kg (14.1 lbs)

• Delivery includes 1x KH 120 A

• 2x Main cables (European and US version)

• or 1x UK power cable

• or 1x CCC certified power cable

• 4x Self-adhesive feet

• 1x Operating manual

• 1x Supplement "Getting Started Quickly"
