The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!

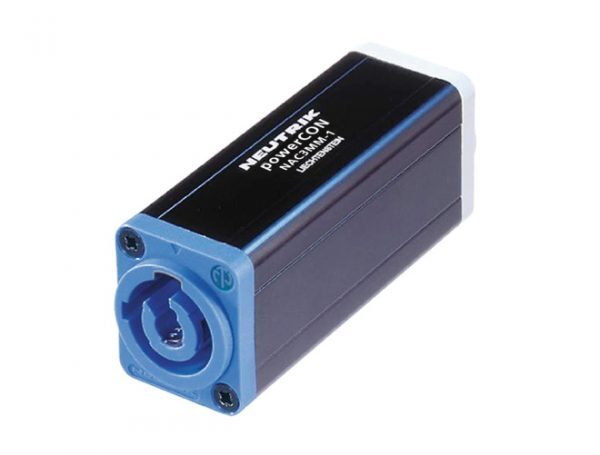

- Title: NAC3MM-1
- Connection Type: Adapter
- Gender: male
Electrical
- Contact resistance: ≤ 3 mΩ
- Dielectric strength: 4 kVdc
- Insulation resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
- Rated current per contact: 20 A rms
- Rated voltage: 250 V ac
Mechanical
- Lifetime: > 1000 mating cycles
- Locking device: Quick Lock
Material
- Contact plating: 2 µm Ag
- Locking element: Steel Ck67
- Shell: Polyamide (PA 6.6 30 % GR)
- Contacts: Bronze (CuNi1Si0.2)
Environmental
- Flammability: UL 94 V-0
- Protection class: IP 20 (mated)
- Safety Requirements: EN/IEC 61984
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
