GENERAL

• Master Level Control
• Wooden Pitch Stick
• Modulation Wheel
• 400 Programs - 8 Banks with 10 Pages each. Each Page has 5 Program locations
• Song Mode - 8 Banks with 50 Songs each (400 Songs in total). Each Song has 5 Song Parts (Programs).
• 5 Live Buffers
• 2 Individual Slot Setups
• 3 Morph sources (Modulation Wheel, Control Pedal, Aftertouch)
• Global Mono output
• Programmable Transpose +/- 6 semitones
• Master Clock functionality with manual, external and tap-tempo rate control
• Internal and MIDI clock source
• MIDI over USB functionality
• Level control
• Aftertouch
• Up to 3 Split Points (4 Keyboard Zones) with visual LED indication between zones
• 3 Split Point width (crossfade) options: Lrg, Sml or Off
• Keyboard Zones editor mode

ORGAN SECTION

• Nord C2D B3 Tone wheel Organ simulation
• Vox Continental and Farfisa models
• 2 Digital Pipe Organ models
• 9 digitally controlled Drawbars
• Physical Drawbars (Compact model only)
• Drawbar Live mode (Compact model only)
• Percussion controls
• Vibrato / Chorus control
• Two Drawbar Presets per Slot
• 2-Part Multitimbral (2 manuals)


PIANO SECTION

• 2 GB memory for Piano sounds
• All sounds can be replaced using Nord Sound Manager (Mac/Win)
• 120 Voice Polyphony
• Categories: Grand, Upright, Electric, Digital, Layer and Clav/Harpsichord
• 4 Selectable Velocity Curves
• Dedicated Piano filters
• Clavinet EQ controls
• String Resonance (Generation 2) on acoustic Grand Pianos and Uprights
• Selectable Soft Piano Release
• Pedal Noise when used with Nord Triple Pedal (optional accessory) on selected acoustic and electric pianos
• Layer (Slot) Detune functionality
• 2-Part Multitimbral

SYNTH SECTION

• Nord Lead A1 Synth Engine with Sample Playback
• Dedicated OLED Display for Oscillator section
• 480 MB Memory for Nord Sample Library 3.0
• All samples can be replaced using Nord Sound Manager (Mac/Win)
• 34 Voice polyphony
• Oscillator Types: Classic, Wavetable (Wave), Formant, Super Wave (S-Wave) and Sample
• Oscillator Configurations: Pitch, Detune*, Shape*, Sync*, Sine, Triangle, Square, Saw, Bell and Noise Mix, FM* and Ring Mod
• *=Not available for Sample/Superwave
• Classic Transistor Ladder Filter (LP M), 12 & 24 dB Low Pass, High Pass, Band Pass and combined Low Pass/Band Pass (LP+BP) filter
• Filter Drive: Off, 1, 2 and 3
• Filter Tracking: Off, 1/3, 2/3 and Full
• 3 Unison modes
• Amplitude envelope (Attack, Decay, Sustain) with Velocity control
• Modulation envelope (Attack, Decay, Sustain) with Velocity control
• LFO with 5 waveforms/modes: Square, Triangle, Ramp Dn, Ramp Up and Sample & Hold
• 400 (8x50) Synth Preset locations with Synth Preset categories
• Arpeggiator (Up, Down, Up-Down and Random). Range: 1, 2, 3 or 4 octaves.
• LFO and Arpeggiator synchronizable to Master Clock
• 2-Part Multitimbral

EFFECTS

• Effect 1: Ring Modulator, Tremolo, Auto Pan, Wah-Wah, AutoWah 1, Autowah 2
• Effect 2: Flanger, Vibe, 2 Phasers, 2 Choruses
• Delay with Tempo, Feedback and Mix (Dry/Wet) controls, Ping Pong (stereo taps), Tap-Tempo, Feedback Filter (HP/LP/BP) and panel selectable Analog mode.
• 3 types of Speaker simulations, JC, Twin and Small
• Filter Mode (HP24/LP24) with Cut-off, Resonance and Mix controls
• Tube amp simulation with adjustable overdrive
• 3-band Equalizer with sweepable mid. EQ ranges: 100 Hz, 200 Hz - 8 kHz and 4 kHz
• Rotary Speaker: selectable speed (Stop, Slow and Fast) and separate overdrive
• Extended Morphable Parameters - (Filter Resonance, Reverb Dry/Wet, Delay Feedback, Amp Drive)
• Effect rates/tempo can be synchronized to the Master Clock
• Compressor with Fast Mode
• Reverb - 6 algorithms with Bright Mode

KEYBOARD

• Nord Stage 3 88: 88-key Velocity sensitive Hammer Action keyboard with Aftertouch. Range: A-C

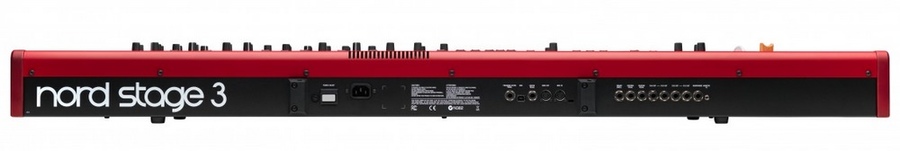

CONNECTIONS

• 4 Assignable Audio Outputs - ¼", 6,35 mm jacks, unbalanced
• Stereo Headphone output - ¼", 6,35 mm stereo jack
• 1 Monitor input - 1/8", 3,5 mm stereo jack
• Sustain Pedal - ¼", 6,35 mm jack. Use a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc.
• Sustain input compatible with Nord Triple Pedal (sold separately)
• Rotor Pedal - ¼", 6,35 mm jack. Use a momentary pedal or a switch type pedal
• Organ Swell Pedal - ¼", 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
• Control Pedal - ¼", 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
• Program Change Pedal input - ¼", 6,35 mm jack. Use a momentary two-button pedal like e.g. Boss FS-6, Boss FS-7 etc.
• MIDI In - 5 pin DIN connectors
• MIDI Out - 5 pin DIN connectors
• USB - type B connector for USB MIDI, Software Update and Sound Transfer
• Power Cord with IEC C14 connector

INCLUDED ACCESSORIES

• User Manual
• Dust cover (88 and HP76 only)
• Sustain pedal (88 and HP76 only)
• Power cord
• Nord Sample and Piano DVDs
• USB cord

OPTIONAL ACCESSORIES

• Nord Keyboard Stand EX
• Nord Soft Case
• Nord Triple Pedal
• Nord Music Stand EX
• Nord Half-Moon Switch (for Compact model)

DIMENSIONS

• Nord Stage 3 88: 1287 mm (50.7"), 118 mm (4.7"), 334 mm (13")

WEIGHT

• Nord Stage 3 88: 19 kg (41.8 lb)
