Nord Stage 4 Compact Semi-Weighted Action Digital Piano E to E 73 Notes, Aftertouch, Drawbars 25NORDSTAGE4COMPACT $ 6799 $7,099.00
How to get it Learn More
Delivery Not Available
Order Special Order - Request Availability
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

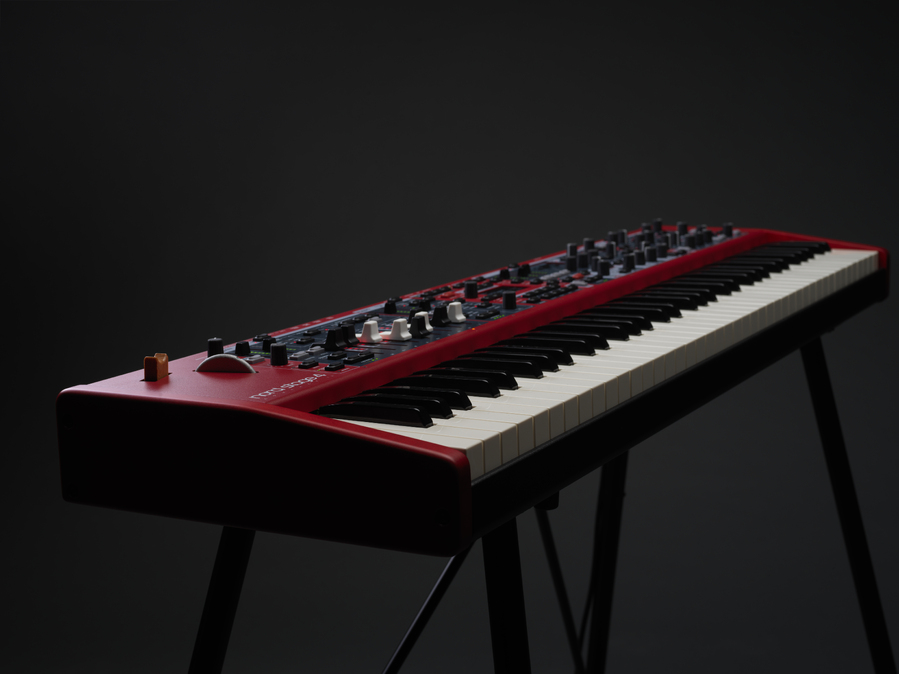

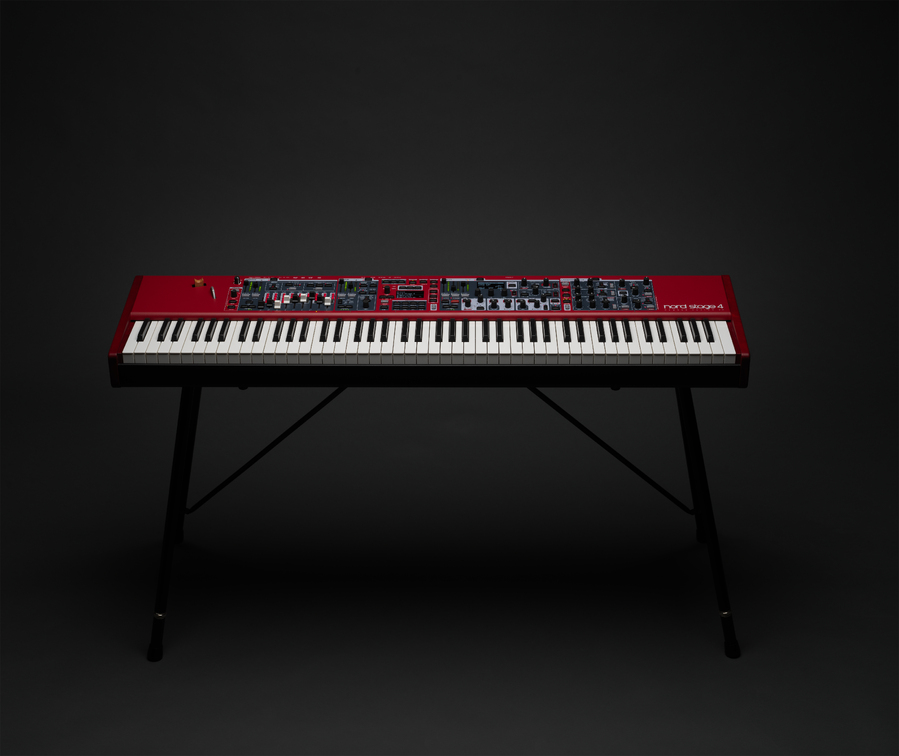

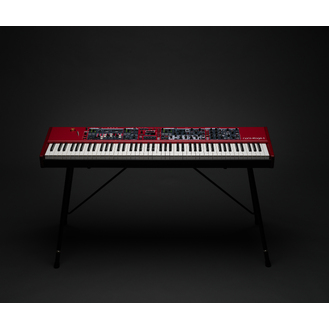

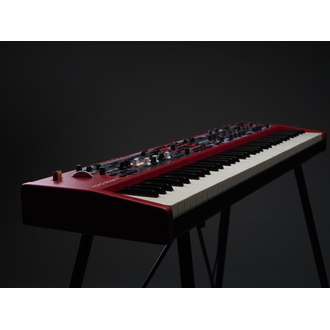

Nord Stage 4 Compact Semi-Weighted Hammer Action Digital Piano

A new generation of our iconic flagship series.
With an intuitive new panel design, a premium triple sensor keybed, complete effect sections for each layer and massive enhancements to ouraward-winning technologies, the Nord Stage 4 sets a new standard.

The Nord Stage 4 features a brand new panel design with dedicated LED faders for each Layer, providing exceptional overview and flexibility when creating sounds and performing live. The new Preset Library is packed with inspiring ready-to-use Piano, Synth and Organ sounds for quick and smooth patch creation. The Layer Scene lets you seamlessly switch between two different sound setups at the touch of a button. Adding a powerful new Effect section coupled with versatile pedal options and a premium Triple Sensor keybed, the Nord Stage 4 offers a new level of musical expression.

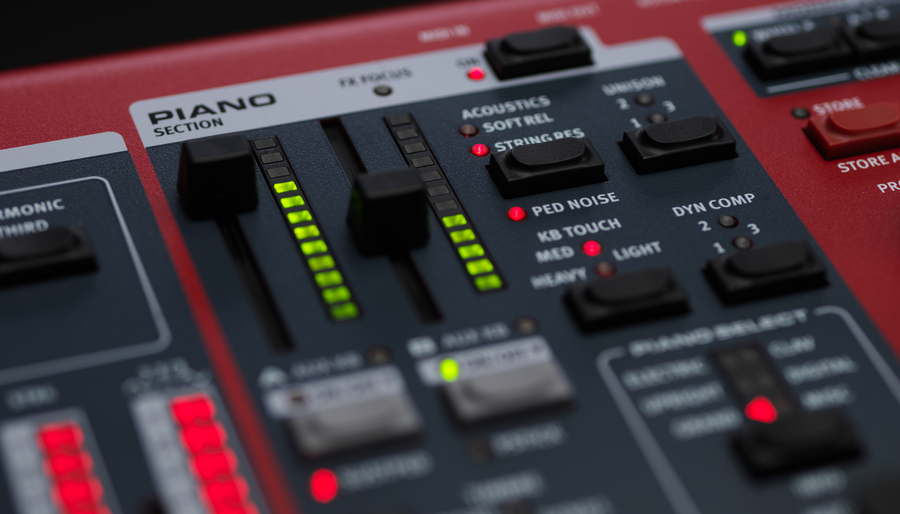

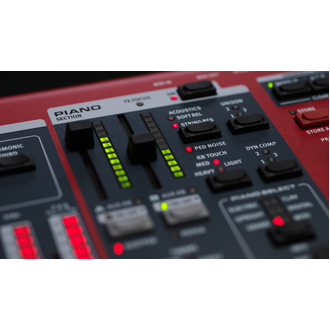

THE PIANO

The Nord Stage 4 comes with a new enhanced collection of Grands, Uprights and Electric Pianos from our exclusive Nord Piano Library combined with new features such as Dynamic compression and Unison.

  • Enhanced collection of Uprights, Grands,
  • EPs and more
  • Dynamic Compression
  • Unison feature
  • Creative Timbre presets

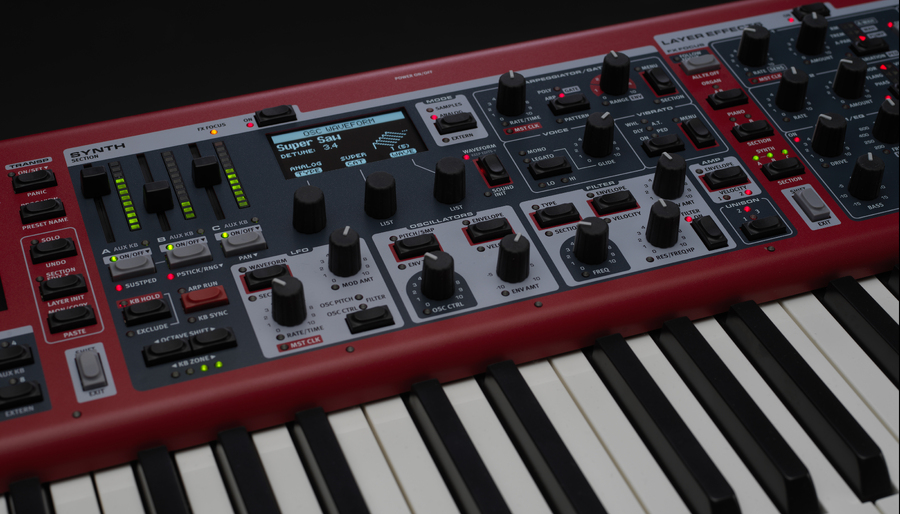

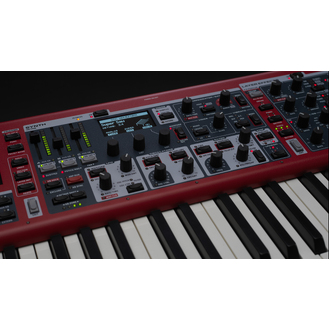

THE SYNTH

The Synth section with its three independent Layers is based on the powerful Nord Wave 2 Synth Engine, including Virtual Analog synthesis,Samples, FM and Digital Waves. An extensive new collection of samples from the Nord Sample Library offers a broad sonic palette of Strings, Bass, Choirs, Guitars and much more. The advanced Arpeggiator features new Polyphonic, Gate and Pattern modes and can be used for a huge variety of rhythmic applications withcustomizable patterns.

  •  Nord Wave 2 Synth Engine
  •  3 independent Synth Layer
  •  Doubled sample memory
  •  Enhanced samples with Tru-Vibrato, Unison and Round Robin
  •  Extensive real time controlp
  •  Advanced Arpeggiator with Polyphonic, Gate and Pattern modes
  •  Extern mode for advanced MIDI control

THE ORGAN

The Organ section features our award-winning simulations of B3 Tonewheel, B3 Bass, classic Vox and Farfisa as well as two Pipe Organ models. AllStage 4 models are equipped with our new Physical drawbars with LED indicators for optimal hands-on experience and overview.

  •  Award-winning organ simulations of B3,
  • Vox/Farfisa and Pipe Organ modelp

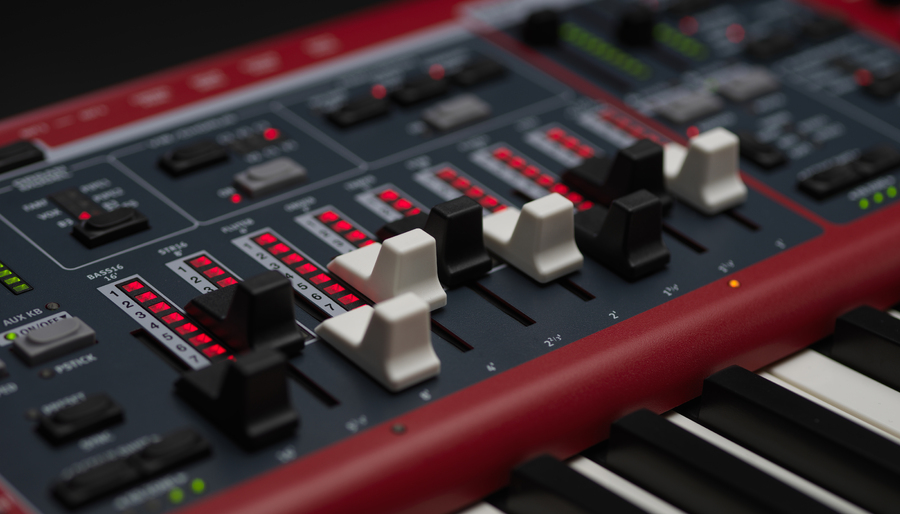

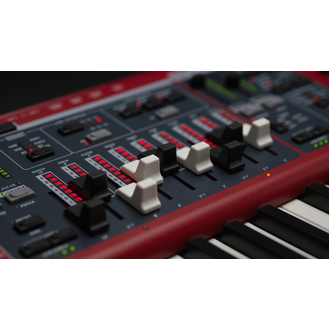

  •  Physical drawbars with LED indicatorp
  •  New B3 Bass mod
  •  Drawbar Live mod
  •  Model 122 Vintage Rotary Speaker with
  • normal or close mic positions

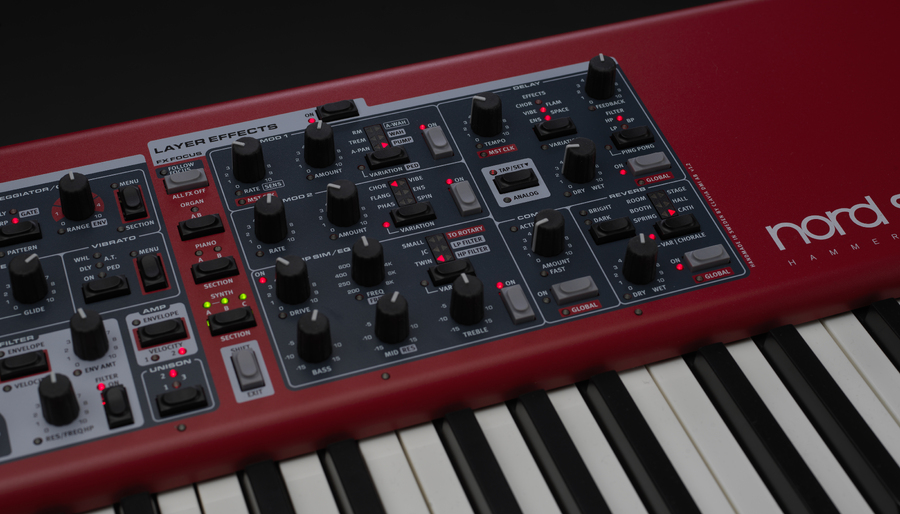

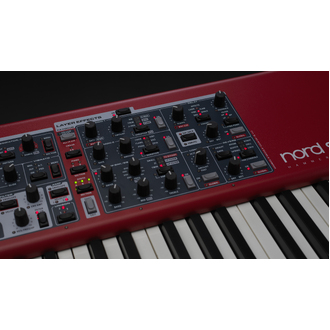

THE EFFECTS

The Nord Stage 4 has a powerful new Effect section offering a complete setup of Effects for each Layer. The extensive range of Effects includes a new Pump effect for tempo synced or pedal controlled side chain modulation, a new Spin effect and brand new variations of Reverb, Delay, Amps and Modulation effects.

  • Dedicated Effect section per Layer
  • New Variations for Modulation, Amp, Delay and Reverb Effect
  • New Spring, Booth and Cathedral Rever
  • New Pump effect
  • New Spin effect
  • New Flam and Space Delay



The Nord Stage 4 comes in three models:

Nord Stage 4 88 with a fully weighted Triple Sensor keybed (A-C) with aftertouch and Physical Drawbars with LED indicators.

Nord Stage 4 73 with a fully weighted Triple Sensor keybed (E-E) with aftertouch and Physical Drawbars with LED indicators.

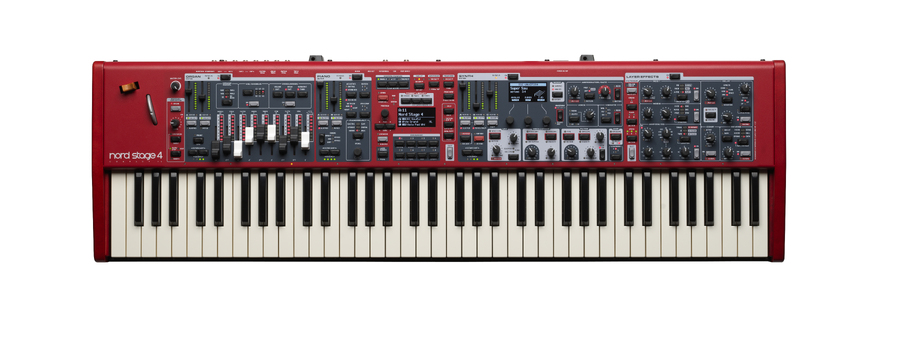

​Nord Stage 4 Compact with a 73-note Semi Weighted Waterfall Triple Sensor keybed (E-E) with aftertouch and Physical Drawbars with LED indicators.

THE PEDALS (optional Accessory)

Our new range of premium pedals are equipped with continuous sensors for optimal dynamic control. The left and middle pedals of the Nord Triple Pedal 2 can be assigned to control the Pump effect, Layer Scenes, Program Changes, Rotor Speed and more. Both pedals give you access to the Pedal Noise and Half Damping features of the Piano section. Accessories

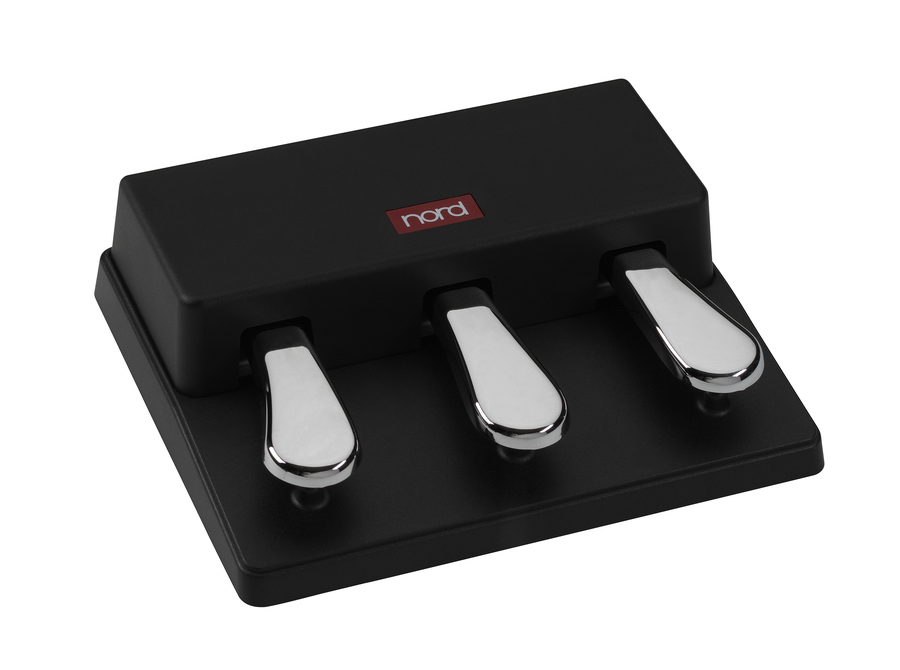

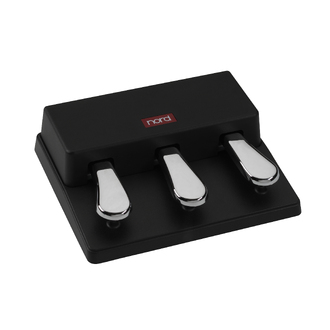

Nord Triple Pedal 2

  • Continuous sensors for maximum control
  • Pedal Noise and Half Damping
  • Can be assigned to control Layer Scene II, Pump, Tap Tempo, Synth Vibrato, Program Up/Dn and Rotor Speed

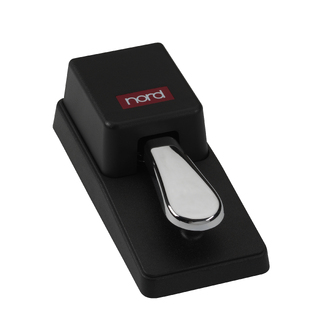

Nord Sustain Pedal 2

  • Continuous sensor for maximum control
  • Pedal Noise and Half Damping
  • Can be assigned to control Rotor Speed or used as a Morph source

Specifications

GENERAL

  • Master Level Control
  • Wooden Pitch Stick
  • Modulation Wheel
  • 400 Programs - 8 Banks with 10 Pages each. Each Page has 5 Program locations
  • Song Mode - 8 Banks with 50 Songs each (400 Songs in total). Each Song has 5 Song Parts (Programs).
  • 5 Live Buffers
  • 2 Individual Slot Setups
  • 3 Morph sources (Modulation Wheel, Control Pedal, Aftertouch)
  • Global Mono output
  • Programmable Transpose +/- 6 semitones
  • Master Clock functionality with manual, external and tap-tempo rate control
  • Internal and MIDI clock source
  • MIDI over USB functionality
  • Level control
  • Aftertouch
  • Up to 3 Split Points (4 Keyboard Zones) with visual LED indication between zones
  • 3 Split Point width (crossfade) options: Lrg, Sml or Off
  • Keyboard Zones editor mode

ORGAN SECTION

  • Nord C2D B3 Tone wheel Organ simulation
  • Vox Continental and Farfisa models
  • 2 Digital Pipe Organ models
  • 9 digitally controlled Drawbars
  • Physical Drawbars (Compact model only)
  • Drawbar Live mode (Compact model only)
  • Percussion controls
  • Vibrato / Chorus control
  • Two Drawbar Presets per Slot
  • 2-Part Multitimbral (2 manuals)


PIANO SECTION

  • 2 GB memory for Piano sounds
  • All sounds can be replaced using Nord Sound Manager (Mac/Win)
  • 120 Voice Polyphony
  • Categories: Grand, Upright, Electric, Digital, Layer and Clav/Harpsichord
  • 4 Selectable Velocity Curves
  • Dedicated Piano filters
  • Clavinet EQ controls
  • String Resonance (Generation 2) on acoustic Grand Pianos and Uprights
  • Selectable Soft Piano Release
  • Pedal Noise when used with Nord Triple Pedal (optional accessory) on selected acoustic and electric pianos
  • Layer (Slot) Detune functionality
  • 2-Part Multitimbral

SYNTH SECTION

  • Nord Lead A1 Synth Engine with Sample Playback
  • Dedicated OLED Display for Oscillator section
  • 480 MB Memory for Nord Sample Library 3.0
  • All samples can be replaced using Nord Sound Manager (Mac/Win)
  • 34 Voice polyphony
  • Oscillator Types: Classic, Wavetable (Wave), Formant, Super Wave (S-Wave) and Sample
  • Oscillator Configurations: Pitch, Detune*, Shape*, Sync*, Sine, Triangle, Square, Saw, Bell and Noise Mix, FM* and Ring Mod
  • *=Not available for Sample/Superwave
  • Classic Transistor Ladder Filter (LP M), 12 & 24 dB Low Pass, High Pass, Band Pass and combined Low Pass/Band Pass (LP+BP) filter
  • Filter Drive: Off, 1, 2 and 3
  • Filter Tracking: Off, 1/3, 2/3 and Full
  • 3 Unison modes
  • Amplitude envelope (Attack, Decay, Sustain) with Velocity control
  • Modulation envelope (Attack, Decay, Sustain) with Velocity control
  • LFO with 5 waveforms/modes: Square, Triangle, Ramp Dn, Ramp Up and Sample & Hold
  • 400 (8x50) Synth Preset locations with Synth Preset categories
  • Arpeggiator (Up, Down, Up-Down and Random). Range: 1, 2, 3 or 4 octaves.
  • LFO and Arpeggiator synchronizable to Master Clock
  • 2-Part Multitimbral

EFFECTS

  • Effect 1: Ring Modulator, Tremolo, Auto Pan, Wah-Wah, AutoWah 1, Autowah 2
  • Effect 2: Flanger, Vibe, 2 Phasers, 2 Choruses
  • Delay with Tempo, Feedback and Mix (Dry/Wet) controls, Ping Pong (stereo taps), Tap-Tempo, Feedback Filter (HP/LP/BP) and panel selectable Analog mode.
  • 3 types of Speaker simulations, JC, Twin and Small
  • Filter Mode (HP24/LP24) with Cut-off, Resonance and Mix controls
  • Tube amp simulation with adjustable overdrive
  • 3-band Equalizer with sweepable mid. EQ ranges: 100 Hz, 200 Hz - 8 kHz and 4 kHz
  • Rotary Speaker: selectable speed (Stop, Slow and Fast) and separate overdrive
  • Extended Morphable Parameters - (Filter Resonance, Reverb Dry/Wet, Delay Feedback, Amp Drive)
  • Effect rates/tempo can be synchronized to the Master Clock
  • Compressor with Fast Mode
  • Reverb - 6 algorithms with Bright Mode

KEYBOARD

  • Nord Stage 3 88: 88-key Velocity sensitive Hammer Action keyboard with Aftertouch. Range: A-C

CONNECTIONS

  • 4 Assignable Audio Outputs - ¼", 6,35 mm jacks, unbalanced
  • Stereo Headphone output - ¼", 6,35 mm stereo jack
  • 1 Monitor input - 1/8", 3,5 mm stereo jack
  • Sustain Pedal - ¼", 6,35 mm jack. Use a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc.
  • Sustain input compatible with Nord Triple Pedal (sold separately)
  • Rotor Pedal - ¼", 6,35 mm jack. Use a momentary pedal or a switch type pedal
  • Organ Swell Pedal - ¼", 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
  • Control Pedal - ¼", 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
  • Program Change Pedal input - ¼", 6,35 mm jack. Use a momentary two-button pedal like e.g. Boss FS-6, Boss FS-7 etc.
  • MIDI In - 5 pin DIN connectors
  • MIDI Out - 5 pin DIN connectors
  • USB - type B connector for USB MIDI, Software Update and Sound Transfer
  • Power Cord with IEC C14 connector

INCLUDED ACCESSORIES

  • User Manual
  • Dust cover (88 and HP76 only)
  • Sustain pedal (88 and HP76 only)
  • Power cord
  • Nord Sample and Piano DVDs
  • USB cord

OPTIONAL ACCESSORIES

  • Nord Keyboard Stand EX
  • Nord Soft Case
  • Nord Triple Pedal
  • Nord Music Stand EX
  • Nord Half-Moon Switch (for Compact model)

DIMENSIONS

  • Nord Stage 3 88: 1287 mm (50.7"), 118 mm (4.7"), 334 mm (13")

WEIGHT

  • Nord Stage 3 88: 19 kg (41.8 lb)
