Description

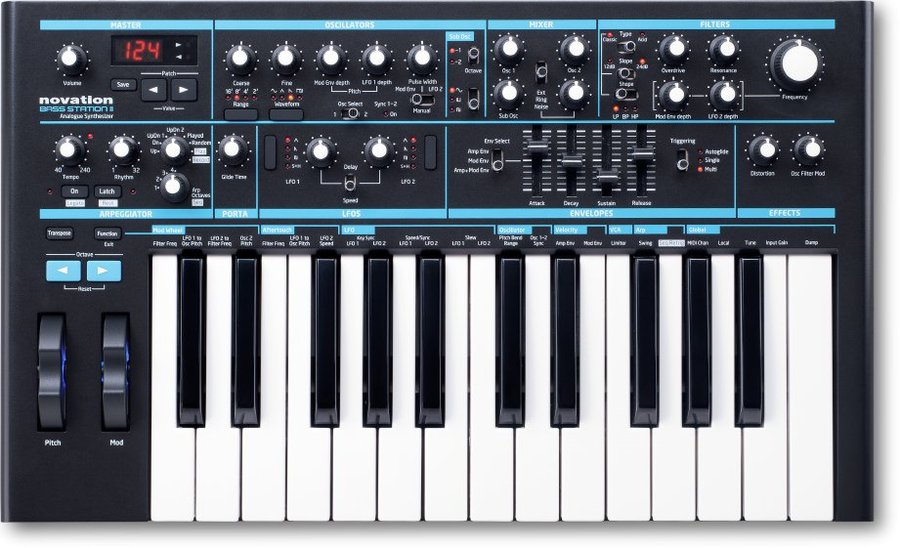

Novation Bass Station II 25 Note Analogue Mono Synth Keyboard

Create a huge variety of sounds

Two pure analogue, sync-able and tuneable oscillators with four selectable waveforms, plus a third sub-oscillator, noise and ring modulation.

Enormous bass and shrieking leads

Switch the multi-mode Classic Filter between low, hi and band pass with 12 and 24dB slopes.

Improved analogue filter stage

A 24dB Acid Filter that is even darker, wetter and smoother than the Classic.

Turn Jekyll to Hyde

Create crunchy, aggressive sounds with fully analogue distortion, filter-modulation effects and a separate filter overdrive.

Easily load and save patches

Comes with 64 patches that cover a huge range of styles, but you can create, save, archive and swap 64 of your own too.

Get instant inspiration

Record notes, ties, rests and rhythms in real time using the step sequencer and arpeggiator, then easily store them, recall them and use them with any patch you like.

Experiment easily

Get your hands on loads of controls, cleverly arranged for intuitive patch design and sound editing.

Flexible modulation

Triangle, sawtooth and square LFO waveforms, as well as sample and hold, and two ADSR envelopes for filter, pitch and pulse width modulation.

Connect to hardware and software

Connect and sync to your music software and MIDI-compatible hardware.

Player's Keyboard

Full sized 25-note) velocity-sensitive keyboard, with a fast synth-action and aftertouch.

Store unlimited sounds

Keep as many patches as you like on your Mac or PC using the Librarian Software.

Specifications

Hardware & controller assignment

  • 25 note synth-action keyboard
  • Aftertouch can be assigned to modulate:
    • Filter frequency
    • LFO 1to Osc pitch
    • Osc 2 speed
  • Pitch wheel
  • Modulation wheel can be assigned to:
    • LFO 2 to filter frequency
    • LFO 1 to Osc pitch
    • Osc 2 pitch
  • Octave up/ down buttons
  • 64 factory presets
  • 64 slots for user patches (and patch dump facility for storing more)
  • Master volume dial

Inputs and Outputs

  • USB MIDI (for connecting & powering Bass Station II via host computer)
  • Mono output on 1/4" TRS jack
  • Headphone output on 1/4" TRS jack
  • External input on 1/4" TRS jack
  • Sustain pedal input on 1/4" TS jack
  • MIDI IN / MIDI OUT ports on 5 pin din
  • DC power input
  • Switch between power off / DC powered / bus powered

Synth Engine

Oscillators

  • Osc 1
  • Osc 2
  • Sub Osc (3)
  • Noise generator
Osc 1 & 2
Select between waveforms:
  • sine
  • triangle
  • sawtooth
  • square/variable pulse width
Features
  • Sync 1 & 2
  • Detune
  • Octave range
  • Pitch bend
  • Pitch modulation from Mod Envelope and/or LFO 1
  • Pulse width modulation from Mod Envelope and/or LFO 2
Sub Osc (3) which is tracked to Osc 1
Select independently between waveforms:
  • Sine
  • Square
  • Narrow pulse
Features
  • All modulation and tuning tracked to Osc 1
  • Independent octave select

Mixer

  • Osc 1 level
  • Osc 2 level
  • Sub Osc level
  • Noise generator level
  • Ring modulation depth
  • External signal level

Filter

Two filter types
  • Acid type (diode ladder filter design)
  • Classic type (derived from original Bass Station)
Features
  • Cutoff
  • Resonance
  • Overdrive
  • Filter frequency to Mod Envelope depth
  • Filter frequency to LFO 2 depth
Select 'Classic' filter between:
  • Low pass
  • Band pass
  • High pass
  • 12dB slope
  • 24dB slope

Envelopes

Two ADSR Envelopes (Attack/Decay/Sustain/Release)
  • Amp Envelope
  • Mod Envelope
  • Combined control of both Envelopes
Select triggering mode between:
  • Single trigger (holds envelope state when new note is played)
  • Multi trigger (re-triggers with every new note played)
  • Autoglide (engages portamento)
    There is also a VCA limiter

LFO

Two LFOs each selectable between:
  • Triangle
  • Sawtooth
  • Square
  • Sample and hold
  • Both LFOs independently adjustable between rate and delay time
  • Key sync LFO 1 & 2
  • LFO slew on LFO 1& 2 (low pass filter on the LFO waveform)

Effects

  • Distortion send
  • Oscillator filter mod amount (FM effect created by Oscillator 2 modulating filter freq)

Step Sequencer/Arpeggiator

Arpeggiator
  • Up to 32 different patterns
  • Select between 1-4 octave range
  • Swing function
  • Select direction:
    • up
    • down
    • up / down 1
    • up / down 2
    • As played
    • Random
  • Latch (hold the arpeggiator)
Step Sequencer
  • Up to four sequences
  • Assign one of 32 preset rhythms or create your own
  • insert rests or legato (slide)
  • Sequencer re-trigger function

Portamento

  • Adjust glide time
  • Single trigger or re-trigger modes
  • Integrate into step sequencer and arpeggiator

Power Requirements

  • USB bus powered
  • 9V DC power supply included
  • Maximum power consumption 9V DC 300mA

Product Dimensions

  • 457mm (18”) width x 273mm (10.75”) depth x 76mm (3”) height
