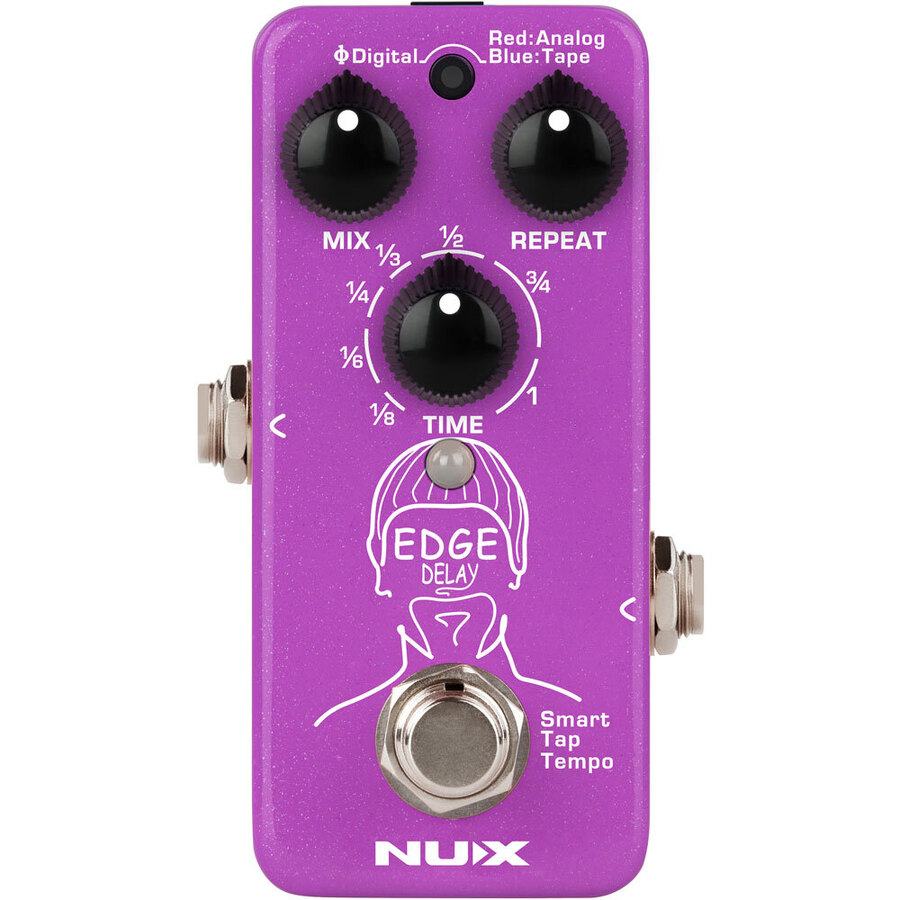

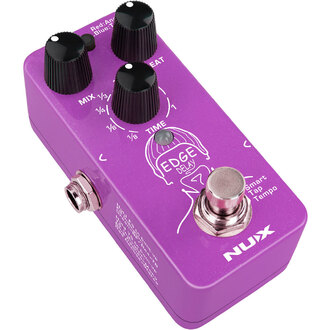

The Edge delay (NDD-3) is a mini delay pedal with 3 different delay types including Phi Digital Delay, Analog Delay, and Tape Echo. You can switch delay types by pressing and holding the footswitch

NUX's modern-tech DSP yields a perfect combination of both worlds: analog and digital. To achieve all of the objectives, our engineers had to develop an algorithm that mimics the principles of BBD chips - the key component of Analog Chorus effects. Quality-grade BBD chips in large mass have become incredibly rare, so this method is not practical for making an affordable analog chorus device..

FEATURES:

• 3 delay types in a mini enclosure
• Phi Digital Delay: Musical digital delay with golden ratio 2nd repeat head
• Analog Delay: BBD Warm sound with natural treble decay
• Tape Echo: High-frequency saturation and low-end decay
• Sub-division with Smart Tap Tempo. (Maximum: 1500ms)
• True-bypass or Buffer-bypass  (Trails)
• Supports Stereo I/O with TRS Cable
• Low power consumption. (less than 100mA)
• Analog dry signal for low noise and zero latency
• Mini but mighty! It also supports Stereo input & output (Use 1/4" TRS plug, and choose Stereo mode)

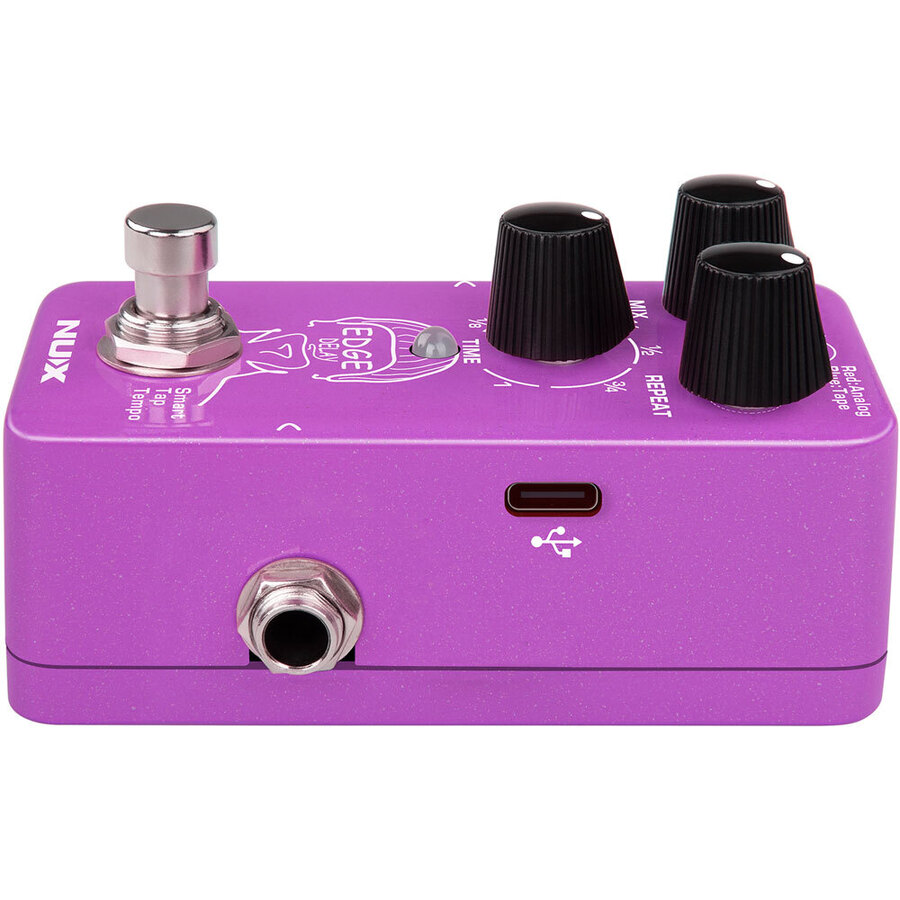

• The USB-C port is for firmware update. Connect USB cable to a PC and hold the footswitch to boot-up the device and to enter the DFU (Device Firmware Update) mode. Once connected you can do firmware updates using DFU updater software

SPECIFICATIONS:

• Input Impedance: 1M
• Output Impedance: 10k
• Dynamic Range: 103 dB
• DSP Processing: 48KHz / 32-bit
• A/D D/A Sampling Rate: 48KHz / 24-bit

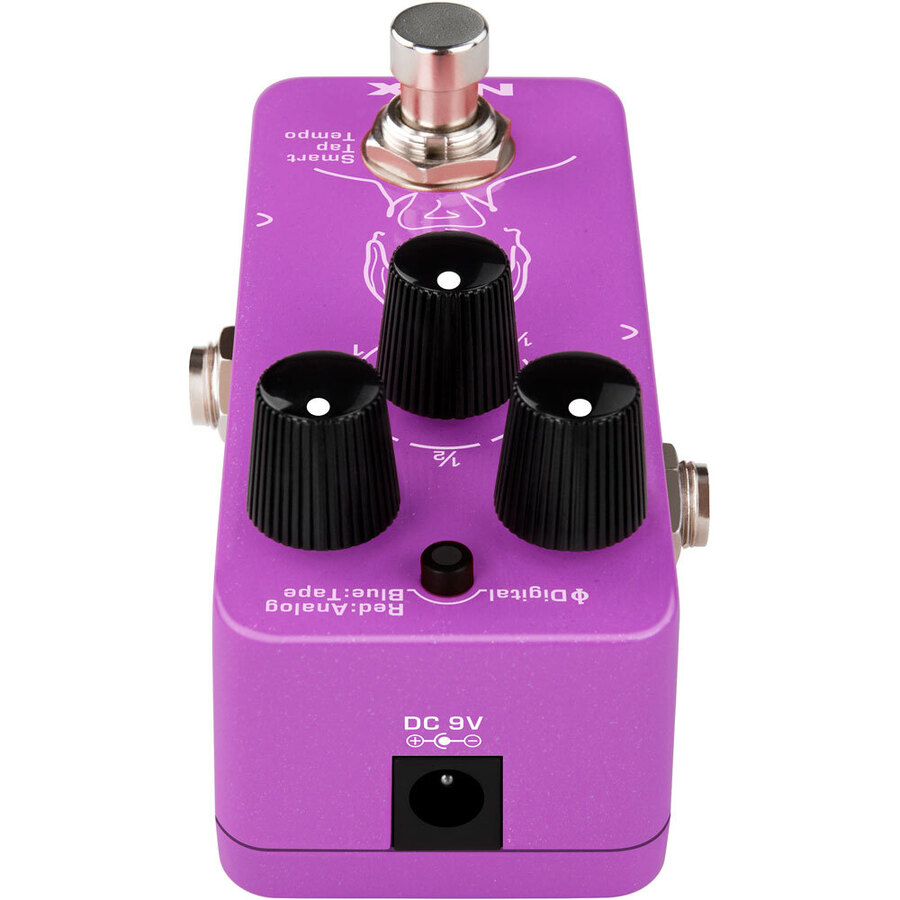

• Power: 9V DC (Negative tip, Optional ACD-006A adapter)
• Current Draw: Less than 100mA
• Dimensions: 94 x 51 x 53mm (L x W x H)
• Weight: 175g

TYPES OF DELAY

• Phi Digital Delay is a digital delay with a golden ratio 2nd repeat head. It makes your guitar sounds more musical in nature. Easily tweak the knobs, setup the desired sub-division, engage the smart tap tempo, and youre ready to go.

• Analog Delay is based on the vintage BBD (Bucket Brigade Device) delay. It produces a very warm sound with natural treble decay. Very suitable for scorching ballad solos with romantic atmosphere. Our unique algorithm replicates the physical infinity oscillation feedback while you tweak the time knob from max to min quickly.

• Tape Echo is based on the legendary Space Echo machine. We digitally recreated the retro-feel of a real tape and capstan configuration. The Tape Echo emulates the high-frequency saturation and low-end decay of magnetic tape. Its gently modulated for added richness and color. Tweak the time knob from max to min quickly, and you can get the infinity feedback.

SUB-DIVISION WITH SMART TAP TEMPO

• Set the Time knob parameter to your desired sub-division, then you can engage the smart tap tempo by pressing the footswitch twice to get a dynamic sub-division tap tempo delay .
• Press the footswitch once to engage/disengage the effect. Press twice, to access Smart Tap Tempo. In the meantime, the delay time is related to tap tempo and current sub-division parameter. (The FS indicator will flash as current BPM.)
