Concorde MKII Twin Mix

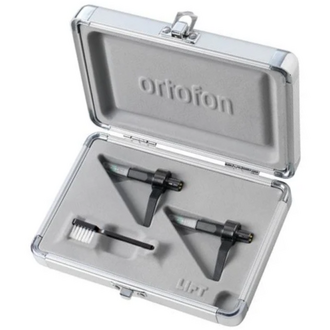

The Concorde TWIN includes two Concorde MkII MIX cartridges with preinstalled styli, all conveniently housed within a Flight case. The MIX is a general-purpose model for scratch and back-cueing, providing great performance and durability. With transparent sound across the spectrum and excellent handling ability, the MIX represents one of the longest running values in DJ cartridges.

Stylus

The Concorde MkII MIX provides great performance and durability with a good quality spherical stylus and a solid cantilever and serves general purposes well.

Output

At the forefront of the Concorde series, the MIX cartridge not only offers a pocket-friendly option but also ensures high sound quality and adept tracking ability. Moreover, it provides a reasonable output of 6 mV and transparency across the sonic spectrum.

Watch the MIX fly

With transparent sound across the spectrum and excellent handling ability, the MIX represents one of the longest running values in DJ cartridges. The new Concorde is on point! It looks good, sounds good, and feels great! - DJ Rafik

Specifications

    Channel balance at 1 kHz
    1,5 dB
    Output voltage at 1 kHz, 5cm/sec
    6 mV
    Channel seperation at 1 kHz
    20 dB
    Channel seperation at 15 kHz
    15 dB
    Tracking ability at 315Hz at recommended tracking force
    100 μm
    Compliance, dynamic, lateral
    14 μm/m N
    Stylus type
    Spherical
    Stylus tip radius
    R 18 μm
    Tracking force range
    2 - 4 g
    Tracking force, recommended
    3 g
    Internal impedance, DC resistance
    700 Ohm
    Cartridge weight
    18,5 g
    Recommended load resistance
    47 kOhm
    Internal inductance
    450 mH
    Recommended load capacitance
    200-600 pF
    Replacement stylus
    Stylus CC MKII Mix
