PreSonus ATOM Producer Lab Complete Production Kit PRE-ATOM-LAB $ 499.99 $588.22
How to get it Learn More
Delivery Not Available
Order Special Order - Request Availability
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

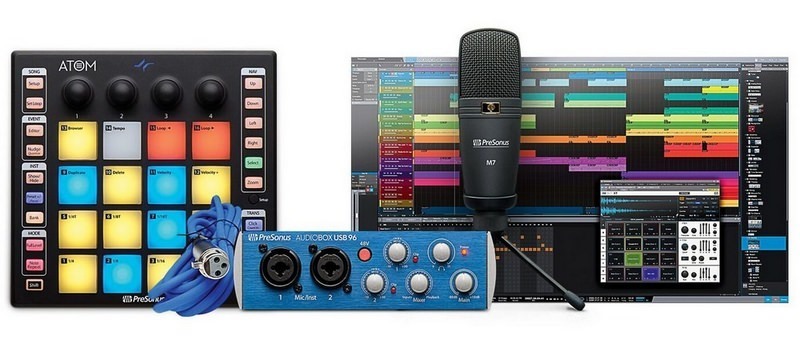

PreSonus ATOM Producer Lab Complete Production Kit

Produce your tracks and get professional results with this tightly integrated, all-PreSonus® production kit. Start triggering samples and loops in real-time with the flexible and intuitive ATOM pad controller. Record vocals and create your own sample library with the bus-powered AudioBox USB® 96 audio/MIDI interface and M7 large-diaphragm condenser microphone. Capture and mix it all in Studio One® Artist with the bonus MVP Loop content library and the Studio Magic Plug-in Suite for professional results.

The ATOM Producer Lab includes ATOM and Studio One, and adds the AudioBox USB 96 audio/MIDI interface and the M7
large-diaphragm condenser microphone into a single production powerhouse bundle. With added loop and sample content from
MVP Loops and world-class effects and plug-ins via the Studio Magic Plug-in Suite, burgeoning producers can get everything
they need to make beats and track vocals in a single purchase. It even includes all the cables you need to hook it all up.

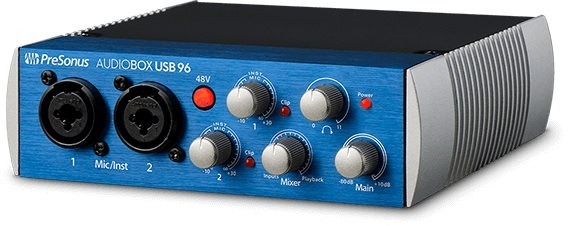

AudioBox USB 96: Simple, reliable, and portable

The simple, handy AudioBox USB 96 audio/MIDI interface has just the right features for your recording needs, including two combo mic/instrument inputs and zero-latency monitoring, so you can simply plug in and start recording right away. Bus-powered, built to travel, compatible with most recording software for Mac and Windows, and equipped with high-performance microphone preamplifiers and professional-quality, 24-bit, 96 kHz converters, the AudioBox USB 96 makes high-definition recording easy.

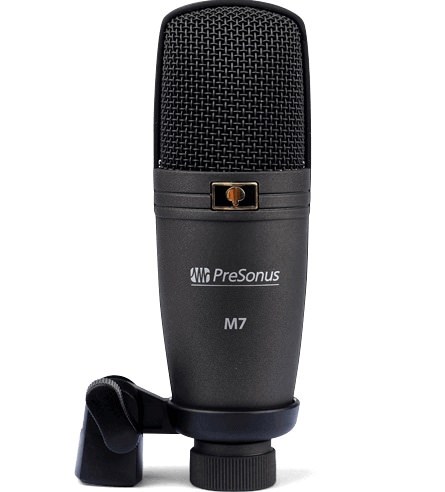

Capture every nuance with the M7 condenser microphone

Get your mic collection off to a good start with the M7 large-diaphragm condenser microphone. Condenser mics are the overwhelming choice of recording studio professionals, enabling you to capture musical details, harmonics, and subtle nuances that would get lost with dynamic mics. Large-diaphragm condenser microphones like the M7 tend to “warm up” a sound, making them go-to microphones for recording vocals and a wide range of instruments.

Includes Studio Magic Plug-in Suite

This suite of plug-ins adds a wealth of fresh sounds and effects to Studio One. Cherry-picked from the first names in virtual instruments and effects, each plug-in brings a different flavor of practical magic to your songs. These plug-ins aren't gimmicky one-trick ponies — these are real-deal workhorses that you'll rely on for countless mixes.


Specifications

Computer system requirements:

Below are the minimum computer-system requirements for ATOM with Studio One 4 or later:

Mac:

  • Mac® OS X 10.11 or higher (64-bit only)
  • Intel® Core® 2 Duo processor (Intel Core i3 or better recommended)

Windows:

  • Windows® 7 (SP1 + platform update), Windows 8.1, or Windows 10 (64-bit only)
  • Intel Core Duo or AMD® Athlon™ X2 processor (Intel Core 2 Duo or AMD Athlon X4 or better recommended)

Mac and Windows Systems:

  • 4 GB RAM (8 GB or more recommended)
  • USB 2.0 port
  • Internet connection (needed for software installation and activation)
  • Monitor with 1366 x 768 resolution (high-dpi monitor recommended)
  • 40 GB hard-drive space
  • Universal Control 2.9 or later (for firmware updates)
  • Studio One 4.1+ required for native integration

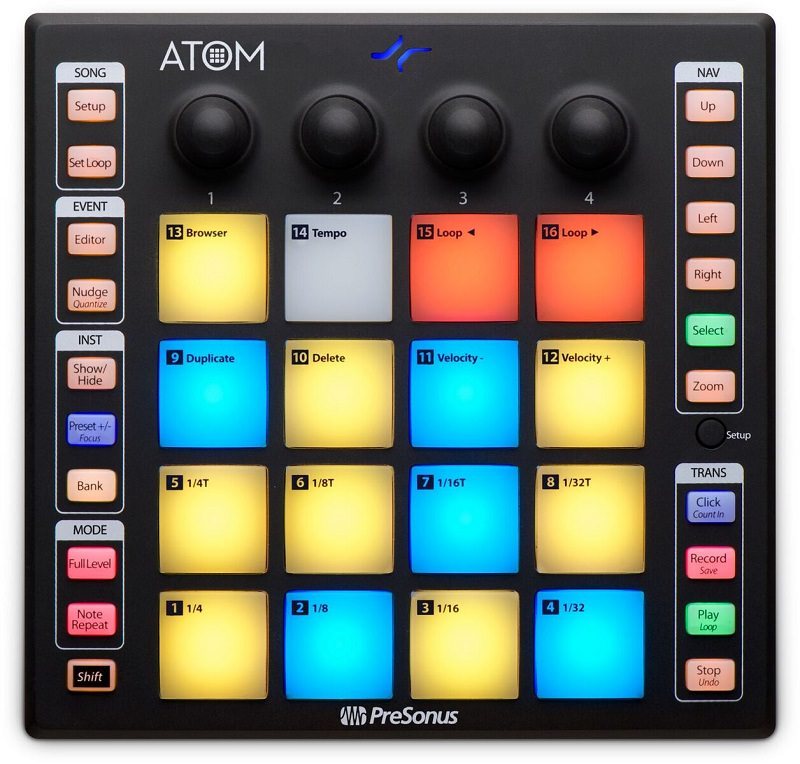

Atom Specifications

Input


Connection Type USB 2.0 (bus-powered)

Pads, Buttons, and Knobs


  16 full-size velocity- and pressure-sensitive, RGB LED pads
  20 assignable buttons
  4 endless rotary knobs
  1 Setup button

Dimensions


Height 0.82” (20.75 mm)
Depth 7.68” (195 mm)
Width 7.95” (202 mm)
Weight 1 lb. (0.45 kg)

AudioBox USB 96 Specifications

Microphone Preamp


Type XLR Female Balanced
Frequency Response (±3.0 dB) 20 Hz to 20 kHz
Input Impedance (Balanced) 1200Ω
THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) < 0.008%
S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) > 95 dB
Common Mode Rejection Ratio (1 kHz, 55 dB Gain) > 45 dB
Gain Control Range (± 1 dB) 0 dB to 35 dB
Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N) -3 dBu
Phantom Power (±2 VDC) +48 VDC

Instrument Input


Type ¼" TS Female Unbalanced
Input Impedance 0.5 MΩ

Line Output


Type ¼" Balanced
Output Impedance 51Ω

Headphone Output


Type ¼" TRS Active Stereo
Maximum Output 60 mW/Ch @ 60Ω Load
Frequency Response (±1.0 dB) 20 Hz - 30 kHz

MIDI I/O


Type Dual 5-pin Female DIN

Digital Audio


ADC Dynamic Range (A-wtd, 48 kHz Sample Rate) 105 dB
DAC Dynamic Range (A-wtd, 48 kHz Sample Rate) 105 dB
Bit Depth 24
Reference Level for 0 dBFS +4 dBu
Internal Sample Frequency Selections (kHz) 44.1, 48, 88.2, 96
Power USB 2.0 bus-powered

Physical


Dimensions 1/3U (steel chassis)
Height 5.5” (139.7 mm)
Depth 1.75" (44.45 mm)
Width 5.5” (139.7 mm)
Weight 5 lbs (2.27 kg)

M7 Microphone Specifications

General


Type Large-diaphragm condenser microphone
Element Electret
Polar Pattern Cardioid
Frequency Response 40 Hz - 18 kHz
Sensitivity -39 dBV/pa (12.2 mV/pa)
Rated Impedance 200Ω
Equivalent Input Noise (EIN) 20 dB
Maximum SPL 136 dB SPL
Phantom Power Required +12 to +52 VDC, 3 mA
S/N Ratio 74 dB
Dynamic Range 11 dB
Current Consumption 3.5 mA

Physical


Diameter 2.13" (54 mm), maximum
Length 6.69" (170 mm)
Weight 11.3 oz. (320g)

Features

ATOM Production and Performance Pad Controller

  • Tightly integrated, flexible production and performance environment with included Studio One® Artist
  • Produce, play virtual instruments, and trigger samples and loops with unsurpassed expressiveness and flexibility
  • 16 full-size velocity- and pressure-sensitive, RGB LED pads
  • Pressure switchable between MIDI aftertouch, channel pressure, and CC messages
  • 8 assignable pad banks
  • Selectable pad velocity curves and pad pressure thresholds
  • 20 assignable buttons
  • 4 endless rotary encoders
  • MIDI "keyboard" mode, Note Repeat mode, and Full Velocity mode (only send velocity 127)
  • Includes MVP Loops content custom-designed for ATOM
  • Compatible with most music production and performance software
  • USB connectivity

Studio One® Artist Production Software

  • Elegant single-window work environment
  • Powerful drag-and-drop functionality
  • Unlimited audio tracks, MIDI tracks, virtual instruments, buses, and FX channels
  • Content browser with convenient sort options and preview player
  • Most intuitive MIDI-mapping system available
  • Real-time audio time-stretching and resampling
  • Multitrack comping and MIDI editing
  • Transient detection and editing and groove extraction
  • Automatic delay compensation
  • Advanced automation
  • Instantly configures to PreSonus® controllers and interfaces, including AudioBox USB 96
  • Compatible with ASIO-, Windows Audio-, and Core Audio-compliant interfaces
  • 35 Native Effects 32-bit effects and virtual instrument plug-ins
  • 10+ GB of third-party software, loops, and instruments
  • Includes Studio Magic Plug-in Suite
  • Mac- and Windows-compatible

AudioBox® USB 96 2x2 USB 2.0 Recording System

  • Bus-powered USB 2.0 audio and MIDI interface
  • Perfect match with Studio One® Artist software for Mac®- and Windows®
  • 24-bit resolution; 44.1, 48, 88.2, and 96 kHz sampling rates
  • 2 combo mic/instrument inputs with Class A mic preamplifiers
  • 48V phantom power (for included M7 microphone or other condenser microphones)
  • Zero-latency monitoring via internal analog mixer
  • Headphone jack with level control
  • 1/3U rack-mountable
  • USB cable included for connection to computer

M7 Microphone

  • Large-diaphragm design
  • Captures far more detail than a dynamic mic
  • Mic stand adapter
  • Phantom-powered via AudioBox 96 USB
  • 9' / 3 m cable included
  • Cloth carry bag included
